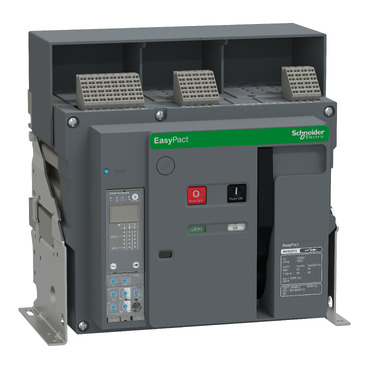

Circuit breaker, EasyPact MVS, 4000A, 3 Poles, 1140V, EF, Trip System 6.0A
-
NG # 00312-HW-SCHNEIDER-012
Manufactured by:
Specification
Range EasyPact product name MVS40T3 Device short name MVS40T3 Product or component type Circuit breaker Device application Distribution Poles description 3P Protected poles description 3P 3d [In] rated current 4000 A at 40 °C Network type AC [Ue] rated operational voltage 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 Breaking capacity code T3 Suitability for isolation Yes conforming to IEC 60947-2 Utilisation category Category B Trip unit name Trip System 6.0A Trip unit technology Electronic Trip unit rating 4000 A Network frequency 50/60 Hz control type Electrically operated Mounting mode Fixed Mounting support Rail
Base plateConnection position Horizontal Location of connection Rear [Ui] rated insulation voltage 1250 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 12 kV conforming to IEC 60947-2 Circuit breaker CT rating 4000 A Breaking capacity 66 kA Icu at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service breaking capacity 66 kA (Ics) at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 Mechanical durability 20000 cycles (with maintenance) conforming to IEC 60947-2
10000 cycles (without maintenance) conforming to IEC 60947-2Electrical durability Category B: 500 cycles 800/1140 V AC 50/60 Hz without maintenance conforming to IEC 60947-2 Connection pitch 115 mm without spreader Contact position indicator Yes [Icm] rated short-circuit making capacity 143 kA (Icm) at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 [Icw] rated short-time withstand current 66 kA at 800/1140 V AC 50/60 Hz conforming to IEC 60947-2 Trip unit protection functions LI Protection type Overload protection (long time)
Instantaneous short-circuit protectionFault indication Short-circuit
OverloadLong time pick-up adjustment type Ir Adjustable 9 settings Long time pick-up adjustment range 0.4...1 x In Long time delay adjustment type Adjustable 9 settings [tr] long-time delay adjustment range 0.5…24 s at 6 x Ir Thermal memory 20 minutes before and after tripping Short-time pick-up adjustment type Isd Adjustable 9 settings [Isd] short-time pick-up adjustment range 1.5...10 x Ir Short-time delay adjustment type Adjustable 5 settings [tsd] short-time delay adjustment range 100…400 ms Instantaneous pick-up adjustment type Ii Adjustable 9 settings Instantaneous pick-up adjustment range Off Ground-fault pick-up adjustment type Adjustable 9 settings Ground-fault time delay adjustment type -tg Adjustable 5 settings [tg] ground-fault time delay adjustment range 100…400 ms [Ig] ground-fault pick-up adjustment range 0.2...1 x In Zone selective interlocking ZSI With Display type Digital display Type of measurement Current Maximum breaking time 25 ms Maximum closing response time 70 ms Height 394.5 mm Width 422 mm Depth 297 mm Product weight 60 kg Standards IEC 60947-2 Product certifications IEC
EACPollution degree 4 conforming to IEC 60664-1 IP degree of protection IP40 Ambient air temperature for operation -5…70 °C Ambient air temperature for storage -40…85 °C without control unit
-25…85 °C with control unitUnit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 39.5 cm Package 1 Width 42.2 cm Package 1 Length 29.7 cm Package 1 Weight 60 kg
