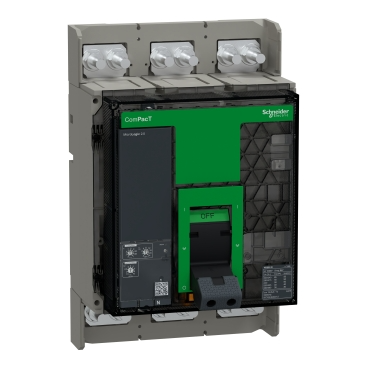

Circuit breaker, ComPacT NS1000N, 50kA at 415VAC, 3P, fixed, manually operated, MicroLogic 2.0 control unit, 1000A
-
NG # 00322-HW-SCHNEIDER-022
Manufactured by:
This circuit breaker is part of the new generation of ComPacT NS630bN to NS3200 range. ComPacT NS new generation keeps the same performances and comes with a new transparent front cover for auxiliaries visibility and a new toggle with ergonomic touch and optional LED trip status. It is possible to add as an option the new wireless auxiliary contact OF/SD in ZigBee communication protocol.
Specification
Range ComPacT product name ComPacT NS new generation Range of product ComPacT NS630b...1600 new generation Product or component type Circuit breaker Device application Distribution Number of poles 3P Protected poles description 3D (In) rated current up to 65 °C 1000 A at 50 °C [Ue] rated operational voltage 690 V AC 50/60 Hz Network type AC Network frequency 50/60 Hz Suitability for isolation Yes conforming to EN/IEC 60947-2 Utilisation category Category B [Icu] rated ultimate short-circuit breaking capacity 85 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
40 kA Icu at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2Performance level N 50 kA 415 V AC Trip unit name MicroLogic 2.0 Trip unit technology Electronic Trip unit protection functions LI control type Manually operated Mounting mode Fixed [Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity 50 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
40 kA at 500/525 V AC 50/60 Hz conforming to IEC 60947-2
30 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2[Icw] rated short-time withstand current 19.2 kA 1 s conforming to IEC 60947-2 Mechanical durability 10000 cycles Electrical durability 2000 cycles at 690 V In
4000 cycles at 690 V In/2
5000 cycles at 440 V In
6000 cycles at 440 V In/2Power losses 22 W Mounting support Backplate Upside connection Front Downside connection Front Connection pitch 70 mm Protection type L : for overload protection (long time)
I : for instantaneous short-circuit protectionTrip unit rating 1000 A at 50 °C Long-time pick-up adjustment type Ir (thermal protection) Adjustable 9 settings [Ir] long-time protection pick-up adjustment range 0.4...1 x In Long-time protection delay adjustment type tr Adjustable 9 settings [tr] long-time protection delay adjustment range 12.5…600 s at 1.5 x Ir
0.5…24 s at 6 x Ir
0.7…16.6 s at 7.2 x IrThermal memory 20 mn Instantaneous protection pick-up adjustment type Ii Adjustable [Ii] instantaneous protection pick-up adjustment range 1.5...10 x Ir Earth-leakage protection Without Zone selective interlocking ZSI Without Auxiliary contact composition 1 NO/NC Local signalling 4 LEDs (red) for fault indication
1 LED (yellow) for overloadWidth (W) 210 mm Height (H) 327 mm Depth (D) 147 mm Product weight 14 kg Standards EN/IEC 60947-2 Product certifications IECEE CB Scheme Pollution degree 3 conforming to IEC 60947 IP degree of protection IP40 conforming to IEC 60529 IK degree of protection IK07 conforming to EN 50102 Ambient air temperature for operation -25…70 °C Ambient air temperature for storage -50…85 °C Relative humidity 0…95 % Operating altitude 0...2000 m without derating
2000 m...5000 m with deratingUnit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 30.000 cm Package 1 Width 40.000 cm Package 1 Length 60.000 cm Package 1 Weight 12.442 kg
Description
This ComPacT NS1000N is a complete 3 poles circuit breaker designed to optimize space and breaking capacity. It is a fixed circuit breaker manually operated. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 50kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. The circuit breaker can be manually operated with ON, OFF or "push to trip" buttons. This product embeds an electronic MicroLogic 2.0 control unit, with 1000A rating. MicroLogic 2.0 control unit provides adjustable long time and instantaneous protections (ANSI codes 49/50). This product comes with a variety of optional functions and accessories. The dimensions are 327mm (Heigh) x 210mm (Width) x 147mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS new generation is part of Schneider Electric EcoStruxure Power architecture. ComPacT NS new generation is more sustainable with green packaging and green partnerships.
