SPS 3000 ADV RT2 B1 Uninterruptible Power Systems (UPS)
00274-HW-SAL-074
Overview

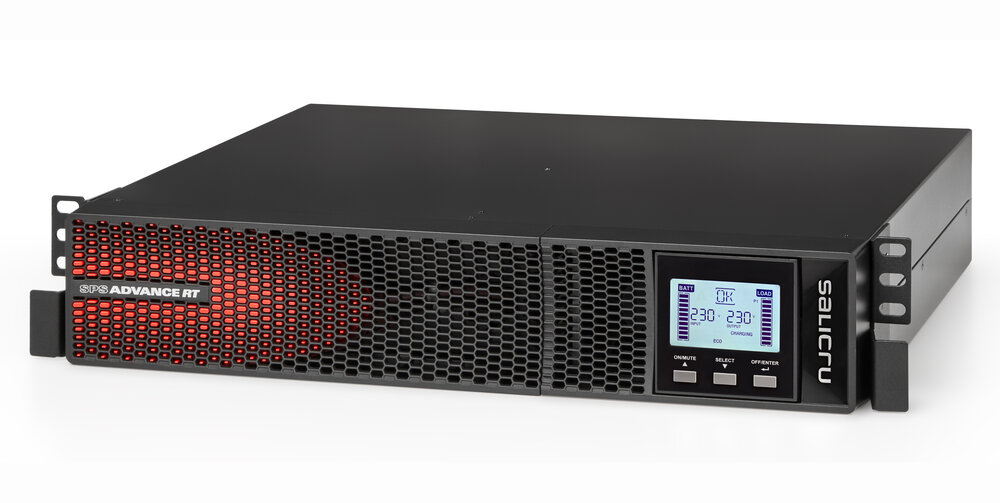

The Salicru SPS 3000 ADV RT2 B1 is a powerful Uninterruptible Power System (UPS) featuring 3000 VA line-interactive sine-wave technology, designed to deliver robust and stable power protection for entry-level servers, networking infrastructure, and critical IT equipment.
| TECHNOLOGY | Line-interactive |
| FORMAT | Convertible tower/rack (2U) |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage range 100% load | 170 ÷ 280 V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Fuse (800/1100) or resettable thermal cutoff (1500/2000/3000) |
| Power factor | 0.9 |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage accuracy (battery mode) | ±1.5% |
| Power (VA/W) | 3000 / 2700 |
| Total harmonic distortion (THDv) | < 2% linear load / < 5% non-linear load |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±0.1Hz |
| Admissible overloads in battery mode | < 120% off at 1 min / < 150% off at 10 s |
| Admissible overloads in-line mode | < 120% off at 5 min / < 150% off at 10 s / >150 %: 1 s |

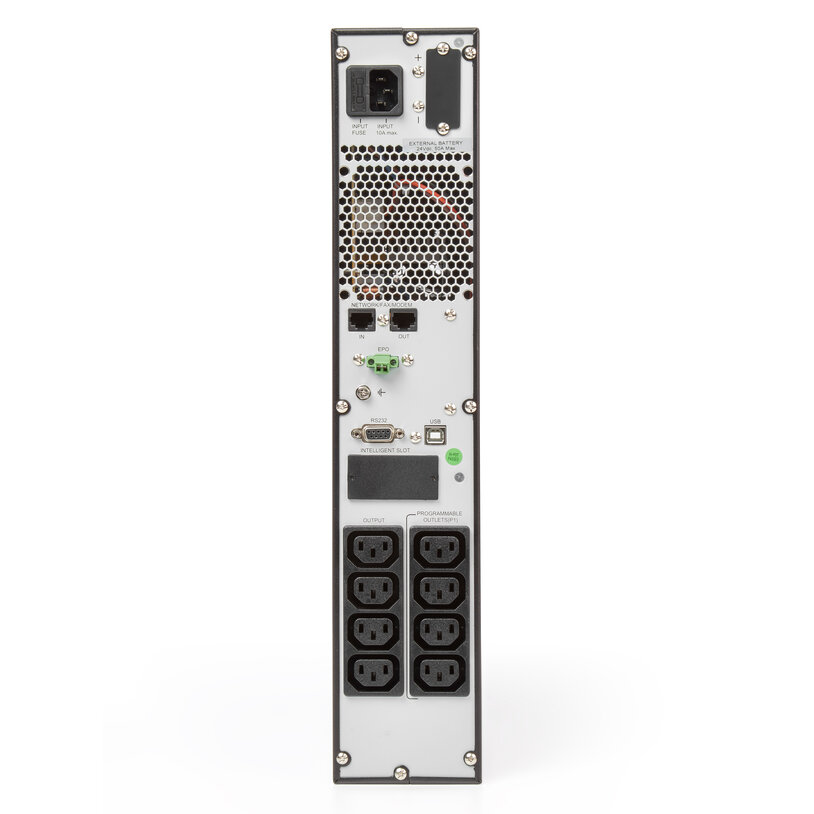

| Socket type | IEC |
| No. Of sockets | 8 + 1 |
| Programmable sockets | Yes, for critical / non-critical loads (4/4) |
| Battery type | Not included, Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| Battery test | Automatic on every start + one x week |
| Temperature voltage compensation | Yes |
| Ports | RS-232/USB-HID |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Type | LCD + keypad |
| Values | Voltage, power and input and output frequency / Battery voltage / % battery charge / % load / Operating mode / Fault / Discharge time / Mute |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Output battery mode, polarity, low battery (back up time), charger failure and overload |
| Audible | Every 10 s for battery operation. Every 2 s for low battery / Polarity. Every 1 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| ADSL/fax/modem transient protector | Yes |
| Green-function | Yes, automatic stop in battery mode with load <5% |
| Smart fan speed | Yes, smart control of fan speed |
| Site wiring fault | Yes, error detection of phase-neutral rotation and/or absence of earth |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 meter | < 45dB |
| Safety | EN IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN IEC 62040-2 (C2) |
| Operation | EN IEC 62040-3 |
| Corporate certification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 630 |
| Width (mm) | 438 |
| Height (mm) | 88 |
| Weight (kg) | 11.9 |

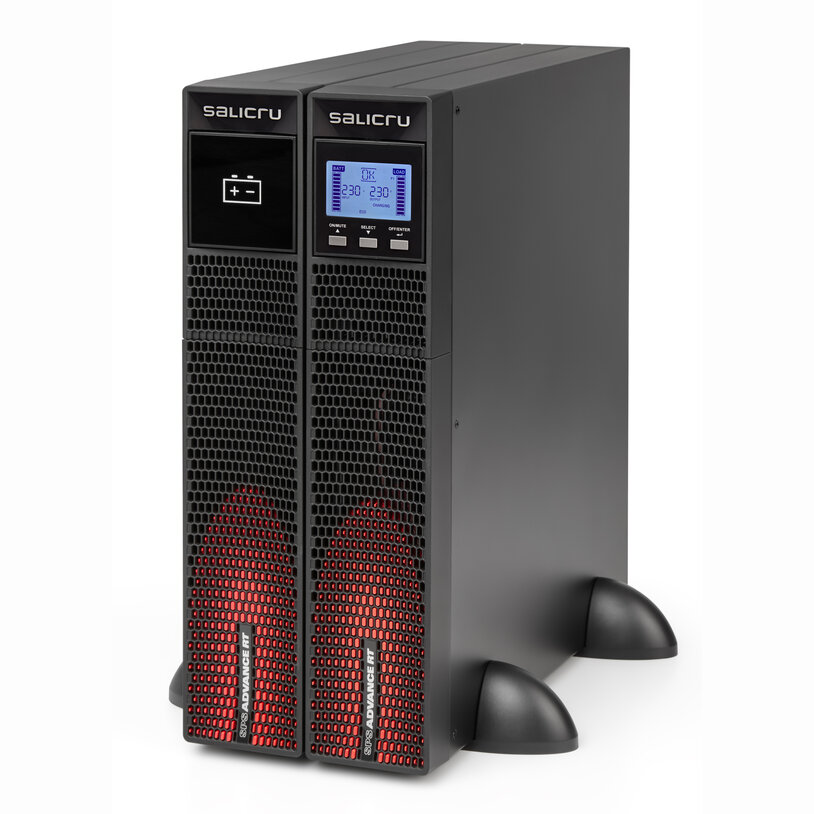

With its tower/rack convertible design, it offers versatile installation options to meet various business and IT requirements. This UPS provides effective protection against power surges, voltage fluctuations, and outages, ensuring seamless operation and data integrity for essential systems. Its line-interactive architecture enhances voltage regulation and optimizes energy efficiency, while the pure sine-wave output ensures reliable performance for sensitive electronic devices. The Salicru SPS 3000 ADV RT2 B1 is an ideal choice for medium-sized IT networks, office setups, and mission-critical applications requiring dependable and uninterrupted power backup.
