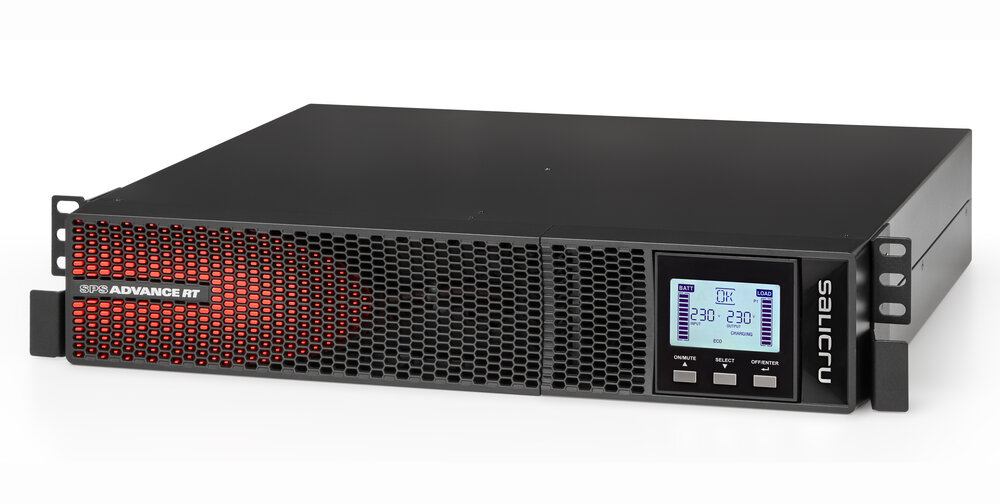

Salicru SPS 800 ADV RT2 B1 Uninterruptible Power Systems (UPS)
00270-HW-SAL-070
Overview
The Salicru SPS 800 ADV RT2 B1 is a reliable Uninterruptible Power System (UPS) built with 800 VA line-interactive sine-wave technology, offering efficient and stable power backup for entry-level servers, networking devices, and essential IT equipment.
| TECHNOLOGY | Line-interactive |

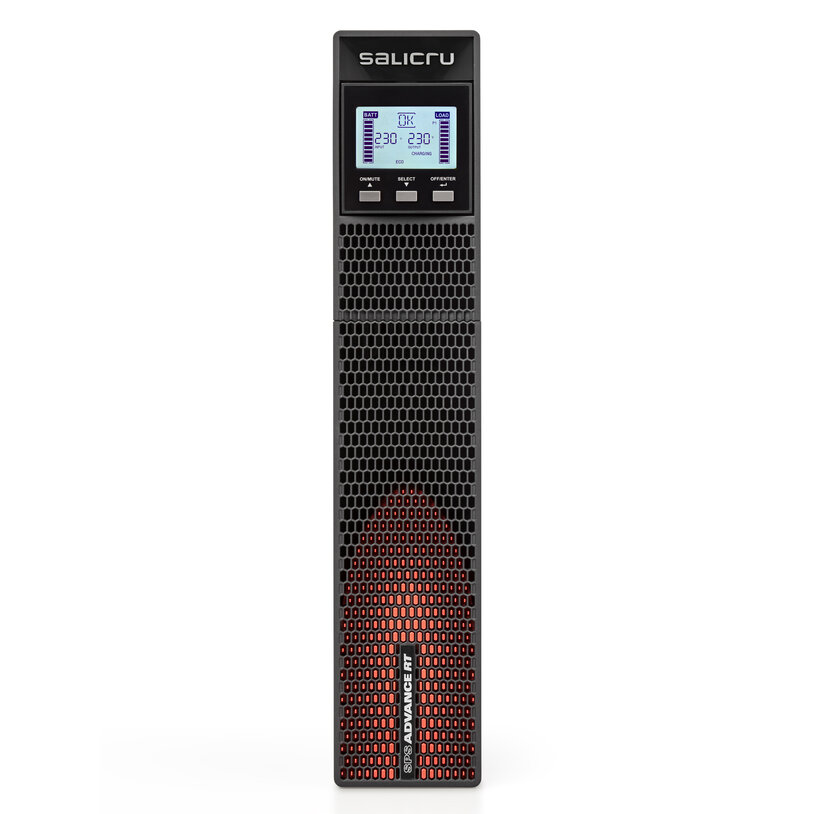

| FORMAT | Convertible tower/rack (2U) |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage range 100% load | 170 ÷ 280 V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Fuse (800/1100) or resettable thermal cutoff (1500/2000/3000) |
| Power factor | 0.9 |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage accuracy (battery mode) | ±1.5% |
| Power (VA/W) | 3000 / 2700 |
| Total harmonic distortion (THDv) | < 2% linear load / < 5% non-linear load |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±0.1Hz |
| Admissible overloads in battery mode | < 120% off at 1 min / < 150% off at 10 s |
| Admissible overloads in-line mode | < 120% off at 5 min / < 150% off at 10 s / >150 %: 1 s |

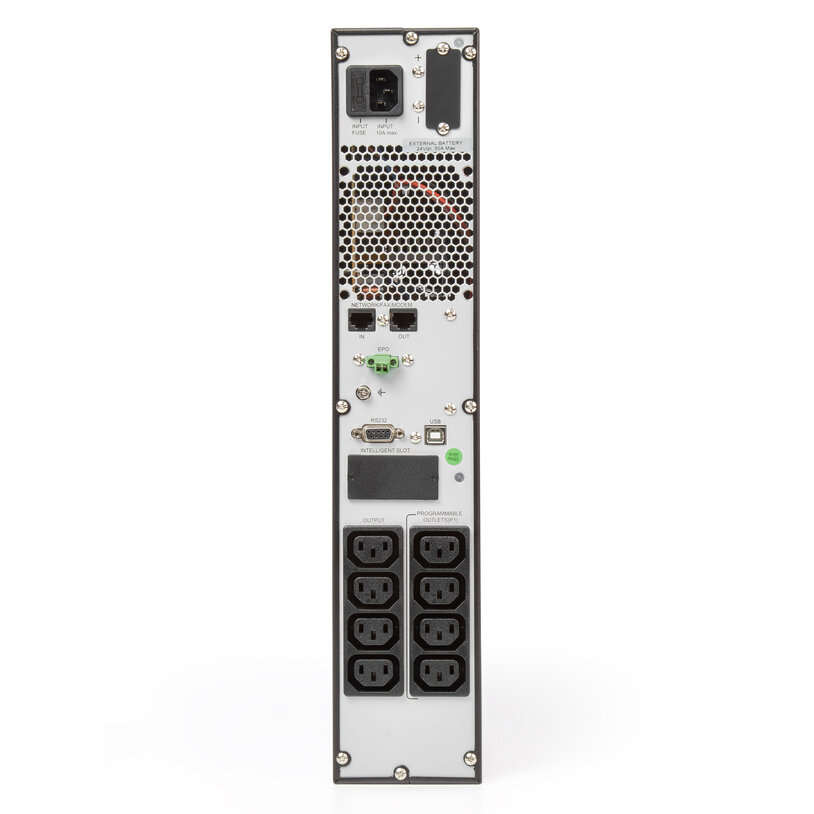

| Socket type | IEC |
| No. Of sockets | 8+1 |
| Programmable sockets | Yes, for critical / non-critical loads (4/4) |
| Battery type | Not included, Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| Battery test | Automatic on every start + one x week |
| Temperature voltage compensation | Yes |
| Ports | RS-232/USB-HID |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |

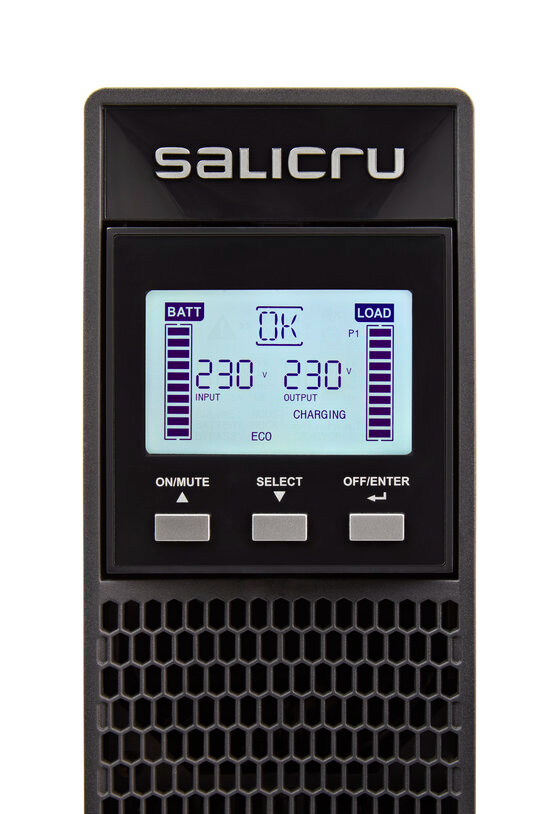

| Type | LCD + keypad |
| Values | Voltage, power and input and output frequency / Battery voltage / % battery charge / % load / Operating mode / Fault / Discharge time / Mute |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Output battery mode, polarity, low battery (back up time), charger failure and overload |
| Audible | Every 10 s for battery operation. Every 2 s for low battery / Polarity. Every 1 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| ADSL/fax/modem transient protector | Yes |
| Green-function | Yes, automatic stop in battery mode with load <5% |
| Smart fan speed | Yes, smart control of fan speed |
| Site wiring fault | Yes, error detection of phase-neutral rotation and/or absence of earth |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 meter | < 45dB |
| Safety | EN IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN IEC 62040-2 (C2) |
| Operation | EN IEC 62040-3 |
| Corporate certification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 410 |
| Width (mm) | 438 |
| Height (mm) | 88 |
| Weight (kg) | 9 |
Its tower/rack convertible design ensures flexible installation in diverse IT and office environments. This UPS provides effective protection against power disturbances, surges, and unexpected outages, helping to safeguard data and maintain uninterrupted operations. With its line-interactive architecture, it optimizes voltage regulation and enhances energy efficiency, while the pure sine-wave output ensures compatibility with sensitive electronics. The Salicru SPS 800 ADV RT2 B1 is an excellent choice for small-scale IT setups, workstations, and business networks that require dependable backup power and continuous performance support.
