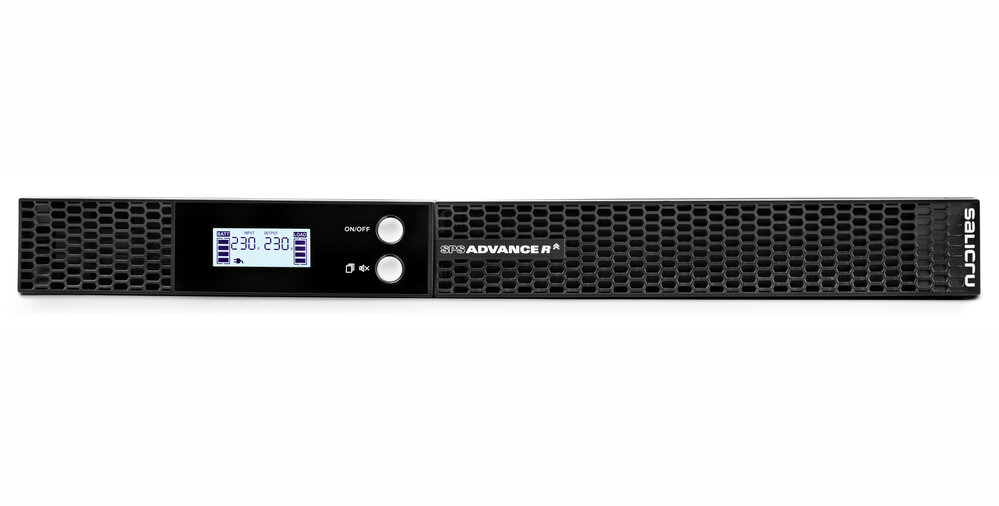

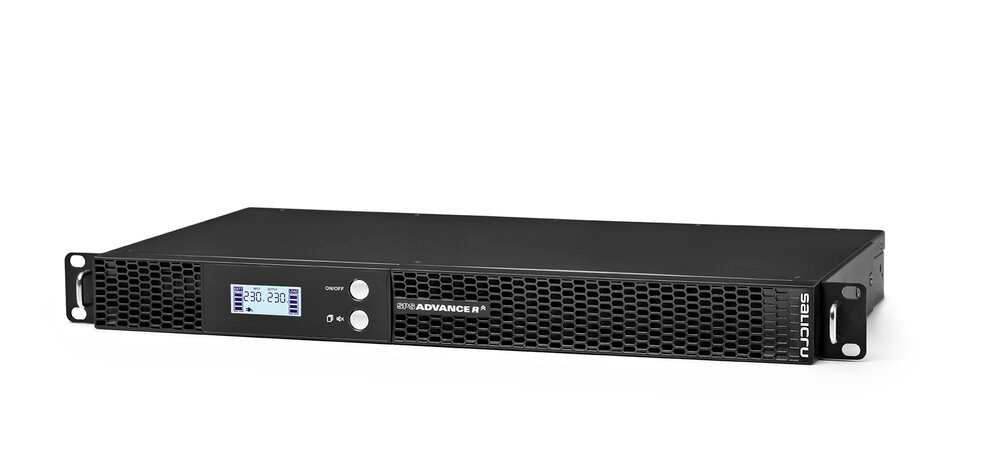

Salicru SPS 750 ADV R line-interactive sine-wave Uninterruptible Power Systems (UPS) 1U rack
00262-HW-SAL-062
Overview
The Salicru 750 VA Line-Interactive Sine-Wave Uninterruptible Power Supply (UPS) – 1U Rack is a high-density, space-saving power protection solution designed for critical IT infrastructure requiring compact integration. Featuring line-interactive technology with Automatic Voltage Regulation (AVR), it efficiently stabilizes voltage fluctuations and delivers a pure sine-wave output, ensuring reliable power for sensitive electronic devices.
| TECHNOLOGY | Line-interactive |
| FORMAT | Rack 1U |
| Rated voltage | 230 V |
| Voltage range 100% load | 165 ÷ 290V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Fuse |
| Rated voltage | 230 V |
| Voltage accuracy (battery mode) | ±10% |
| Power (VA/W) | 750 / 450 |
| Total harmonic distortion (THDv) | <5% linear load / <10% non-linear load |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±1 Hz |
| Compatibility with APFC loads | Yes (1) |
| Performance Stabiliser mode (AVR) | >92% |
| Performance Battery mode | >80% |
| Performance in mains mode | >95% |
| Admissible overloads in battery mode | 110% for 1 min / 130% immediate |
| Admissible overloads in-line mode | 110% for 1 min / 130% immediate |
| Socket type | IEC C13 |
| No. Of sockets | 4 |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| User replaceable battery | Yes |
| Battery test | Automatic on each start-up + manual |
| Ports | RS-232 / DB9 |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Type | LCD + keypad |
| Values | Input and output voltage / % load / % battery / backup |
| Levels | Connected load / overload / battery / low battery |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Battery / low battery / overload / failure |
| Audible | Every 30 s for battery operation. Every 2 s for low battery / Polarity. Every 0,5 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maxium operating altitude | 2,400 masl |
| Acoustic noise at 1 metre | <40 dB |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2(C2) |
| Operation | EN 62040-3 |
| Corporate certification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 216 |
| Width (mm) | 433 |
| Height (mm) | 44 |
| Weight (kg) | 8.4 |
With its 750 VA capacity, this UPS is ideal for network cabinets, communication systems, small servers, and professional IT setups, offering reliable backup power during outages to prevent downtime, data loss, and equipment damage. The 1U rack design provides high-density power protection without consuming excessive rack space, making it perfect for environments with limited installation areas.
