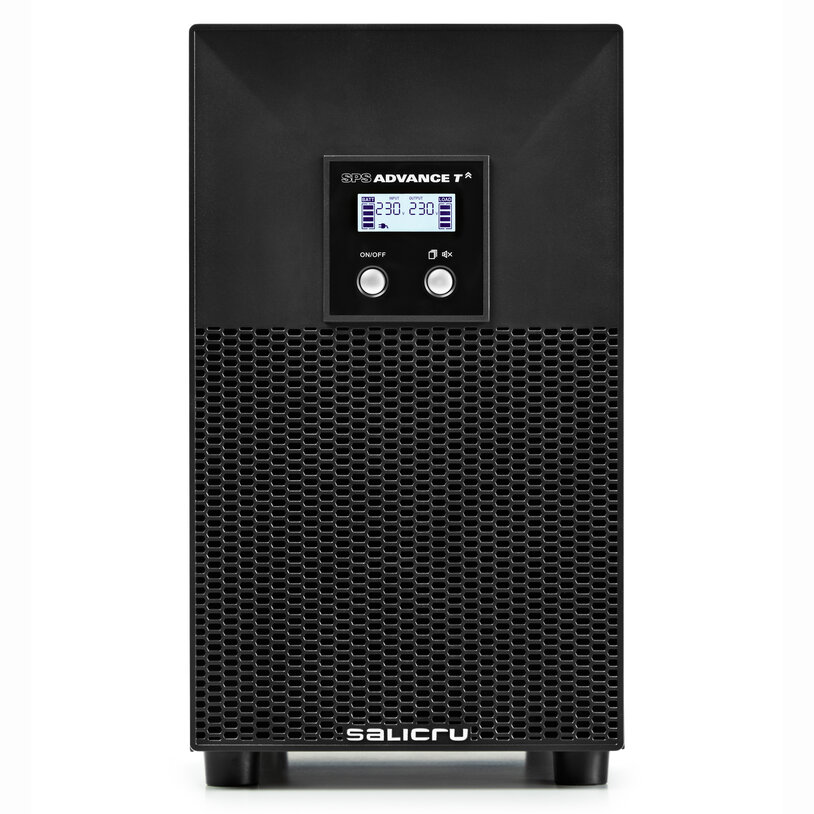

Salicru SPS 3000 ADV T B1 Line-interactive sine-wave Uninterruptible Power Systems (UPS) tower
00261-HW-SAL-061
Overview
The Salicru SPS 3000 ADVANCE T B1 – 3000 VA Line-Interactive Sine-Wave Uninterruptible Power Supply (UPS) Tower is a high-capacity, reliable power protection solution designed for computer rooms, servers, and critical IT infrastructure. With line-interactive technology and Automatic Voltage Regulation (AVR), it provides continuous voltage stabilization, compensating for sags and surges while delivering a pure sine-wave output compatible with sensitive and high-demand electronic equipment.
| TECHNOLOGY | Line-interactive |
| FORMAT | Tower |
| Rated voltage | 230 V |
| Voltage range 100% load | 165 ÷ 290 V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Resettable breaker |
| Rated voltage | 230 V |
| Voltage accuracy (battery mode) | ±10% |
| Power (VA/W) | 3000 / 2700 |
| Total harmonic distortion (THDv | <5% |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±1 Hz |
| Compatibility with APFC loads | Yes (1) |
| Performance Stabiliser mode (AVR) | >92% |
| Performance Battery mode | >80% |
| Admissible overloads in battery mode | 110% for 1 min / >130% immediate |
| Admissible overloads in-line mode | 110% 1min / 120% immediate |
| Socket type | IEC C13 + terminals |
| No. Of sockets | 4 |
| Battery type | Not included, Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| Battery test | Automatic on each start-up + manual |
| Ports | RS-232 / USB (HID) |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Type | LCD + keypad |
| Values | Input and output voltage / % load / % battery / backup |
| Levels | Connected load / overload / battery / low battery |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Battery / low battery / overload / failure |
| Audible | Every 30 s for battery operation. Every 2 s for low battery / Polarity. Every 0,5 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maxium operating altitude | 2,400 masl |
| Acoustic noise at 1 metre | <45 dB (2) |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2 |
| Operation | EN 62040-3 |
| Corporate cerification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 416 |
| Width (mm) | 196 |
| Height (mm) | 342 |
| Weight (kg) | 22.2 |
Boasting a 3000 VA capacity, this UPS is ideal for medium to large IT environments, data centers, and professional workstations, providing uninterrupted power to prevent data loss, downtime, and hardware damage. Its tower format allows seamless placement in office or technical environments, while advanced surge protection and intelligent battery management extend the life of both the internal battery and connected devices.
