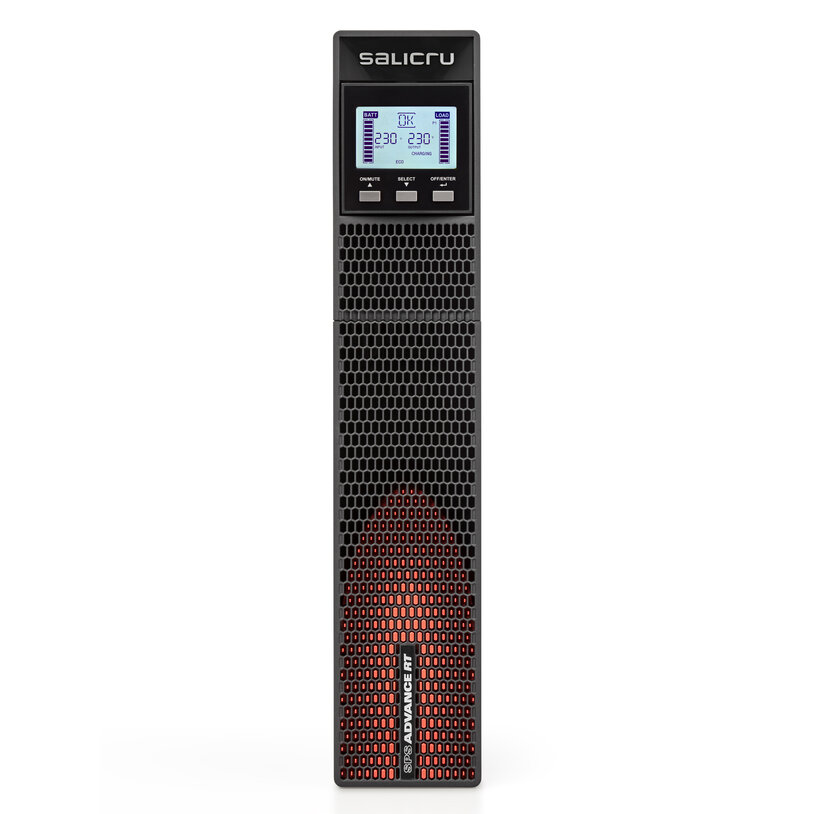

Salicru SPS 1500 ADV RT2 Uninterruptible Power Systems (UPS)
00267-HW-SAL-067
Overview
The Salicru SPS 1500 ADV RT2 is a robust Uninterruptible Power System (UPS) engineered with 1500 VA line-interactive sine-wave technology to ensure stable and reliable power protection for entry-level servers, networking equipment, and critical IT systems.
| TECHNOLOGY | Line-interactive |

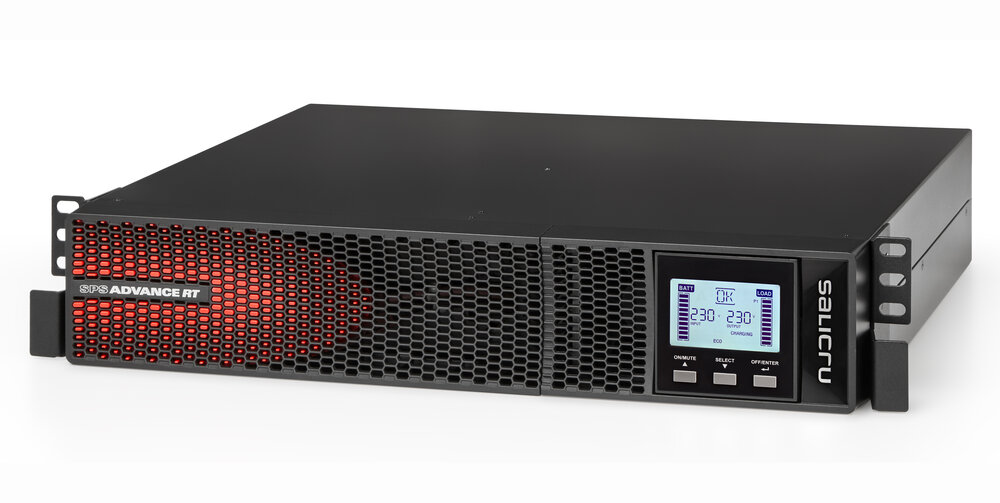

| FORMAT | Convertible tower/rack (2U) |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage range 100% load | 170 ÷ 280 V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Fuse (800/1100) or resettable thermal cutoff (1500/2000/3000) |
| Power factor | 0.9 |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage accuracy (battery mode) | ±1.5% |
| Power (VA/W) | 1500 / 1350 |
| Total harmonic distortion (THDv) | < 2% linear load / < 5% non-linear load |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±0.1Hz |
| Admissible overloads in battery mode | < 120% off at 1 min / < 150% off at 10 s |
| Admissible overloads in-line mode | < 120% off at 5 min / < 150% off at 10 s / >150 %: 1 s |
| Socket type | IEC |
| No. Of sockets | 8 |
| Programmable sockets | Yes, for critical / non-critical loads (4/4) |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| Battery test | Automatic on every start + one x week |
| Temperature voltage compensation | Yes |
| Ports | RS-232/USB-HID |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |

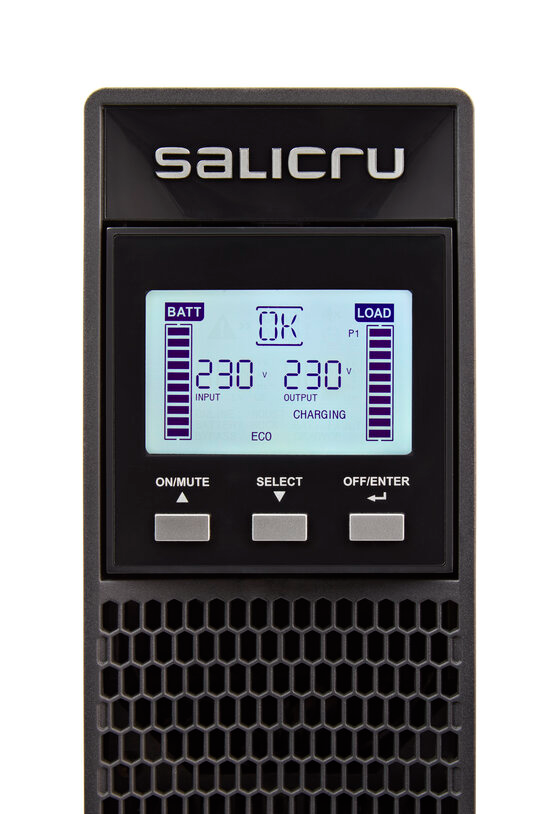

| Type | LCD + keypad |
| Values | Voltage, power and input and output frequency / Battery voltage / % battery charge / % load / Operating mode / Fault / Discharge time / Mute |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Output battery mode, polarity, low battery (back up time), charger failure and overload |
| Audible | Every 10 s for battery operation. Every 2 s for low battery / Polarity. Every 1 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| ADSL/fax/modem transient protector | Yes |
| Green-function | Yes, automatic stop in battery mode with load <5% |
| Smart fan speed | Yes, smart control of fan speed |
| Site wiring fault | Yes, error detection of phase-neutral rotation and/or absence of earth |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 meter | < 45dB |
| Safety | EN IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN IEC 62040-2 (C2) |
| Operation | EN IEC 62040-3 |
| Corporate certification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 510 |
| Width (mm) | 438 |
| Height (mm) | 88 |
| Weight (kg) | 19.5 |
Designed with a flexible tower/rack format, it offers adaptable installation options to meet diverse infrastructure requirements. This UPS delivers effective safeguarding against power fluctuations, surges, and outages, ensuring uninterrupted operation and data protection for essential systems. With its line-interactive design, the SPS 1500 ADV RT2 enhances energy efficiency and voltage regulation, while its pure sine-wave output ensures seamless compatibility with sensitive electronic devices. Ideal for small to medium-scale IT environments, office networks, and business-critical applications, it provides dependable backup power with advanced performance and reliability.
