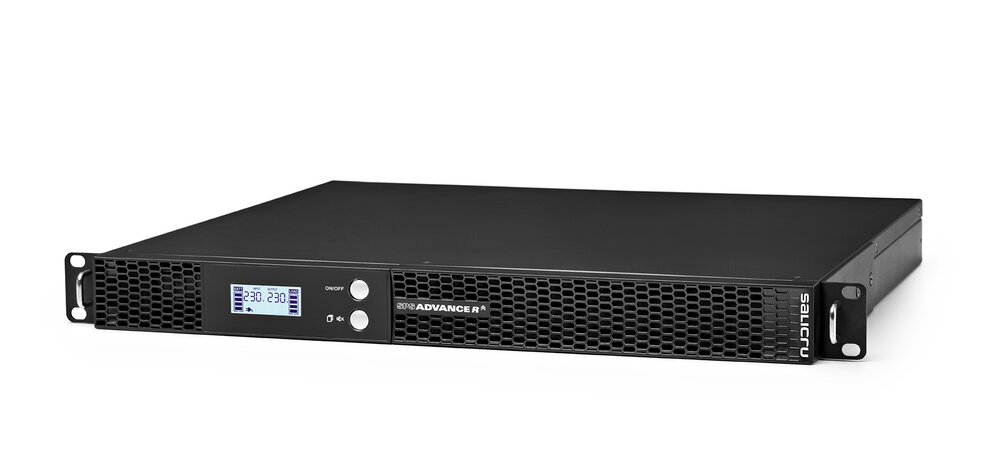

Salicru SPS 1500 ADV R Line-interactive sine-wave Uninterruptible Power Systems (UPS) 1U rack
00264-HW-SAL-064
Overview
The Salicru 1500 VA Line-Interactive Sine-Wave Uninterruptible Power Supply (UPS) – 1U Rack is a high-density, space-saving power backup solution designed for IT and telecommunications environments requiring compact integration without compromising performance. Utilizing line-interactive technology with Automatic Voltage Regulation (AVR), it ensures stable voltage levels and delivers a pure sine-wave output, protecting sensitive devices and ensuring continuous, high-quality power.
| TECHNOLOGY | Line-interactive |
| FORMAT | Rack 1U |
| Rated voltage | 230 V |
| Voltage range 100% load | 165 ÷ 290V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Fuse |
| Rated voltage | 230 V |
| Voltage accuracy (battery mode) | ±10% |
| Power (VA/W) | 1500 / 900 |
| Total harmonic distortion (THDv) | <5% linear load / <10% non-linear load |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±1 Hz |
| Compatibility with APFC loads | Yes (1) |
| Performance Stabiliser mode (AVR) | >92% |
| Performance Battery mode | >80% |
| Performance in mains mode | >95% |
| Admissible overloads in battery mode | 110% for 1 min / 130% immediate |
| Admissible overloads in-line mode | 110% for 1 min / 130% immediate |

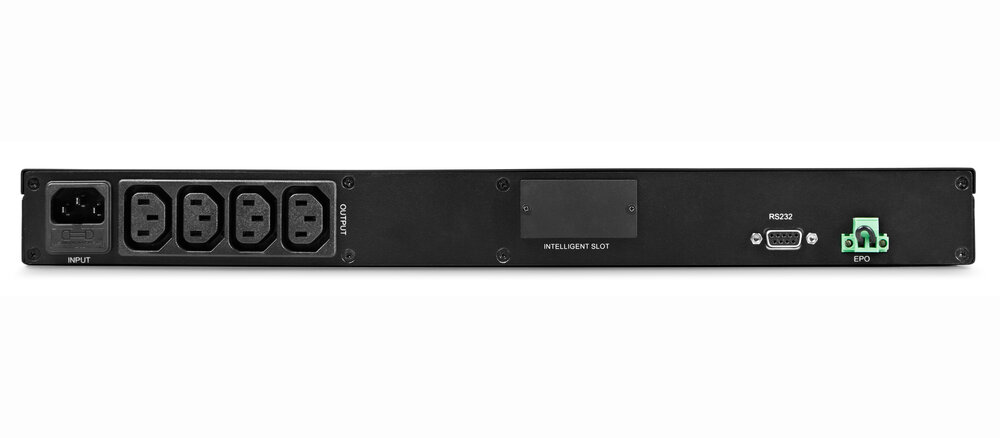

| Socket type | IEC C13 |
| No. Of sockets | 4 |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| User replaceable battery | Yes |
| Battery test | Automatic on each start-up + manual |
| Ports | RS-232 / DB9 |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Type | LCD + keypad |
| Values | Input and output voltage / % load / % battery / backup |
| Levels | Connected load / overload / battery / low battery |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Battery / low battery / overload / failure |
| Audible | Every 30 s for battery operation. Every 2 s for low battery / Polarity. Every 0,5 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maxium operating altitude | 2,400 masl |
| Acoustic noise at 1 metre | <40 dB |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2(C2) |
| Operation | EN 62040-3 |
| Corporate certification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 485 |
| Width (mm) | 433 |
| Height (mm) | 44 |
| Weight (kg) | 15.8 |
With its 1500 VA capacity, this UPS is ideal for network servers, communication systems, rack-mounted IT setups, and small data centers, providing reliable backup during power outages to prevent downtime, data loss, and hardware failures. The 1U rack format offers optimal space utilization in high-density installations where rack space is at a premium.
