Salicru SPS 1100 ADV RT2 Uninterruptible Power Systems (UPS)
00266-HW-SAL-066
Overview

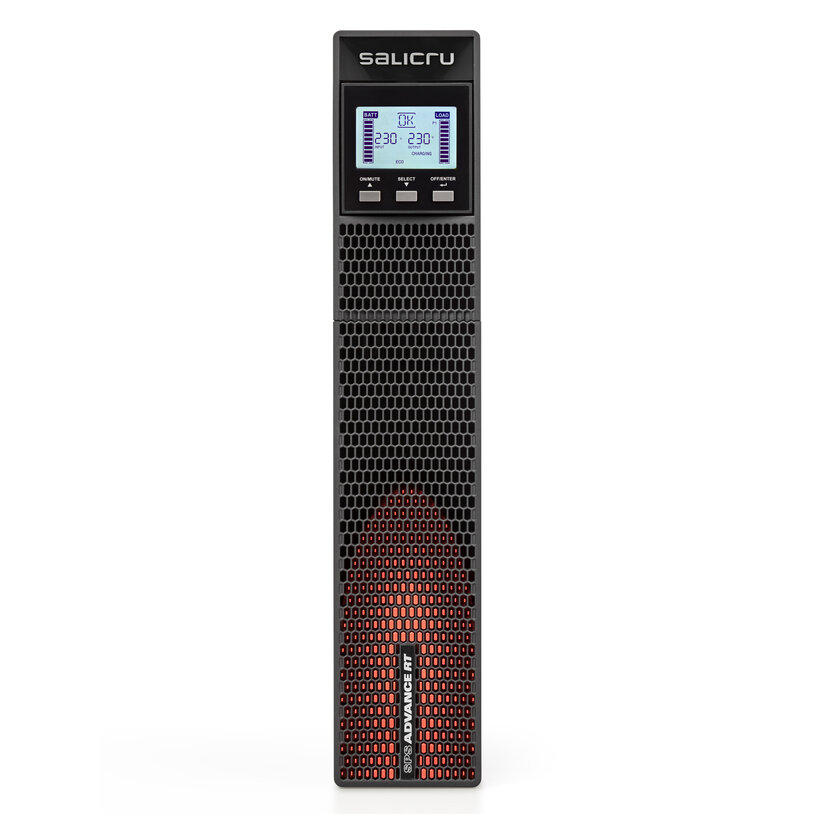

The Salicru SPS 1100 ADV RT2 is a high-performance Uninterruptible Power System (UPS) designed with 1100 VA line-interactive sine-wave technology to deliver reliable and stable power protection for entry-level servers and essential IT equipment. Featuring a versatile tower/rack format, it offers flexible installation options to suit diverse infrastructure needs.
| TECHNOLOGY | Line-interactive |

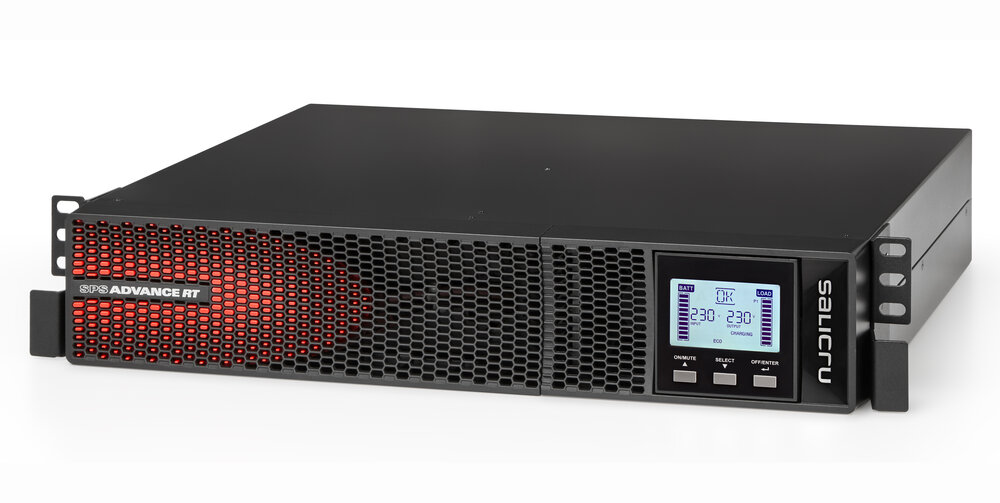

| FORMAT | Convertible tower/rack (2U) |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage range 100% load | 170 ÷ 280 V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Fuse (800/1100) or resettable thermal cutoff (1500/2000/3000) |
| Power factor | 0.9 |
| Rated voltage | 208 / 220 / 230 / 240 V |
| Voltage accuracy (battery mode) | ±1.5% |
| Power (VA/W) | 1100 / 990 |
| Total harmonic distortion (THDv) | < 2% linear load / < 5% non-linear load |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±0.1Hz |
| Admissible overloads in battery mode | < 120% off at 1 min / < 150% off at 10 s |
| Admissible overloads in-line mode | < 120% off at 5 min / < 150% off at 10 s / >150 %: 1 s |

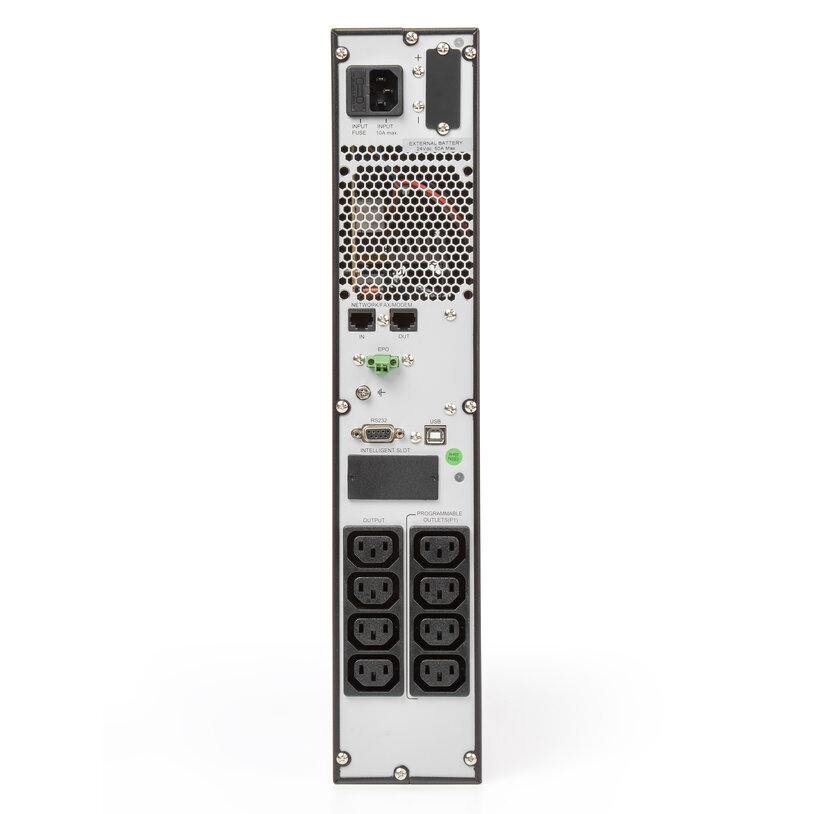

| Socket type | IEC |
| No. Of sockets | 8 |
| Programmable sockets | Yes, for critical / non-critical loads (4/4) |
| Battery type | Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| Battery test | Automatic on every start + one x week |
| Temperature voltage compensation | Yes |
| Ports | RS-232/USB-HID |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |

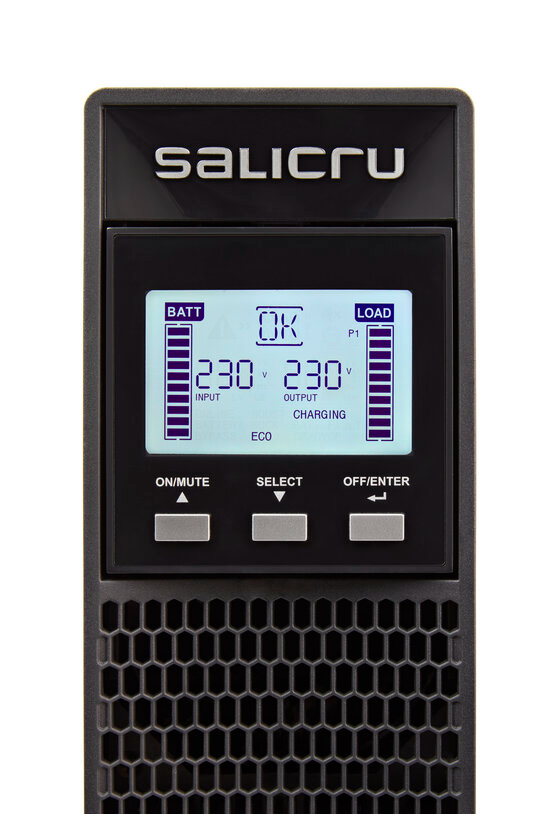

| Type | LCD + keypad |
| Values | Voltage, power and input and output frequency / Battery voltage / % battery charge / % load / Operating mode / Fault / Discharge time / Mute |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Output battery mode, polarity, low battery (back up time), charger failure and overload |
| Audible | Every 10 s for battery operation. Every 2 s for low battery / Polarity. Every 1 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| ADSL/fax/modem transient protector | Yes |
| Green-function | Yes, automatic stop in battery mode with load <5% |
| Smart fan speed | Yes, smart control of fan speed |
| Site wiring fault | Yes, error detection of phase-neutral rotation and/or absence of earth |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 meter | < 45dB |
| Safety | EN IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN IEC 62040-2 (C2) |
| Operation | EN IEC 62040-3 |
| Corporate certification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 410 |
| Width (mm) | 438 |
| Height (mm) | 88 |
| Weight (kg) | 13.4 |
This UPS provides effective protection against voltage fluctuations, power surges, and unexpected outages, ensuring data integrity and uninterrupted operation of critical systems. With its line-interactive design, the SPS 1100 ADV RT2 optimizes energy efficiency and enhances power conditioning, while the pure sine-wave output supports sensitive electronic devices with precision. It is an ideal choice for small to medium-sized IT setups, network devices, and business workstations requiring dependable backup power and seamless performance.
