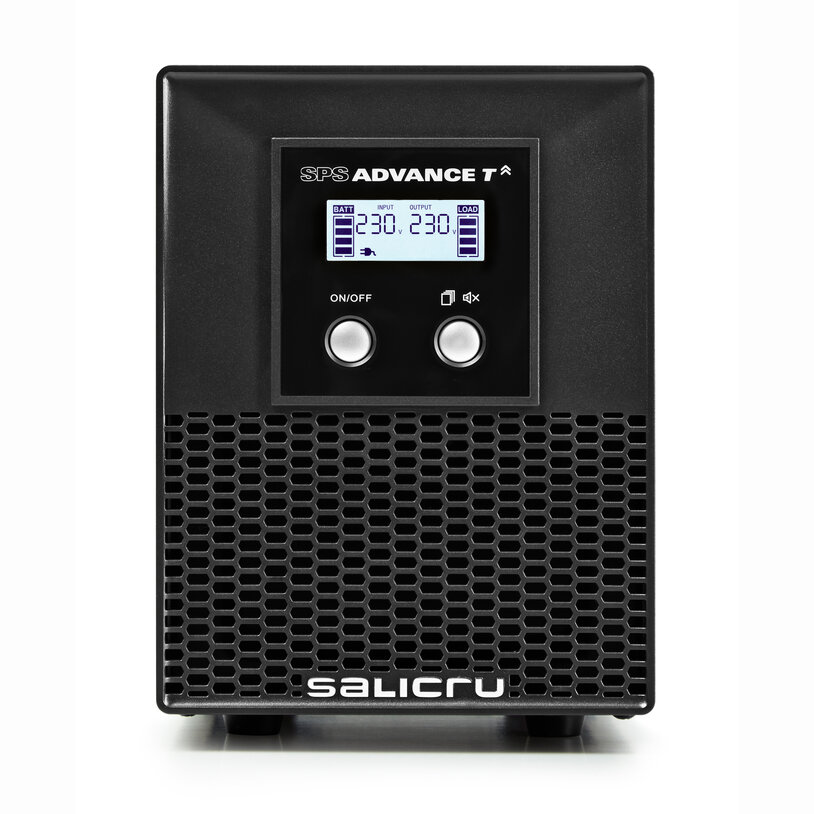

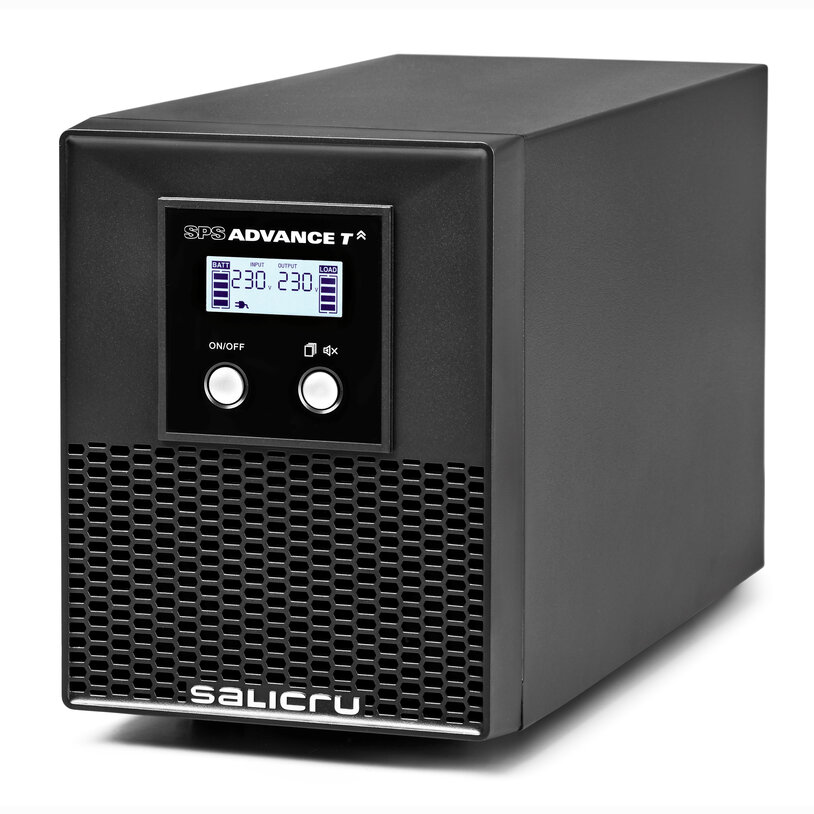

Salicru SPS 1000 ADVANCE T B1– 1000 VA Line-interactive sine-wave Uninterruptible Power Systems (UPS) tower
00258-HW-SLA-058
Overview
The Salicru SPS 1000 ADVANCE T B1 – 1000 VA Line-Interactive Sine-Wave Uninterruptible Power Supply (UPS) Tower provides reliable, high-quality power protection specifically designed for computer rooms, servers, and essential IT infrastructure. Utilizing line-interactive technology, it delivers stable voltage through Automatic Voltage Regulation (AVR) while offering a pure sine-wave output to ensure safe and optimal performance of sensitive electronic devices.
| TECHNOLOGY | Line-interactive |
| FORMAT | Tower |
| Rated voltage | 230 V |
| Voltage range 100% load | 165 ÷ 290 V |
| Stabiliser | AVR (Buck & Boost) |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±5 Hz |
| Auto~detection of frequency | Yes |
| Protection | Resettable breaker |
| Rated voltage | 230 V |
| Voltage accuracy (battery mode) | ±10% |
| Power (VA/W) | 1000 / 700 |
| Total harmonic distortion (THDv | <5% |
| Waveform (battery mode) | Pure sine wave |
| Frequency | 50/60 Hz (same as input) |
| Frequency accuracy (battery mode) | ±1 Hz |
| Compatibility with APFC loads | Yes (1) |
| Performance Stabiliser mode (AVR) | >92% |
| Performance Battery mode | >80% |
| Admissible overloads in battery mode | 110% for 1 min / >130% immediate |
| Admissible overloads in-line mode | 110% 1min / 120% immediate |
| Socket type | IEC C13 |
| No. Of sockets | 6 |
| Battery type | Not included, Pb-Ca sealed, AGM, maintenance-free |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 4 hours to 90% |
| Battery test | Automatic on each start-up + manual |
| Ports | RS-232 / USB (HID) |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Type | LCD + keypad |
| Values | Input and output voltage / % load / % battery / backup |
| Levels | Connected load / overload / battery / low battery |
| Operating modes | Normal / Stabilisation (AVR) / Battery / Fault |
| Alarm | Battery / low battery / overload / failure |
| Audible | Every 30 s for battery operation. Every 2 s for low battery / Polarity. Every 0,5 s for overcharge. Continuous for fault. |
| Failure | Display LCD |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maxium operating altitude | 2,400 masl |
| Acoustic noise at 1 metre | <45 dB (2) |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2 |
| Operation | EN 62040-3 |
| Corporate cerification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 327 |
| Width (mm) | 140 |
| Height (mm) | 191 |
| Weight (kg) | 8.2 |
With its 1000 VA capacity, this UPS is suitable for small to medium-sized computer rooms, networking devices, and workstations, protecting them from power interruptions, surges, and voltage fluctuations. The tower configuration allows easy placement and integration within office or IT environments, while its surge protection and intelligent battery management system enhance operational reliability and extend battery life.
