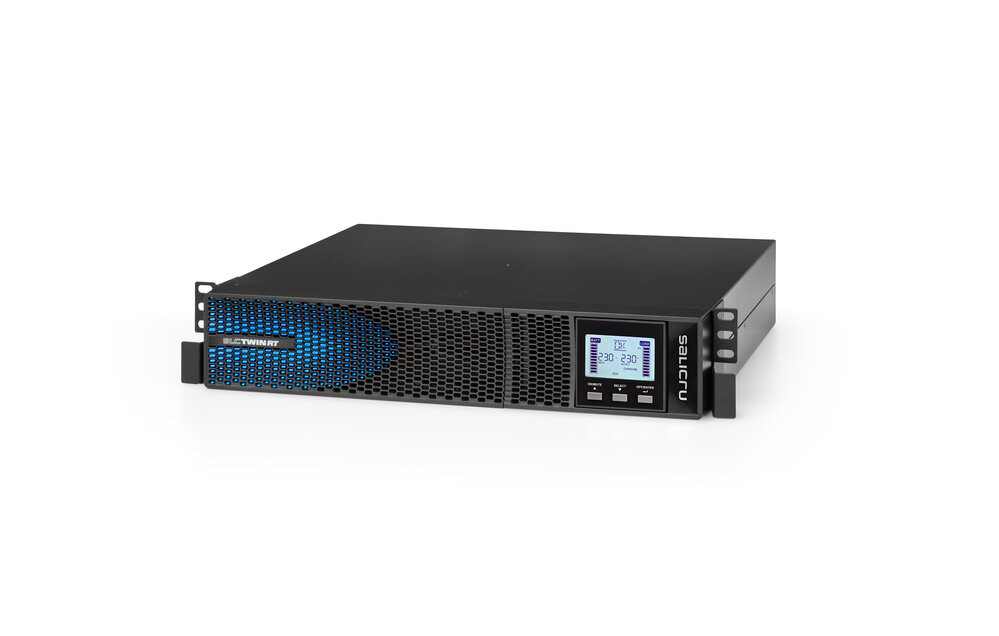

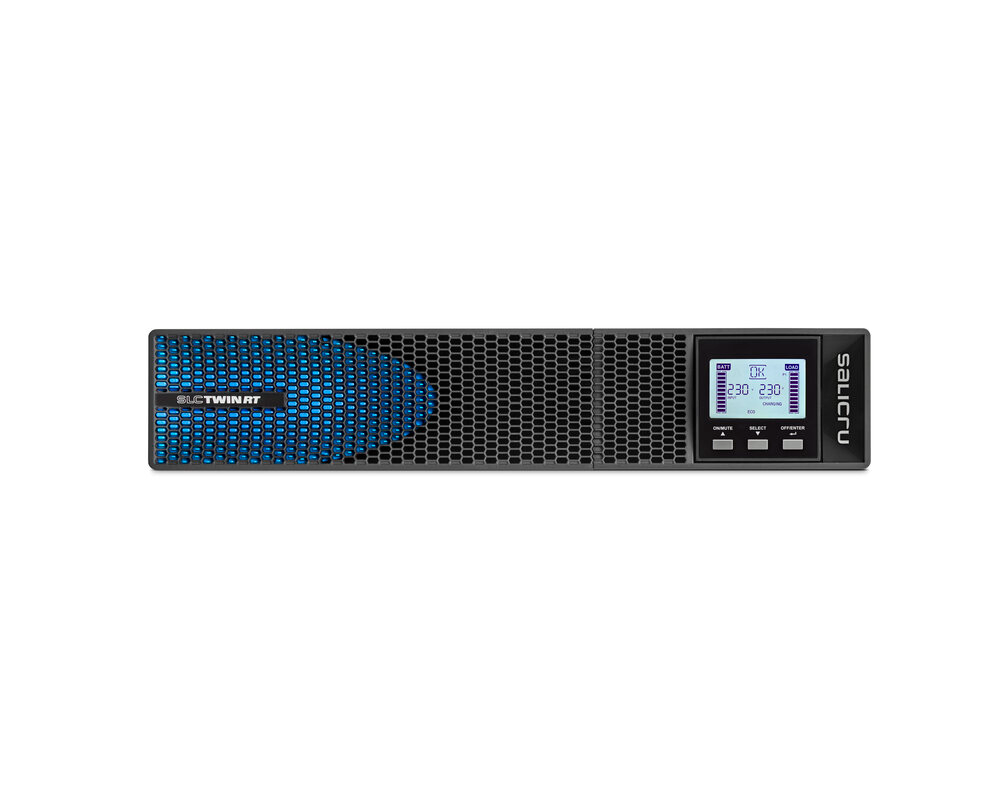

Salicru SLC-1000-TWIN RT2 LION Uninterruptible Power Systems On-line (UPS)
00278-HW-SAL-078
Overview
The Salicru SLC-1000-TWIN RT2 LION is an advanced Uninterruptible Power System (UPS) featuring 1000 VA on-line double-conversion technology with integrated lithium-ion batteries, designed to provide maximum protection density for critical IT and business environments. Its tower/rack convertible design ensures flexible installation, making it suitable for data centers, server rooms, and essential infrastructure.
| TECHNOLOGY | On-line double-conversion |
| FORMAT | Convertible tower/rack |
| Rated voltage | 230 V |
| Rated frequency | 50 / 60 Hz (auto-detection) |
| Frequency range | ±10 Hz |
| Total harmonic distortion (THDi) | 5% |
| Auto~detection of frequency | Yes |
| Power factor | 0.9 |
| Waveform | Pure sine wave |
| Rated voltage | 200 / 208 / 220 / 230 / 240 V(2) |
| Voltage accuracy (battery mode) | ±1% |
| Power (VA/W) | 1000 / 900 |
| Total harmonic distortion (THDv) | < 2% linear load / < 4% non-linear load |
| Synchronised frequency | ±3 Hz |
| Free running frequency | ±0,1 Hz |
| Frequency | 50 / 60 Hz |
| On-line performance | ≥90 ÷ 91% |
| Eco-mode performance | ≥96 ÷ 97% |
| Admissible overloads | < 130% for 5 min / < 140% for 30 s / <150 % for 1.5 s / 150 % for 100 ms |

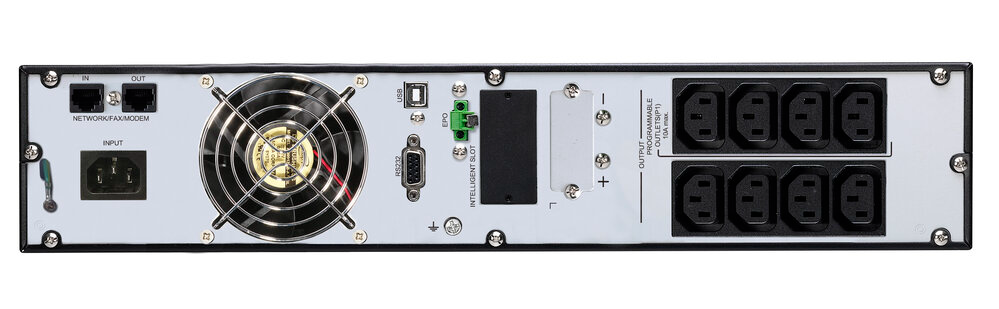

| No. Of sockets | 8 |
| Programmable sockets | Yes, for critical / non-critical loads (4/4) |
| Rated voltage | 230 V |
| Frequency range | 50/60Hz ±3 Hz |
| Battery type | LiFePO4 |
| Charge type | I/U (constant current/constant voltage) |
| Recharge time | 3 hours to 100% |
| Ports | USB-HID / RS-232 |
| Intelligent slot | Slot for SNMP/potential-free contacts/ MODBUS |
| Monitoring software | For Windows, Linux and Mac |
| Type | LCD + keypad |
| Cold start (start-up from batteries) | Yes |
| Emergency stop (EPO) | Yes |
| ADSL/fax/modem transient protector | Yes |
| Frequency converter (CVCF) | Yes(3) |
| Operating temperature | 0º C ÷ 40º C |
| Relative humidity | Up to 95%, non-condensing |
| Maximum operating altitude | 2,400 masl (power degradation up to 5,000 m) |
| Acoustic noise at 1 metre | < 50 dB |
| Safety | EN-IEC 62040-1 |
| Electromagnetic compatibility (EMC) | EN 62040-2(C2) |
| Operation | VFI-SS-11 (EN-62040-3) |
| Corporate cerification | ISO 9001, ISO 14001, ISO 45001 |
| Depth (mm) | 410 |
| Width (mm) | 438 |
| Height (mm) | 88 |
| Weight (kg) | 10.8 |
The on-line double-conversion architecture offers continuous, high-quality power by isolating connected equipment from all types of power disturbances, including surges, voltage fluctuations, and outages. The use of lithium-ion batteries ensures longer lifespan, reduced maintenance, and faster recharge compared to traditional battery technologies. The Salicru SLC-1000-TWIN RT2 LION is ideal for high-demand IT systems, telecommunications, and industrial applications where maximum uptime, efficiency, and power quality are critical.
