Salicru On-line UPS SLC ADAPT
00252-HW-SLA-052
Overview

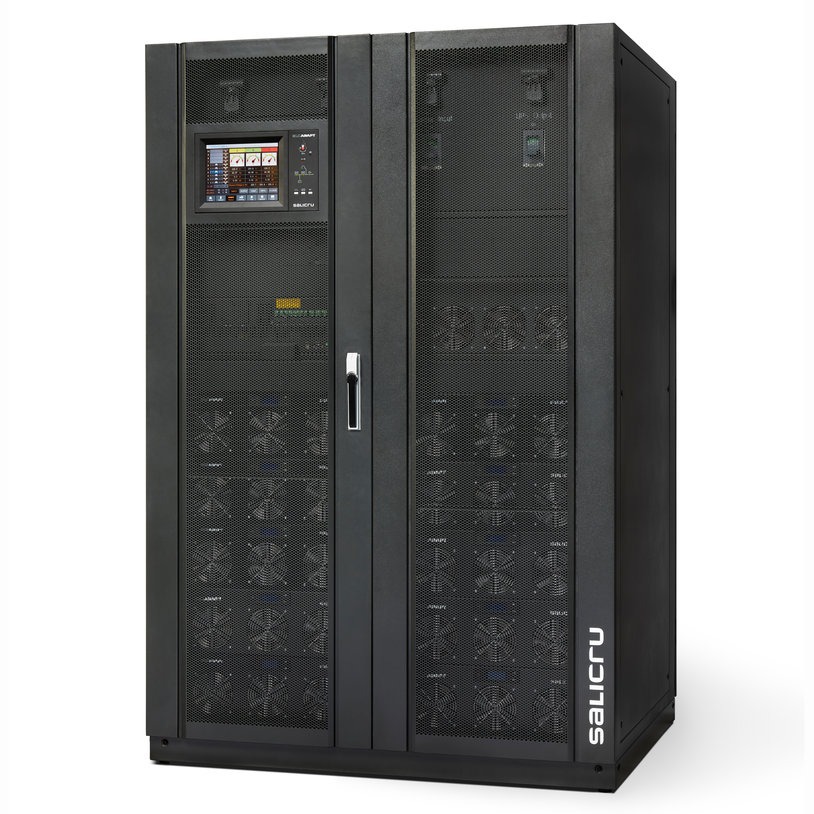

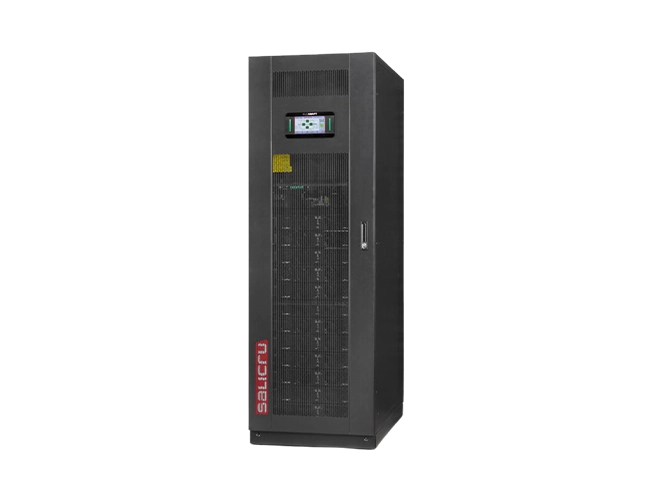

Salicru’s SLC ADAPT series consists of modular On-line double conversion uninterruptible power supply (UPS) solutions with DSP control and three-level IGBT inverter technology.
| Type | on-line, double-conversion |
| Electrical characteristics | three-phase |
| Applications | industrial |
| Other characteristics | modular, with built-in battery, redundant |
| Output power kVA | Max.: 300 kVA (407.89 hp) Min.: 25 kVA (33.99 hp) |
| Input voltage | 380 V, 400 V, 415 V |
| Output voltage | 380 V, 400 V, 415 V |
| Power | Max.: 270,000 W Min.: 2,500 W |
It enables solutions to be configured from 25 kVA to 1500 kVA, thanks to the range of modules available (25, 30 and 50 kVA), different configurable systems (6, 8, 10 or 12 modules) and the parallel/redundant option of up to three 500 kVA systems. It also provides increased protection as needs grow - pay as you grow - thereby improving total cost of ownership (TCO). Its hot-swap modules can be added or replaced during operation, thereby improving mean time to repair (MTTR) and reducing maintenance costs. In addition, the system’s remote management, which can be integrated into any platform, also facilitates operation. And the extensive back-up options available, along with intelligent battery charging, ensure continuous operation of the protected critical loads.
