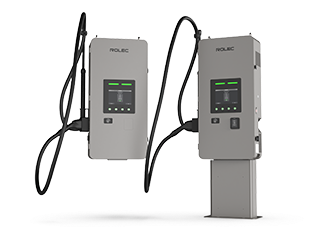

Rolec ULTRACHARGE 40 Intelligent rapid EV charging station
-
NG # 006309-HW-ATEN-009
Manufactured by:
This
seller generally responds in under 48 hours
An intelligent and cost-effective DC charging station, providing up to 40kW charging speeds. Ideal for businesses that require an efficient rapid EV charging solution for their customers and/or fleet.
Specification
- Plug & go, mobile app, or RFID controlled charging
- Offers 1x DC charging output
- Up to 40kW charging speeds
- OCPP 1.6 compliant, OCPP 2.0.1 (future) – integrates with any CPMS
- Over-the-air firmware and software
- Built-in 30mA Type A RCD protection
- Supports static and dynamic load management
- 10.1" HD user interface screen
- 4G / Wi-Fi / Ethernet connectivity
- ≥ 96% Peak efficiency
- Ultrawide power output voltage range 150V – 1000V
- Under/overvoltage, DC overcurrent, over-temp & surge protection
- 5m 150A rated charging cable capable of delivering 40kW (133A)charge rate to a standard 400V vehicle
- Cable management system as standard
- Optional 7m cable also available
- Optional RFID / NFC / contactless card payment terminal
- Optional mounting pedestal available
- Conforms with PAS 1899 accessible charging standard
- Strong and durable IP54 / IK10 rated
Description
The compact design maximises space limitations, whilst still easy to install, maintain and service. With a cable management system as standard, and a 10.1" HD user interface screen, the UltraCharge 40 is easy-to-use and meets PAS 1899 accessible standards.
