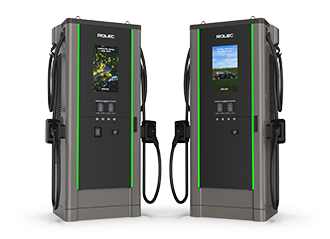

Rolec ULTRACHARGE 180 Intelligent ultra-rapid EV charging station
-
NG # 006311-HW-ATEN-011
Manufactured by:
This
seller generally responds in under 48 hours
This intelligent modular and scalable DC ultra-rapid charging station is a futureproof and cost-effective solution for public, fleet, marina and highway infrastructure deployment.
Specification
- Plug & go, mobile app, or RFID controlled charging
- Offers 2x DC charging outputs
- Up to 180kW charging speeds
- Upgradeable power modules
- OCPP 1.6 compliant, OCPP 2.0.1 (future) - integrates with any CPMS
- Over-the-air firmware, software and advertising updates
- Built-in 30mA Type A RCD protection
- Intelligent dynamic power sharing
- Supports static and dynamic load management
- 10.1" HD user interface screen & 21.5" advertising screen
- 4G / Wi-Fi / Ethernet connectivity
- 95% Peak efficiency
- Ultrawide power output voltage range 150V – 1000V
- Under/overvoltage, DC overcurrent, over-temp & surge protection
- 5m 350A Peak and 250A Nominal charging cables, capable of delivering 140kW charge rate to a standard 400V vehicle
- Cable management system as standard
- Optional 7m cables also available
- Optional RFID / NFC / contactless card payment terminal
- Conforms with PAS 1899 accessible charging standard
- Strong and durable IP54 / IK10 rated
Description
Available in three standard power configurations; 180kW, and 150kW and 120kW versions which can be upgraded in the future with the simple addition of extra 30kW power modules. Designed with installers and chargepoint owner / operators in mind, these chargers are easy to install, maintain and service.
