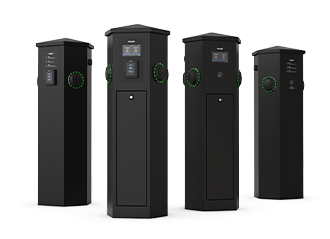

Rolec HEX Intelligent EV charging pedestal
-
NG # 006307-HW-ATEN-007
Manufactured by:
This
seller generally responds in under 48 hours
Engineered for demanding environments, the HEX pedestal features a robust steel enclosure and delivers up to 22kW charging to 4 vehicles simultaneously. The quad outlet model is perfect for centrally located bays, minimising groundworks and streamlining installation. Ideal for workplace, commercial, and public car parks.
Specification
- Plug & go, app, contactless payment (model dependent), or
- RFID controlled charging
- Choose from 2x or 4x universal charging socket(s)
- Up to 7.4kW or 22kW charging output(s)
- PME fault detection (no earth rod required)
- Supports dynamic load balancing & static load management
- OCPP 1.6 compliant (integrates with any CPMS)
- Over-the-air firmware / software updates
- Built-in AC overload & fault current protection (RCBO)
- Built-in 6mA DC leakage protection
- Dual tamper and breach security notifications
- Lockable front access door(s)
- 5” LCD Screen (model dependant)
- Cable lock security feature (can be permanently locked by owner)
- LED amenity down lighting (Photocell controlled)
- MID-approved energy metering
- 4G / Wi-Fi / Ethernet connectivity
- Conforms with PAS 1899 accessible charging standard
- Strong and durable IP54 / IK10 rated
- Surface or root mountable
- OZEV grant fundable (UK only)
- Designed & manufactured in the UK
Description
Effortless integration with any OCPP chargepoint management system, this unit is an ideal plug-and-go or pay-to-charge solution.
