Rockwell automation SmartGuard 600 Safety Controllers with Safety
-
NG # 006910-HW-ROCKWELL-010
Manufactured by:

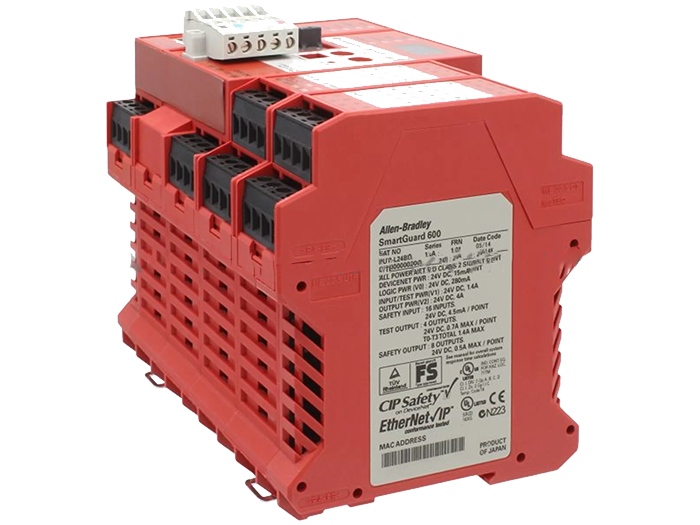

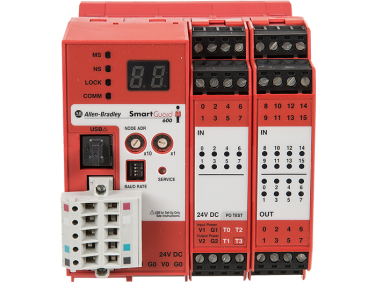

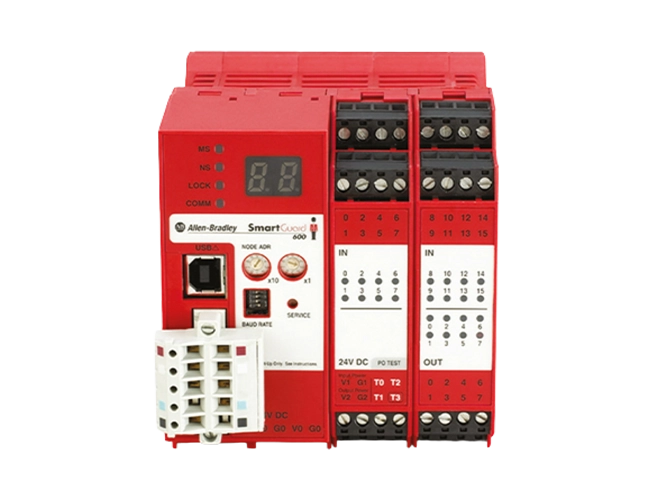

The SmartGuard™ 600 Controllers with Safety include 16 safety-rated inputs, 8 safety-rated outputs, 4 pulse test sources, and the option for an EtherNet/IP™ port.
Specification
- Ideal for mid-level safety applications that are too complex for safety relays, yet too simple for full-sized safety PLCs
- Integrates with Guard I/O™ modules to expand the number of safety devices you can control
- Provides data to standard PLCs and HMIs through EtherNet/IP™ or DeviceNet™
- Lets you configure and program through RSNetWorx™ for DeviceNet software (required for EtherNet/IP controller)
Description
SmartGuard™ 600 Controllers with Safety feature 16 safety-rated inputs, 8 safety-rated outputs, 4 pulse test sources and an optional EtherNet/IP™ port. Each controller also includes a DeviceNet™ connection to support both standard CIP and CIP safety.
You can configure and program on EtherNet/IP, on DeviceNet or through the built-in USB port. These small, cost-effective intelligent controllers can perform safety interlocking between GuardLogix® or other SmartGuard safety controllers.
