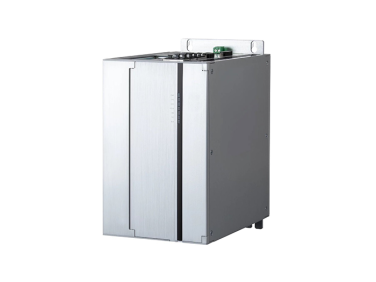

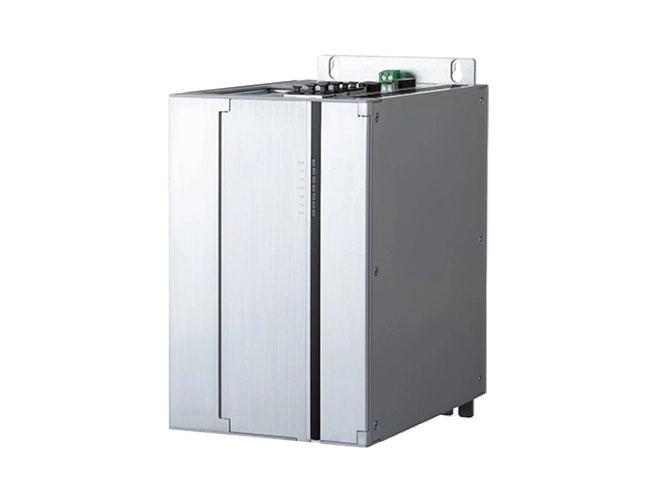

Rockwell automation Rockwellautomation ASEM 6300B Box PC
-
NG # 006901-HW-ROCKWELL-001
Manufactured by:
The ASEM 6300B and 6300P industrial computers now feature a preinstalled ThinManager-ready BIOS, streamlining the process of integrating a new computer into your ThinManager environment right out of the box.
Specification
Operating system Microsoft Windows 10 IoT Enterprise LTSC 2019 64 bit Processor Intel Atom x7-3950 1.6 GHz (2.0 GHz Burst), 4 cores/4 threads, 2 MB L2 cache) Video controller Intel HD Graphics 505 integrated in x7-3950, 500/650 MHz System memory - RAM 4 GB/8 GB, LP-DDR4 - 2400 (soldered) Mass storage M.2 size 2242 key B SSD SATA III (up to 240 GB) LAN 2 x Ethernet 10/100/1000 Mbps (Intel I210, RJ45) USB Single DisplayPort - 2 x USB 3.0 (Type-A) / Dual DisplayPort - 4 x USB 3.0 (Type-A) Video output 1 x DisplayPort or 2 x DisplayPort (model dependent) Audio output Standard 3.5mm audio output jack (Only available on Dual Display model) Power 24V DC (18...32V DC) isolated Mounting DIN rail mount, wall mount (single Display Port model) Case material Aluminum alloy Operating temperature 0...50 °C (32…122 °F) Storage temperature -10...+60 °C (14…140 °F) Approvals Humidity 80% (non-condensing)
Description
The ThinManager console downloads all of the necessary application firmware and software without the need for Pre-Execution (PXE) or DHCP infrastructure. Just change the boot order on the new computer, define its IP address, and boot it into ThinManager. With over 100,000 configurations to choose from, the built-in ThinManager-ready BIOS is an industry exclusive. Plus, you’ll have guaranteed support from Rockwell Automation for your entire ThinManager system.
Our ASEM 6300B PC book mount units are compact and lightweight, yet powerful making them ideal for HMI, Industrial Internet of Things (IIoT) gateway and data logging applications. Additionally, these units are available in fanless construction, which is optimal for applications requiring low maintenance. Fan-cooled units will be offered for industrial operations in which additional cooling may be required. Configure to order options are available.
