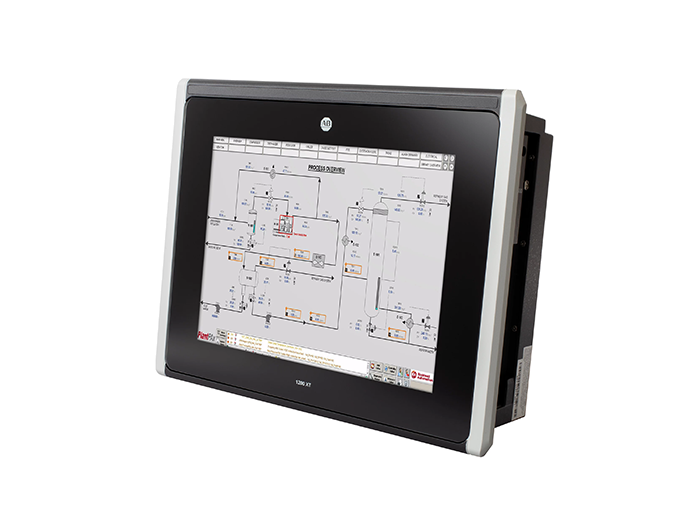

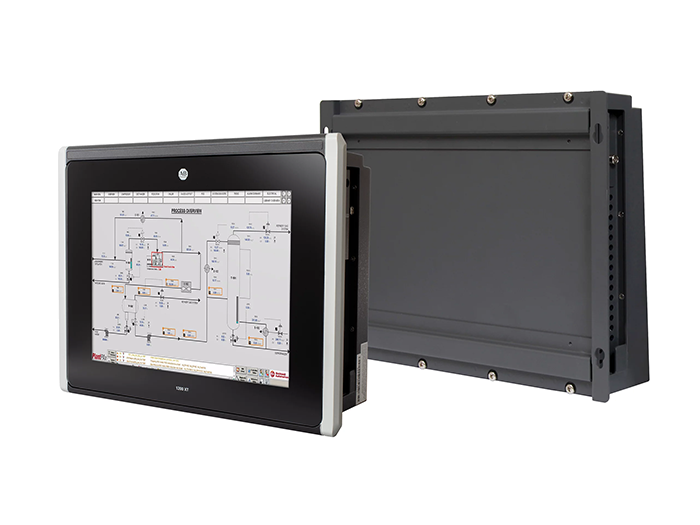

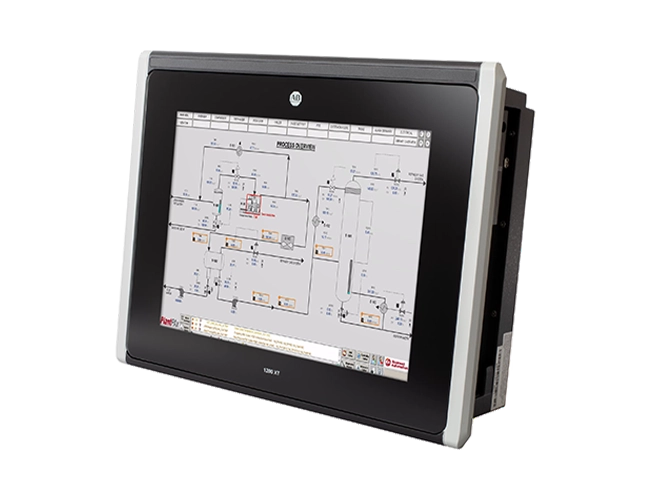

Rockwell automation 6181X Hazardous Location Integrated Display Computers and Thin Clients
-
NG # 006902-HW-ROCKWELL-002
Manufactured by:
The 6181X Hazardous Location Integrated Display Computers and Thin Clients are IECEx, ATEX Category 3, and UL Class I Division 2 certified, suitable for rugged environments.
Specification
- Certified for hazardous location use by cUL Class 1 Division 2 & Class 1 Zone 2, ATEX, UKEx, CCC Ex, and INMETRO
- Intel i3-1115GRE Dual Core, 2.2GHz, 11th Generation Tiger Lake
- Ships with a 256 GB, 512 GB or 1 TB solid state drive
- Includes one CompactFlash Type II card slot and one half-length PCIe x1 expansion slot
- DRAM options include 16GB, 32GB or 64GB
- Connectivity: 2x COM ports, 4x USB 3 ports, 2x 1 GB Ethernet Ports, 1 Display ports, 1 DVI port
- Includes cloning utility for system backup and restore
- Includes diagnostic utility for hardware analysis and system troubleshooting
- Available with Windows® 10 IoT Enterprise operating system and compatible with Windows 11 IoT Enterprise
- Trusted Platform Module (TPM) options include: hardware, firmware or none
- ThinManager-ready BIOS
- Operates in -20...55 °C (-4...131 °F) temperature range outside the cabinet (display side) and -20...70 °C (-4...158 °F) temperature range inside the cabinet (back side panel mount version and non-display versions)
- DC-powered (18 to 32 VDC)
Description
The 12.1 in. TFT color display units feature Projected Capacitive (PCAP) options. Sunlight readability and other features make these computers a necessity for maintaining productivity in hazardous location work environments.
Meets INMETRO certification standards in addition to IECEx, ATEX, and UL certifications. Delivers a clean, intuitive multi-touch screen experience with projected capacitive display. Incorporates settings for both thin and thick glove operation. Provides 1300-nit 12.1” ultrabright LCD display with 100,000 hour service life at 25oC. Offers dry to damp screen operation for indoor and outdoor use
