SDM-3R calibration station
002743-HW-RKI-043
Overview

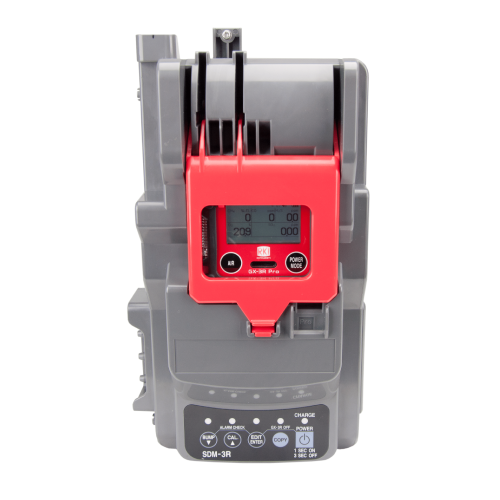

The SDM-3R is a versatile maintenance tool that automates the service of a GX-3R (Pro) portable gas monitor. This docking station can be used as a stand alone device for charging, calibration and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).
| Input Power | AC Adapter with 100 – 240 VAC, 47-63 Hz, 0.4A input and 5.99 VDC, 2A output provided as standard. |
| Environmental Conditions | For Indoor Use Only
0° C to 40° C, below 95% Relative Humidity, Non-Condensing |
| Applicable Instruments | GX-3R and GX-3R Pro |
Maximum Number of
Records Saved | Stand Alone: 200 calibrations, or 214 bump test, or 469 alarm check records PC program Controlled: Unlimited records |
| 5 Ports | 3 Calibration gas, 1 fresh air and 1 exhaust |
| Standard Accessories |
|
Automate how you manage and service GX-3R (Pro) instruments by connecting the SDM-3R to a computer with a USB cable. With the SDM Docking Station controller software, you can simultaneously calibrate, bump test, alarm check, archive data, or charge up to ten instruments. You can also download the datalogging history from each instrument into one easy to manage location. SDM-3R stations can be manifolded together to reduce the number of demand flow regulators gas cylinders required.
