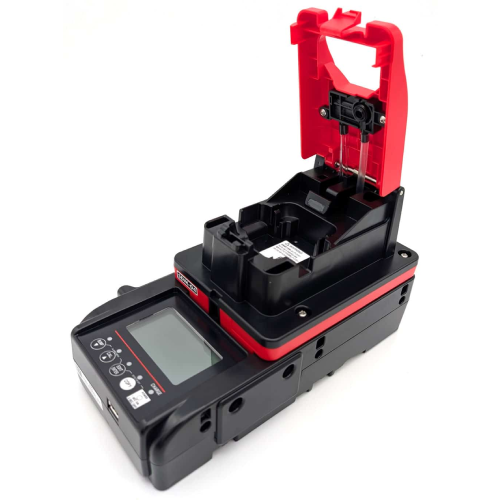

SDM-04 Calibration Station
002744-HW-RKI-044
Overview
The SDM-04 is a versatile maintenance tool that automates the service of a 04 Series portable gas monitor. This docking station can be used as a stand alone device for calibrating and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).
| Input Power | Main unit input: 5.2 VDC
Accessory AC adapter input: 100-240 VAC |
| Operating Temperature | 0 to 40 ° C (no sudden fluctuations) |
| Applicable Instruments | 04 Series |
| Memory capacity | Up to 500 bump tests, calibrations, or alarm checks |
| Number of Calibration Gas Cylinders | Up to three calibration gas cylinders |
| Standard Accessories | • Air Filter
• AC Adapter • Exhaust tubing • Flash drive • USB-A to USB-B cable • LAN cable |
The SDM-04 can also be connected to a PC for automated calibration, bump testing, and archiving of datalog data from 04 Series instruments. Up to ten SDM-04 docking stations can be connected simultaneously using USB cables and the SDM-04 includes connections for one to three calibration gas cylinders.
