RKI GX-6100 Multigas Detector
002733-HW-RKI-033
Overview

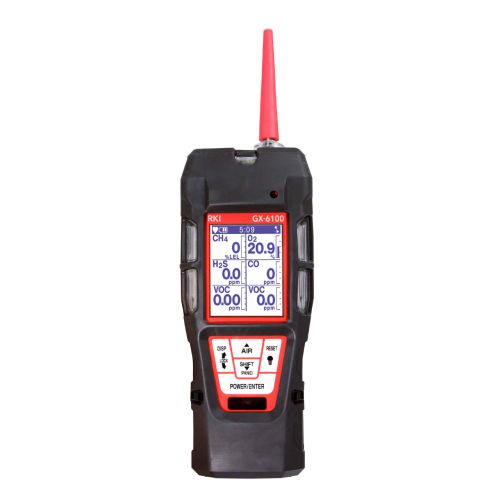

The GX-6100 is a powerful hand-held instrument capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases which include combustibles, O2, CO, & H2S, the GX-6100 has 2 additional smart channels that accept PID, PPM, IR or super toxic sensors. The updated GX-6100 can measure combustible gases in PPM range and %volume in the same monitor.
| Alarm Types | Gas alarm | Man-down | Trouble |
| Low and high adjustable | 1st – self reset
2nd – latching | Low flow
Sensor connection Low battery Circuit error Calibration failure | |
| Sample Method | Sample draw pump, flow rate 0.45 LPM, 100 foot sample range | ||
| Display | Digital LCD, autobacklight, peak bar display, auto display rotation, and customize order of gases | ||
| Communication | Bluetooth, IrDA | ||
| Audible Alarm | 95 dB at 1 ft. | ||
| Languages | English, Japanese, French, Spanish, Portuguese, Italian, German, Russian, Korean, Chinese (simplified), Chinese (traditional), Vietnamese, Slovak, Czech, Turkish, Polish | ||
| Continuous Operation | 28 hours on Lithium-ion battery pack. Complete recharge in 6 hours.
8 hours Alkaline battery pack (3 AA size in each pack) | ||
| Operating Temp. & Humidity | -4°F to 122°F (-20°C ~ +50℃), 0- 95% RH non condensing | ||
| Dimensions | 2.6” W x 7.9” H x 2.2” D (H200 x W68 x D56 mm) 17.6 ounce (500g) with lithium battery pack16 ounces with alkaline batteries (450g) | ||
| Case Material | Dust and water resistant with IP-67 approval (exclude sample hose and probe) | ||
Safety Design /
Approvals | Explosion proof: IECEx , ATEX , TIIS , cCSAus (pending)
Explosion class :Ex ia IIC T4 Ga Others: CE Marking | ||
| Standard Features | 2 Smart sensors slots auto recognize sensor changes
Panic alarm and man down alarm Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight LEL sensor protection mode | ||
| Standard Accessories | • Rubber boot • Belt clip • Hand strap • Tapper nozzle• Probe with hydrophobic & dust filter 3’ teflon lined hose• Benzene pre-filter tubes and holder (benzene versions) | ||
| Optional Accessories | • SDM-6100 calibration station
• Bundles with instrument carrying case and accessories • Flexible probes • Up to 100 foot sample hoses • Filter set • IrDA cable | ||
| Warranty | Three years material (including R sensors) and workmanship. 2 years for IR sensors and ESS (except Cl2), One year for TE, Cl2 and PID sensors (Two months for 11.7 eV lamp) | ||
The GX-6100 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6100 will easily alert users when needed.
