Real-Time Spectrum Analyzers RSA 3000 Series
-
NG # 001023-HW-Rigol-023
Manufactured by:
The RSA3000 real-time spectrum analyzer with real-time analysis and sweep analysis capabilities, optional EMI measurement application software (EMI), with excellent performance and specifications. Its frequency range is 9kHz to 3.2GHz, and it is available with the tracking source "-TG" model, which can be widely used in enterprise R&D, factory production, education and teaching.
Specification
FREQUENCY RANGE 9kHz～4.5GHz MAX. REAL-TIME BANDWIDTH 40MHz RBW 1Hz~3MHz(10MHz opt.) PHASE NOISE -102dBc/Hz@10kHz DANL -161dBm TRACKING SOURCE Yes
Description

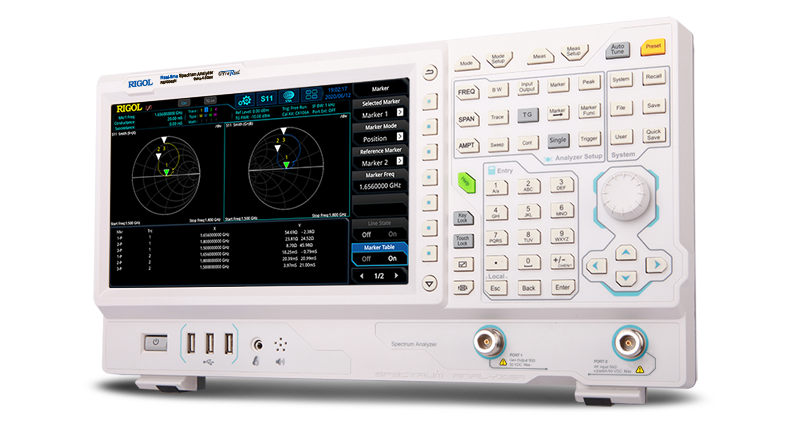

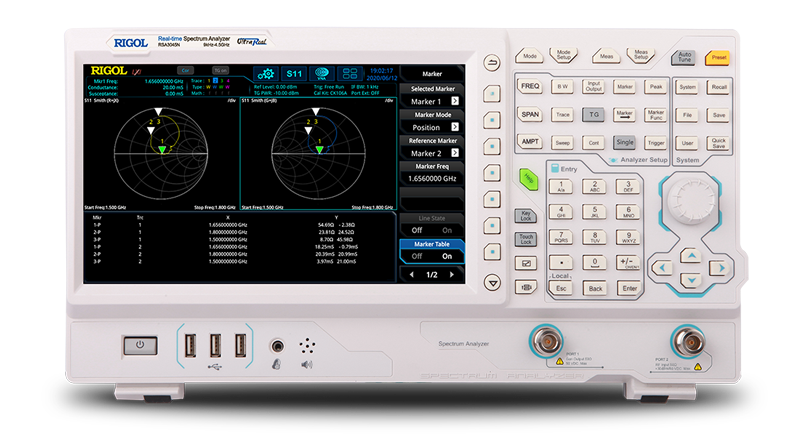

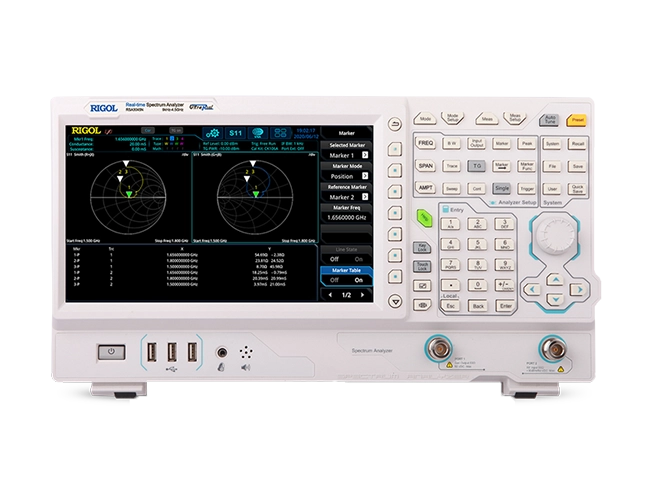

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY)
The RSA3000's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.
The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.
