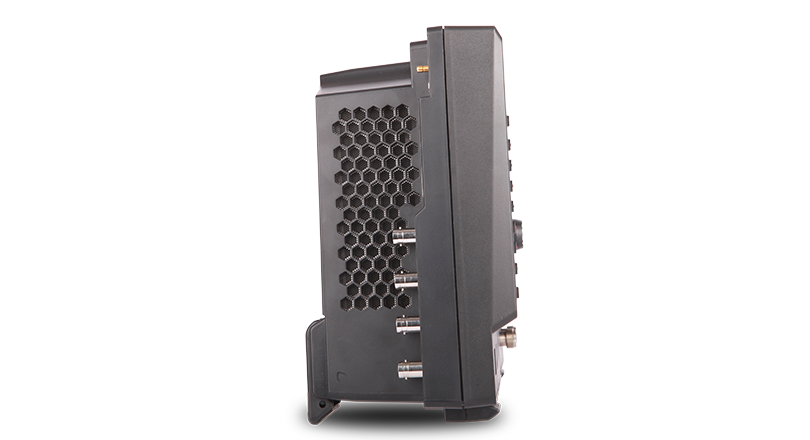

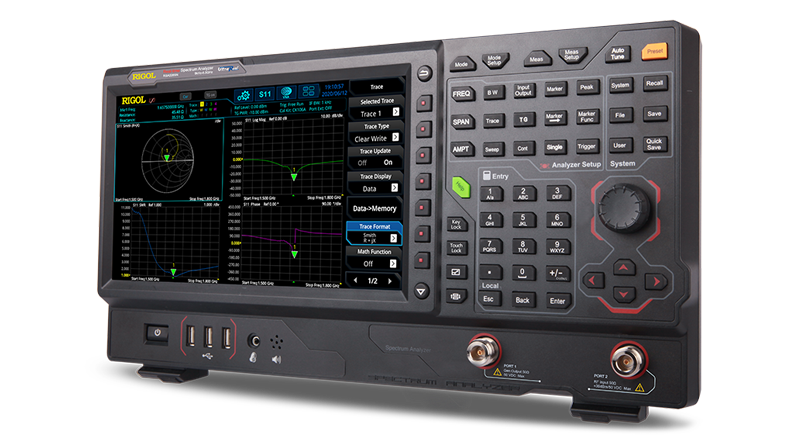

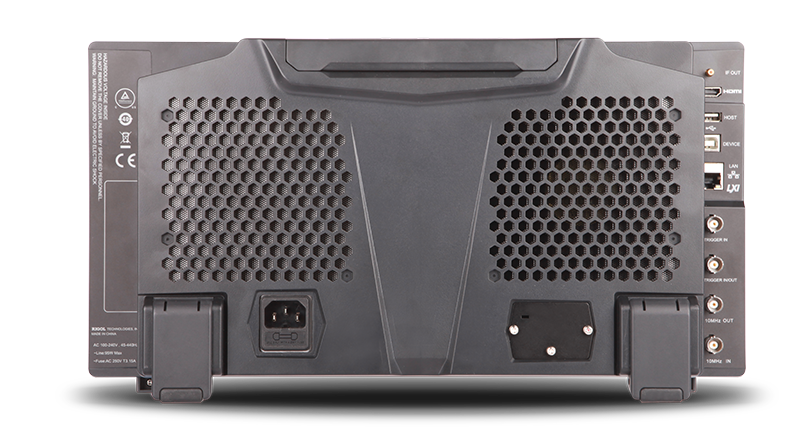

Real-time spectrum analyzer RSA5000 Series
001022-HW-Rigol-022
Overview
The RSA5000 real-time spectrum analyzer with real-time analysis and sweep analysis, optional vector signal analysis application software (VSA) and EMI measurement application software (EMI), with excellent performance and specifications. Its frequency range is 9kHz to 6.5GHz, and it is available with the tracking source "-TG" model, which can be widely used in enterprise R&D, factory production, education and teaching.
| FREQUENCY RANGE | 9kHz~6.5GHz |
| MAX. REAL-TIME BANDWIDTH | 40MHz |
| RBW | 1Hz~10MHz |
| PHASE NOISE | -108dBc/Hz@10kHz |
| DANL | -165dBm |
| TRACKING SOURCE | Yes |

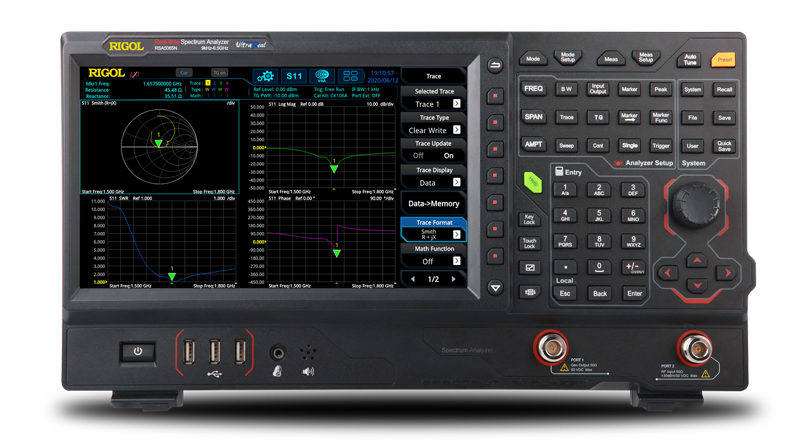

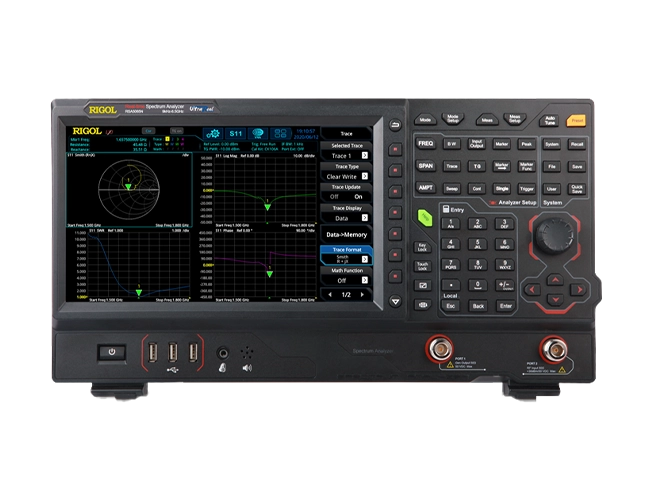

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY).
The RSA5000 delivers up to 40MHz of real-time bandwidth using the original Ultra Real technology. In the real-time bandwidth range, transient signals exceeding 7.45us duration can be guaranteed to be 100% captured and accurately measured.
