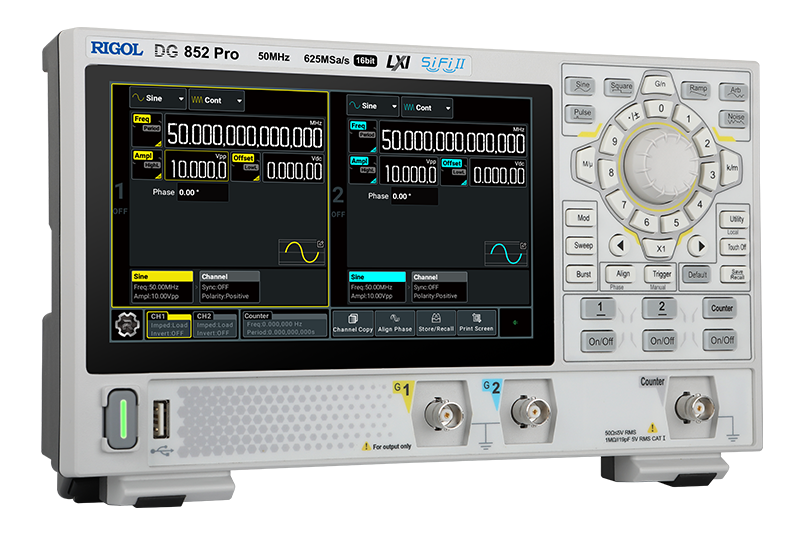

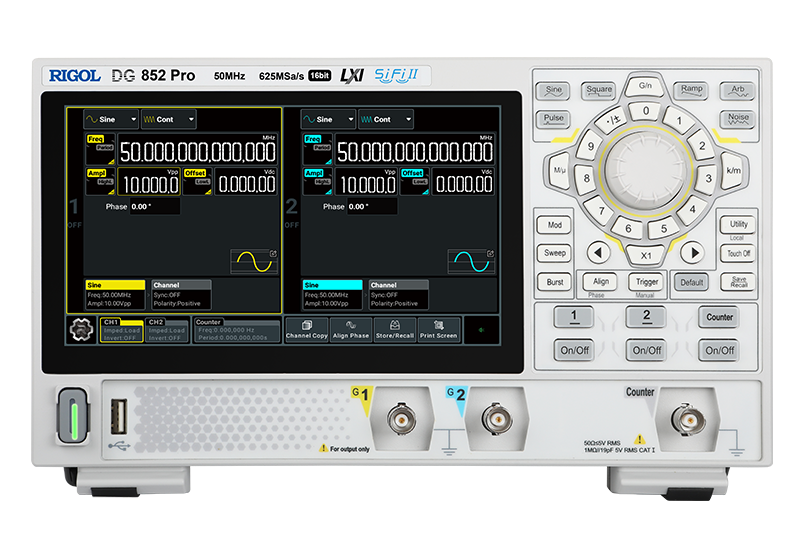

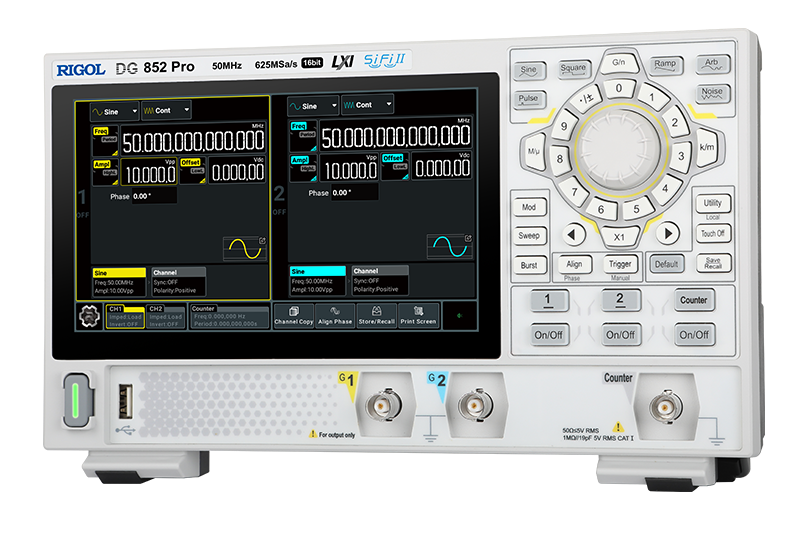

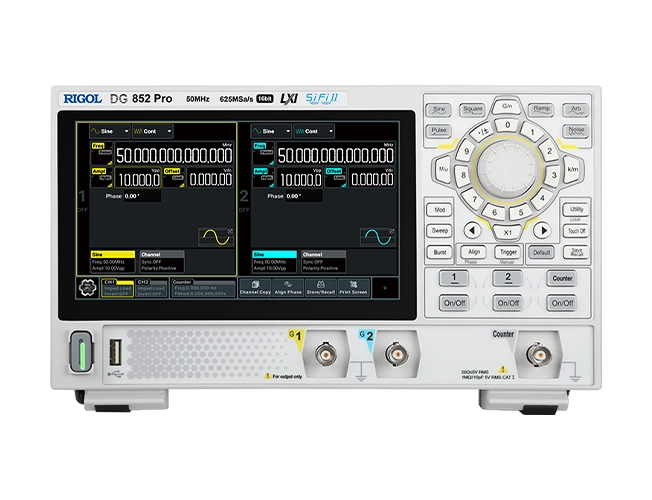

Function Arbitrary Waveform Generator DG800 Pro Series
-
NG # 001016-HW-Rigol-016
Manufactured by:
DG800 Pro Series is a multifunctional signal generator that integrates functions such as function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog/digital modulator, frequency meter, etc. The brand new appearance and user-friendly interface design bring a friendly user experience.
Specification
MAX. OUTPUT FREQUENCY 50MHz SAMPLE RATE 625MSa/s VERTICAL RESOLUTION 16bits CHANNELS 2CH ARBITRARY WAVE LENGTH 2M(8M opt.)
Description
625MSa/s maximum sampling rate, 16bit vertical resolution, more accurate waveform output, and cost-effective choice for entry-level signal sources.
7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

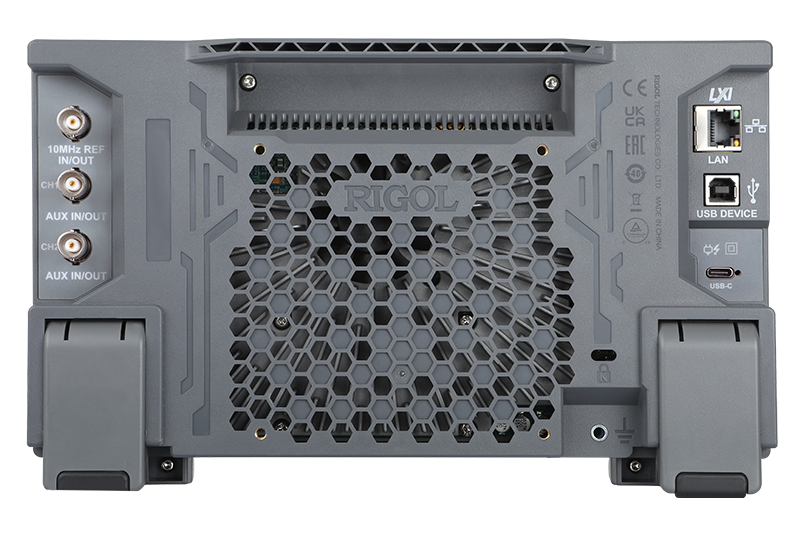

Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.
The 266mm (width) x 165mm (height) x 63mm (depth) DG800 Pro weight only 1.78kg. With its ultra portable design, compact size, and supported by standard display stand, saves your workspace space.
40MHz square wave and 25MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.
