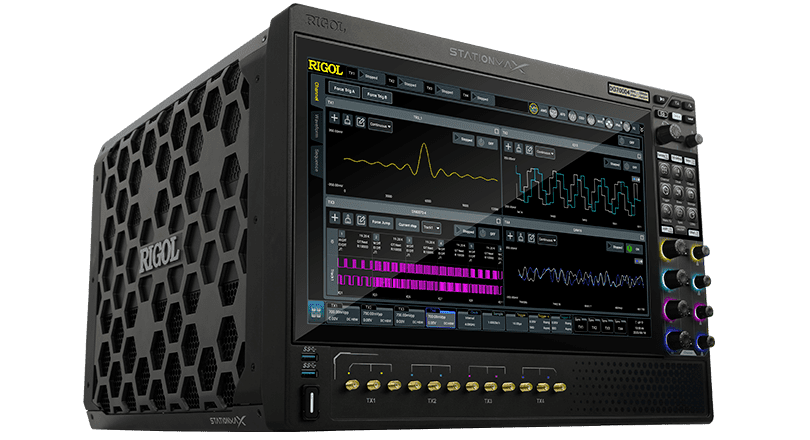

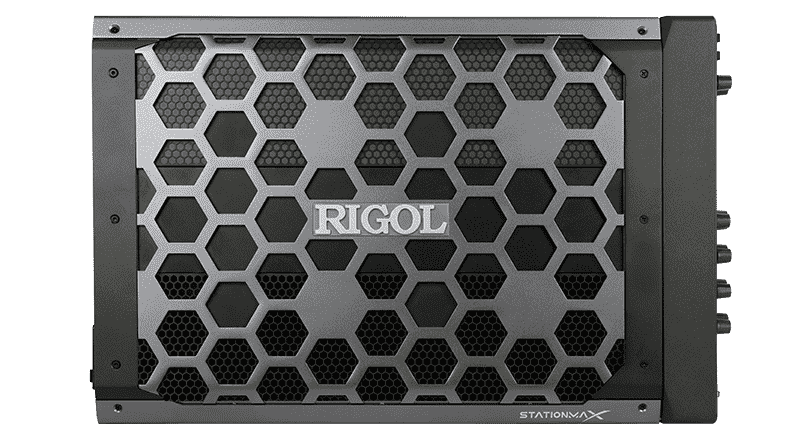

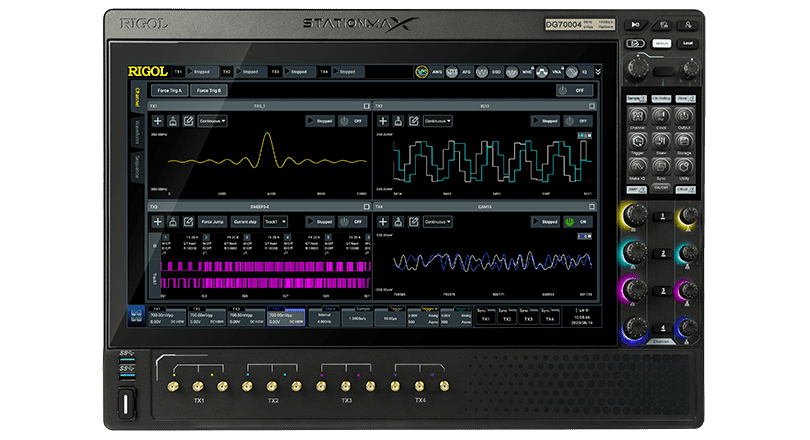

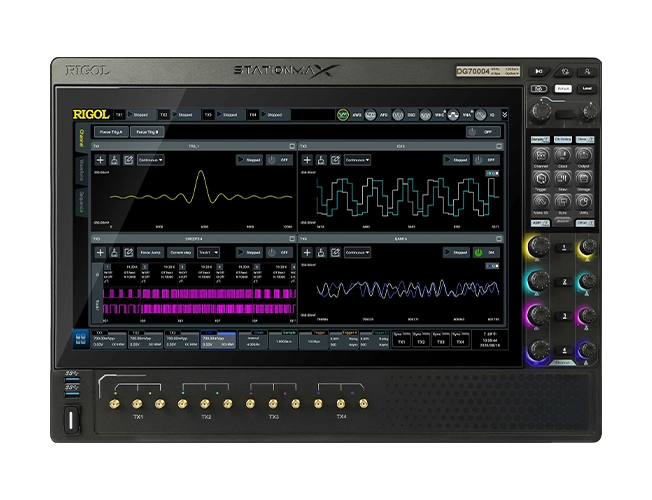

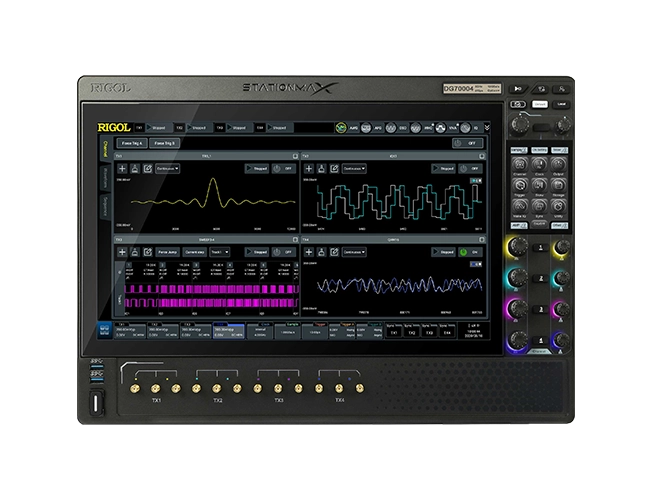

Function Arbitrary Waveform Generator DG70000 Series
-
NG # 001017-HW-Rigol-017
Manufactured by:
DG70000 series is the industry-leading high-performance arbitrary waveform generator with the highest 12Gsa/s sampling rate, 5GHz analog bandwidth, 16bit vertical resolution, and the longest 4Gpts wavetable length, with -70dBc spurious-free dynamic range, providing users with clearer and purer signals.
Specification
MAX. OUTPUT FREQUENCY 5GHz SAMPLE RATE 5GSa/s(12GSa/s interpolated) VERTICAL RESOLUTION 16bits CHANNELS 4CH ARBITRARY WAVE LENGTH 1.5Gpts
Description
In the laboratory conditions to build a complex dense, dynamically changing electromagnetic environment to simulate the real environment of electromagnetic radiation, through a reproducible way to effectively promote the speed of model optimization, test the adaptability of the system under test to the complex electromagnetic environment and anti-interference performance.
Receive testing requires a signal source capable of creating a wide variety of test code patterns with precisely controlled signal derating capabilities in order to emulate the worst-case conditions as defined by the standard and to perform enhanced testing of the device under test.
With the new technology platform, the adjustable sampling rate from 100Sa/s to 12GSa/s can reproduce narrow pulses as low as 400ps to truly restore the signal
