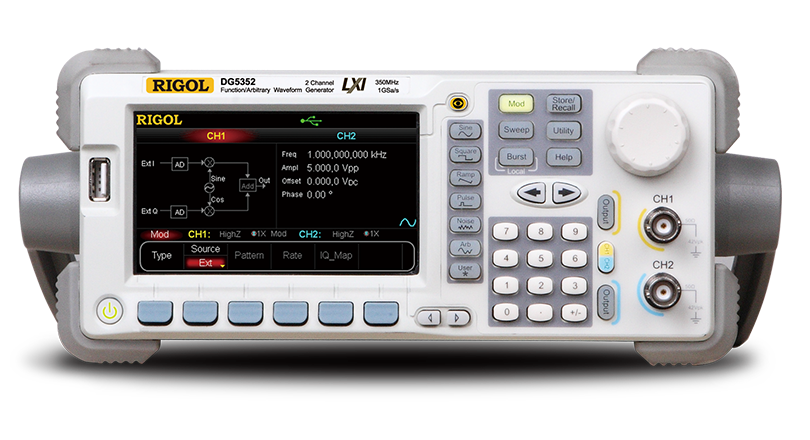

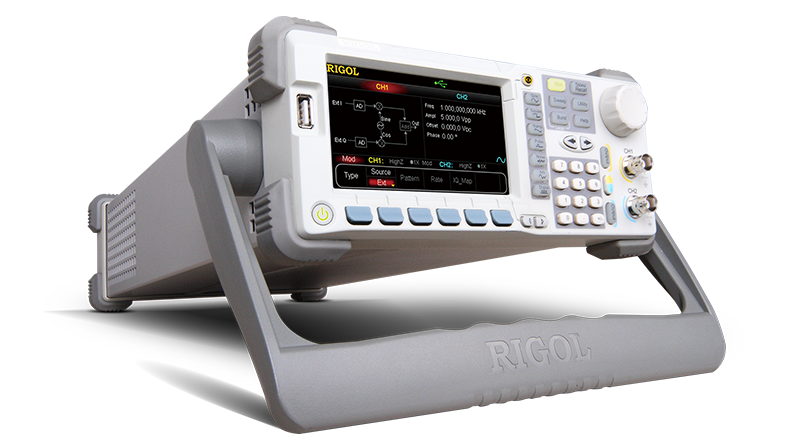

Function Arbitrary Waveform Generator DG5000 Series
-
NG # 001019-HW-Rigol-019
Manufactured by:
Dg5000 series has 6 functions, including any waveform generator, pulse generator, IQ baseband / if source, frequency hopping source, code generator and function generator. The series includes single and dual channel models. The functions of the two channels are completely equal, and the phase between channels is precisely adjustable.
Specification
MAX. OUTPUT FREQUENCY 350MHz SAMPLE RATE 1Gsa/s VERTICAL RESOLUTION 14bits CHANNELS 2CH ARBITRARY WAVE LENGTH 128M
Description
The frequency of any wave is up to 50MHz, and the sampling rate can be adjusted in the playback mode. The amplitude accuracy reaches 1% ± 1mvpp of ± setting value.
DG5000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.
Modulation types include am, FM, PM, ask, FSK, PSK, PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing
