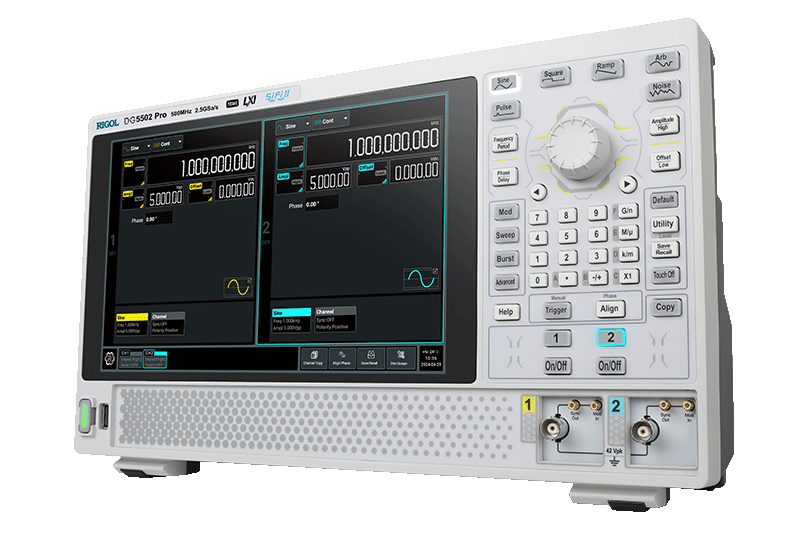

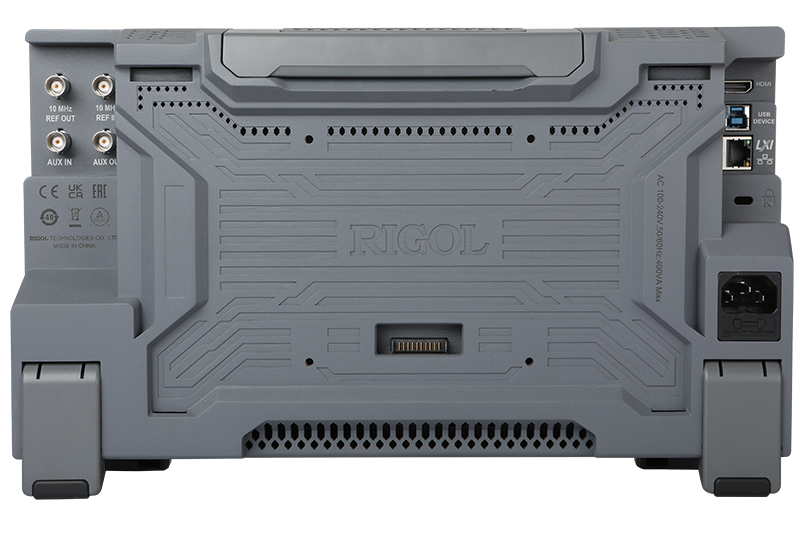

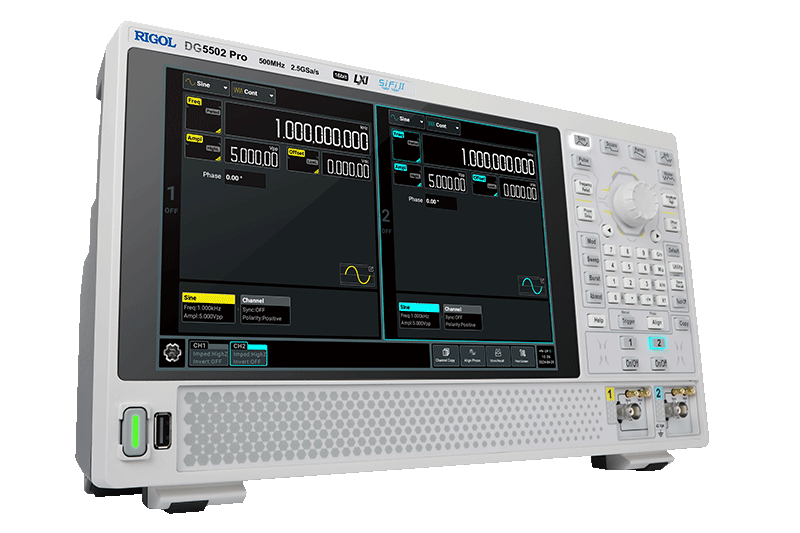

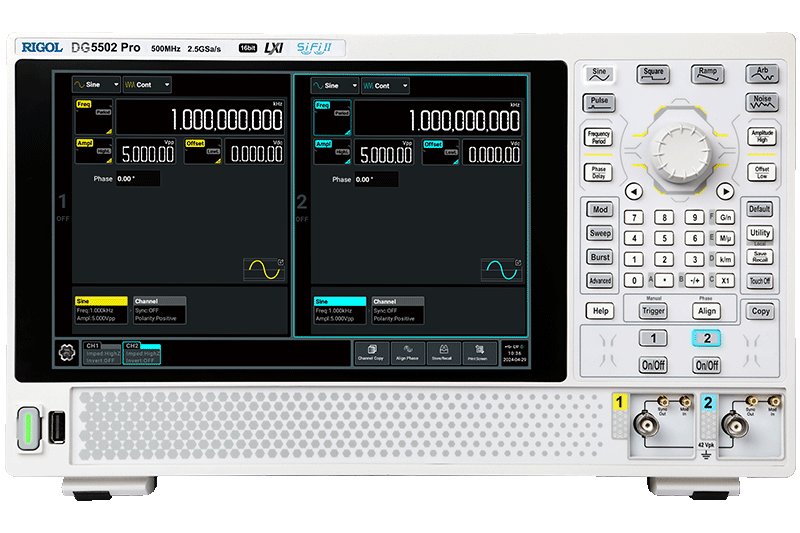

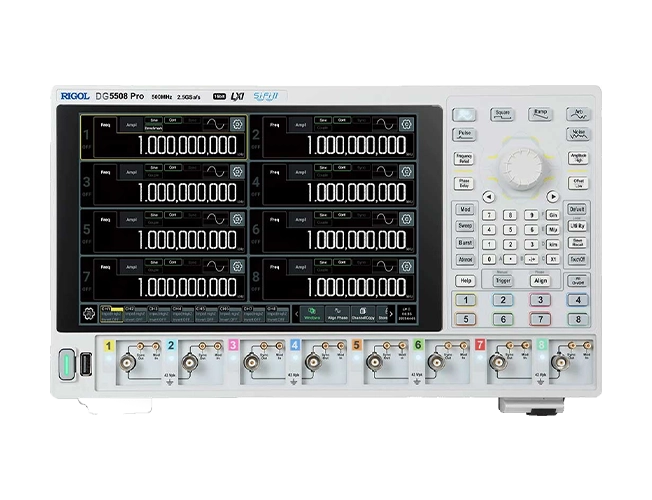

Function / Arbitrary Waveform Generator DG5000 Pro Series
-
NG # 001014-HW-Rigol-014
Manufactured by:
The DG5000 Pro Function/Arbitrary Waveform Generator is RIGOL's new generation of isolated waveform generators. Based on the Si-Fi II technology platform, it achieves a maximum sampling rate of 2.5 GSa/s, an output frequency of 500 MHz, and a 16-bit vertical resolution, along with several new feature upgrades to meet the needs of various industries and application scenarios.
Specification
MAX. OUTPUT FREQUENCY 500MHz SAMPLE RATE 2.5GSa/s VERTICAL RESOLUTION 16bits CHANNELS 2CH ARBITRARY WAVE LENGTH 128Mpts .opt
Description
Eliminates interference and noise caused by ground loops, enhancing output stability and protecting components and circuits are sensitive to potential differences.
With a 2.5 GSa/s sampling rate and a maximum output frequency of 500 MHz, the DG5000 Pro provides stable assurance for your waveform outputs.
The DG5000 Pro series supports square wave frequencies up to 170 MHz, with a minimum rise time improved to 0.8 ns (typical). Performance is uncompromised, offering high-end configurations even at entry-level.
