Function / Arbitrary Waveform Generator DG4000 Series
001020-HW-Rigol-020
Overview
DG4000 series multi-function signal generator with functions of function generator, arbitrary waveform generator, pulse generator, harmonic generator, analog / digital modulator, frequency meter, etc. all models of this series have two channels with identical functions and phase adjustable between channels.
| MAX. OUTPUT FREQUENCY | 200MHz |
| SAMPLE RATE | 500Msa/s |
| VERTICAL RESOLUTION | 14bits |
| CHANNELS | 2CH |
| ARBITRARY WAVE LENGTH | 16K |

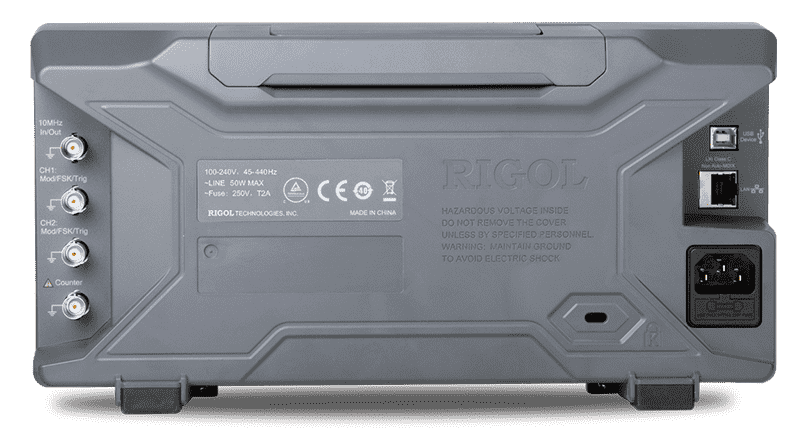

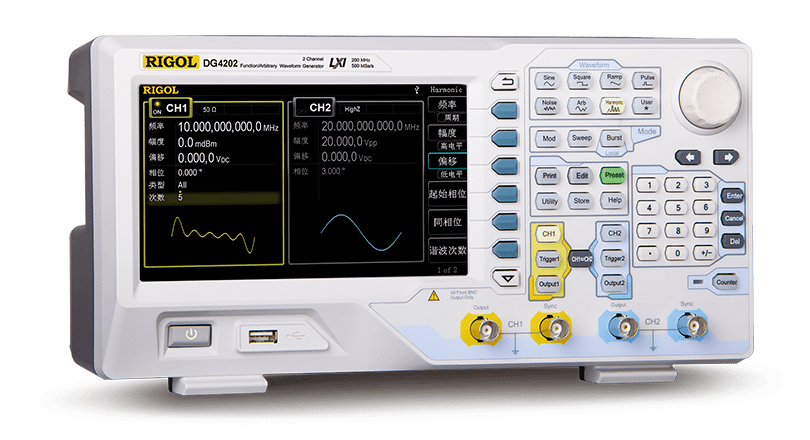

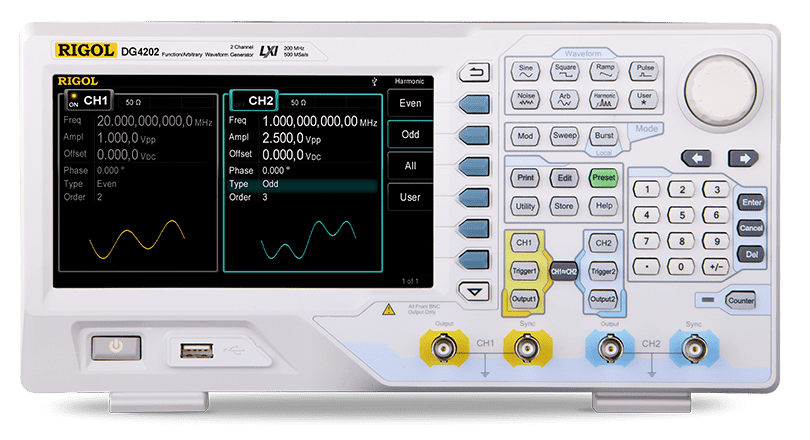

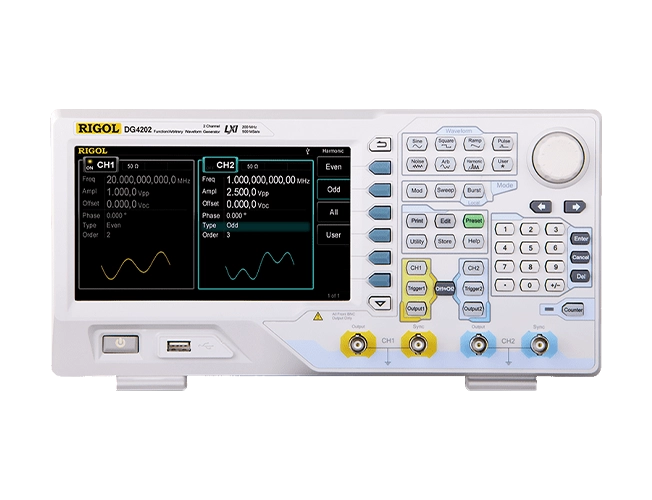

The parameter setting value, waveform shape and output configuration of the channel are clearly displayed, so that the user can see the current output state of the instrument at a glance.
The dual channel performance is the same, including basic wave, arbitrary wave, modulation wave, scanning, pulse series and other waveform output. Between channels, waveform or state can be copied, and frequency / amplitude / phase coupling can also be performed. The phase between channels can be adjusted accurately.
