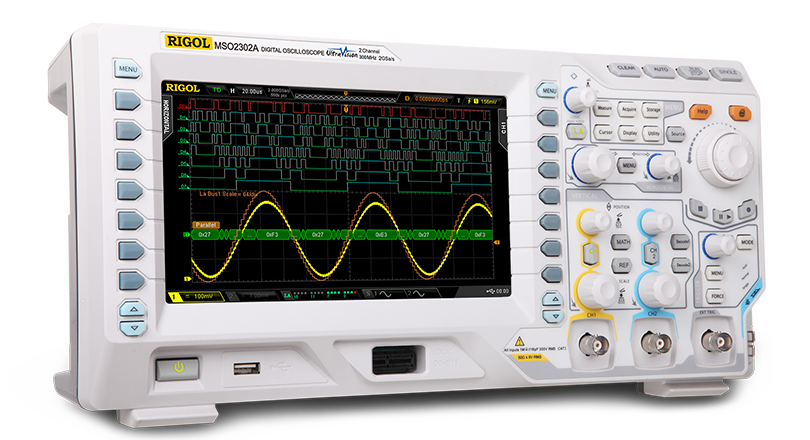

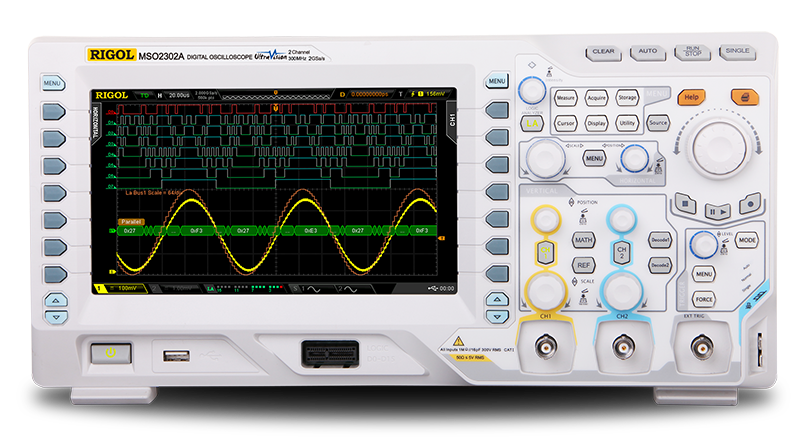

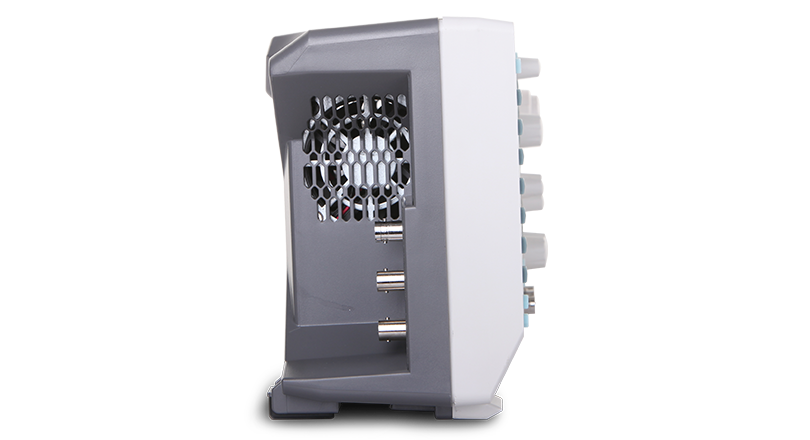

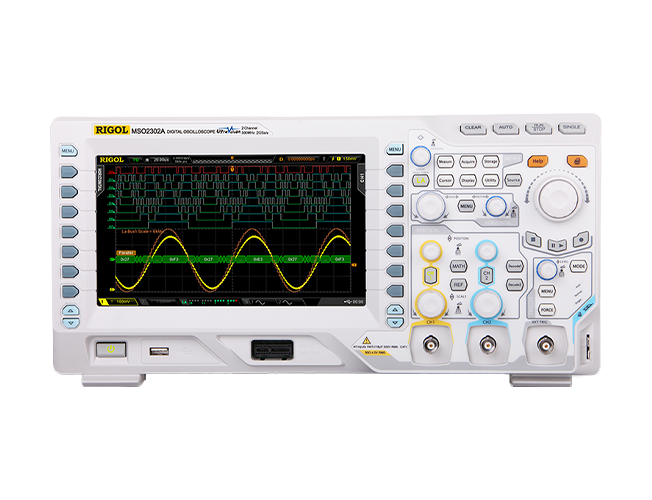

Digital Oscilloscope MSO/DS2000A Series
-
NG # 001009-HW-Regol-009
Manufactured by:
The MSO/DS2000A series of digital oscilloscopes are universal digital oscilloscopes with bandwidths from 100MHz to 300MHz and sampling rates up to 2GSa/s, combined with deep memory depth and high waveform capture rates.
Specification
BANDWIDTH 300MHz ANALOG CHANNELS 2 REAL-TIME SAMPLE RATE 2GSa/s MAX. MEMORY DEPTH 56Mpts WAVEFORM CAPTURE RATE 52,000wfms/s DIGITAL CHANNELS 16
Description
With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can effect your design.
The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.
Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.
