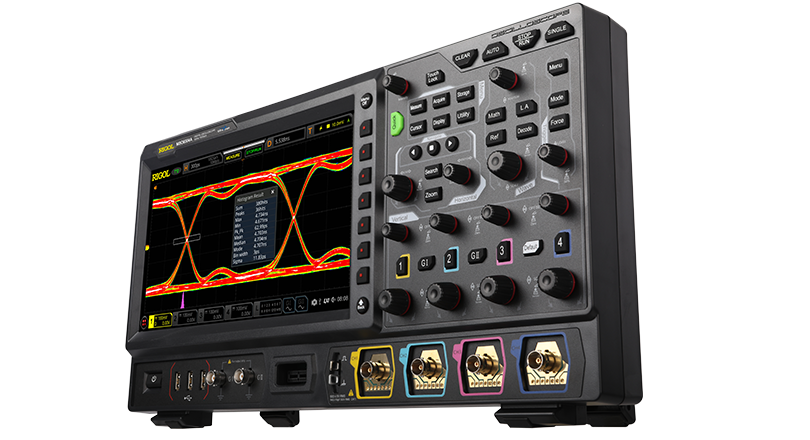

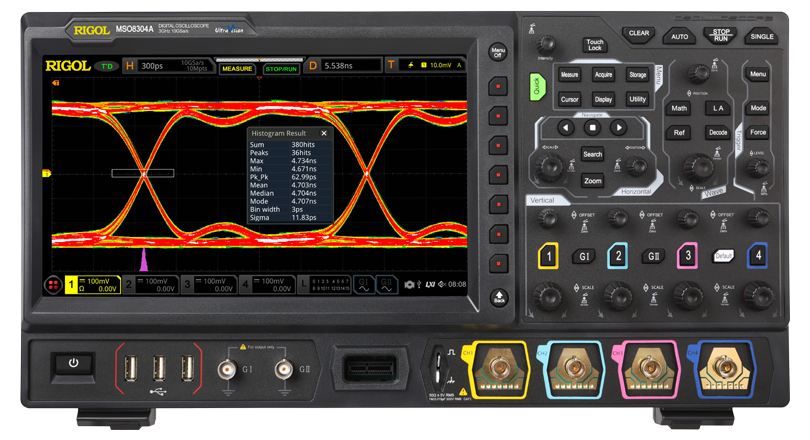

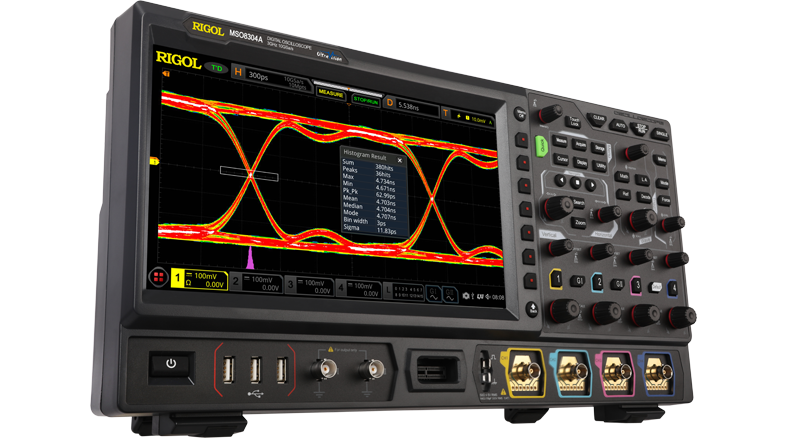

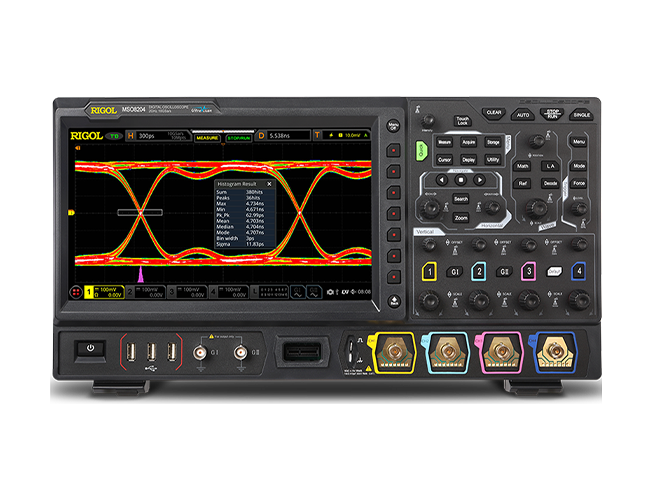

Digital Oscilloscope MSO8000 Series
-
NG # 001004-HW-Regol-004
-
MF # 001004-HW-Regol-004
Manufactured by:
The MSO8000 series digital oscilloscope is a mid- to high-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.
Specification
- 600 MHz, 1 GHz, and 2 GHz (single-channel and half-channel modes)
- 4 analog channels, 1 EXT channel, and 16 standard digital channels (requires to purchase RPL2316 logic probe)
- Up to 10 GSa/s real-time sample rate
- Up to 500 Mpts memory depth (standard)
- Capture rate > 600,000 waveforms per second
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback
- Integrates 7 independent instruments into 1, including
- digital oscilloscope
- 16-channel logic analyzer
- spectrum analyzer
- arbitrary waveform generator (option)
- digital voltmeter
- 6-digit frequency counter and totalizer,
- protocol analyzer (option)
- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- A variety of math operations, built-in enhanced FFT analysis, and peak search function
- Waveform histogram analysis (standard)
- Real-time eye diagram and jitter analysis software (option)
- Built-in advanced power analysis software (option)
- 10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence

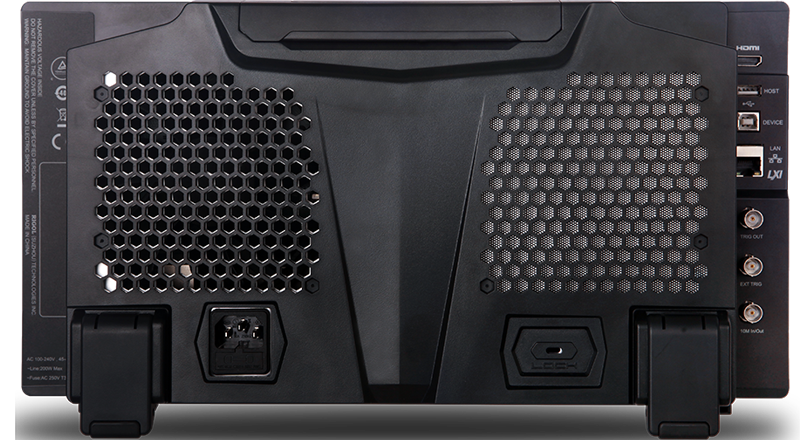

- Multiple interfaces : USB , LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
- Web Control remote command
Description
2 GHz Performance for Advanced and Serial Analysis Applications, Category Leading Performance for today's most complex embedded debug challenges. Characterize and Debug Communication Links with integrated Jitter and Real-Time Eye Diagram Solutions 10GSa/sec max Sample Rate 500MPts max Record length >600,000 wf/sec Waveform Capture Rate Jitter and Eye Analysis Option Powerful Search and Mark Capabilities.
