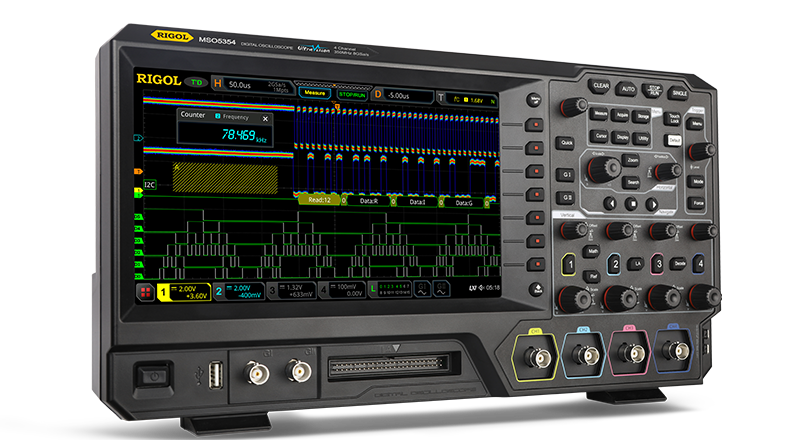

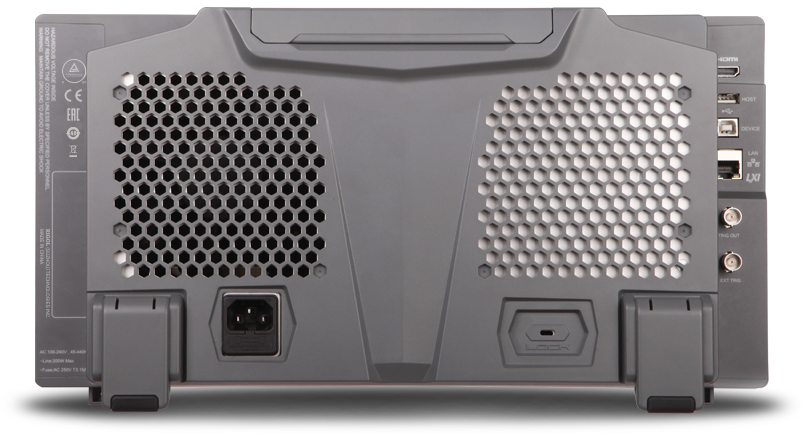

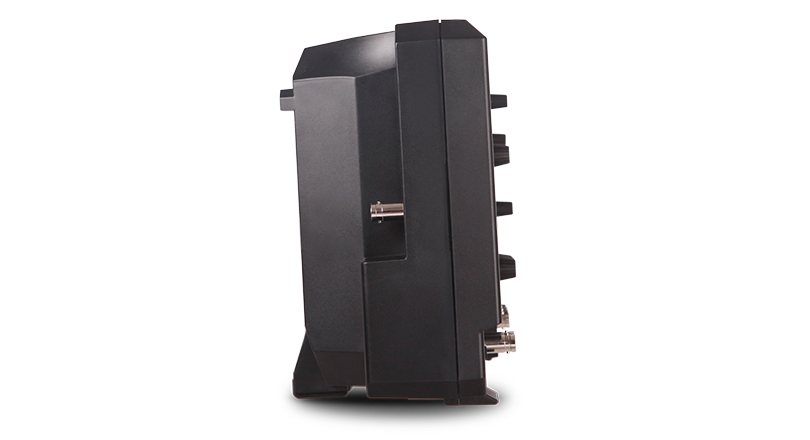

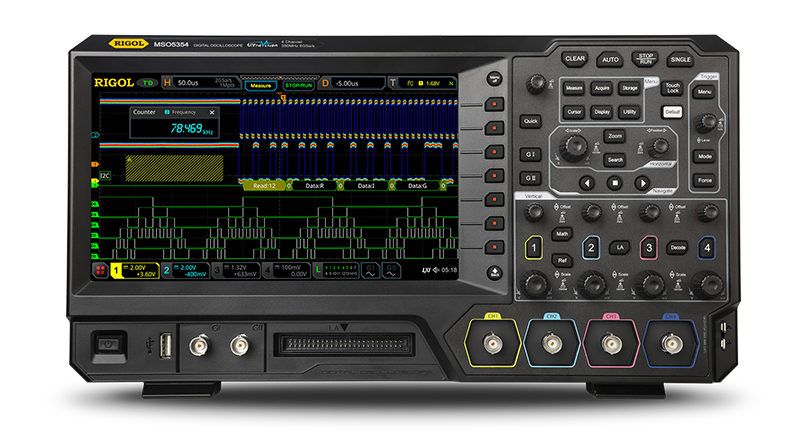

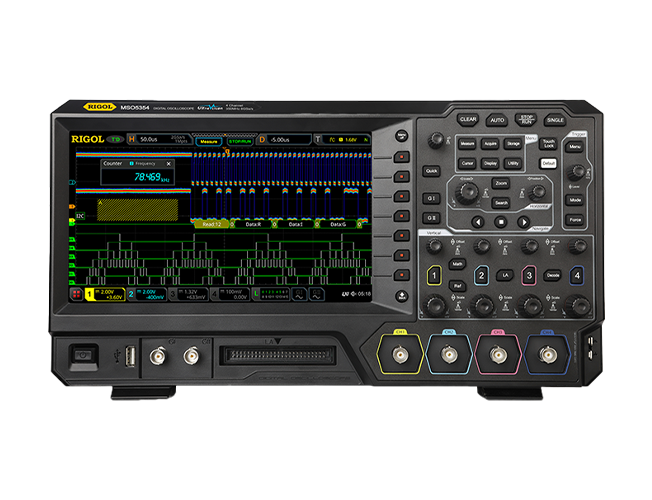

Digital Oscilloscope MSO5000 Series
TF:
001008-HW-Regol-008
MF:
001008-HW-Regol-008
Overview
MSO5000 series digital oscilloscope is a high performance and economical digital oscilloscope based on the technology of RIGOL ultravision II generation.
| BANDWIDTH | 350MHz |
| ANALOG CHANNELS | 4 |
| REAL-TIME SAMPLE RATE | 8GSa/s |
| MAX. MEMORY DEPTH | 200Mpts(opt.) |
| WAVEFORM CAPTURE RATE | 500,000 wfms/s |
| DIGITAL CHANNELS | 16 |
The RIGOL MSO5000 Series Oscilloscope comes with a Bode plot function, which intuitively shows test curve and data. This can help engineers quickly determine system stability by analyzing parameters such as phase margin and gain margin.
