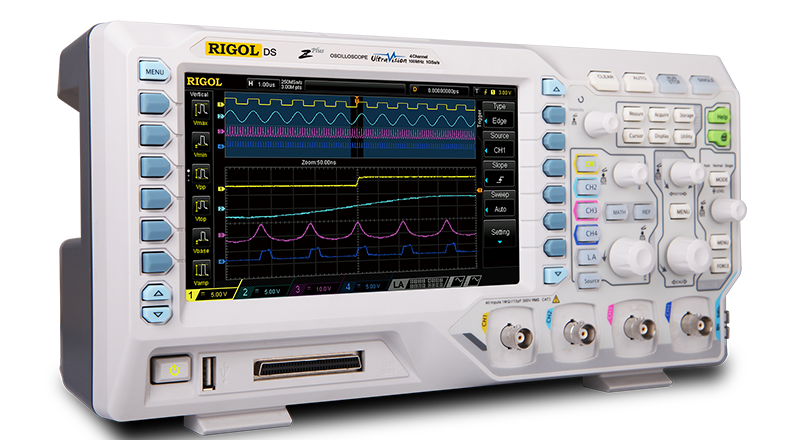

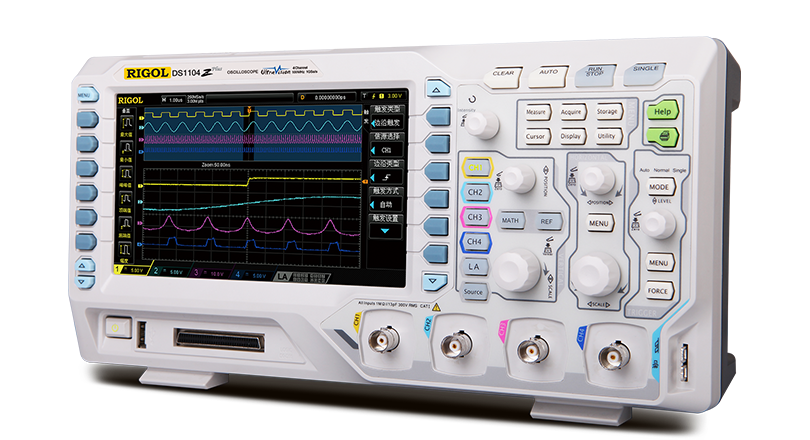

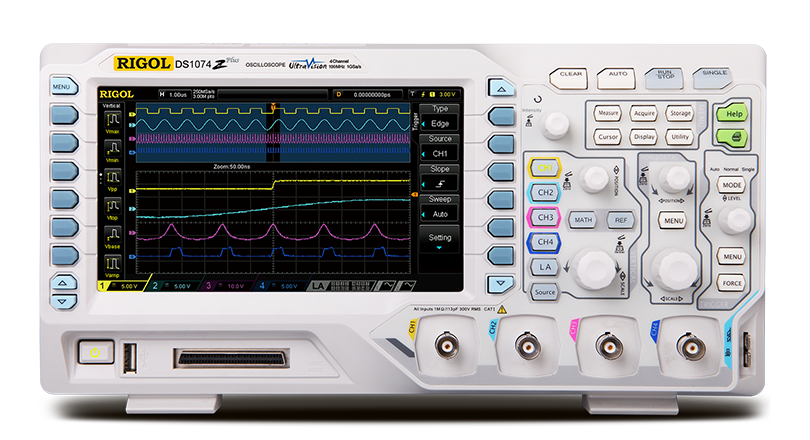

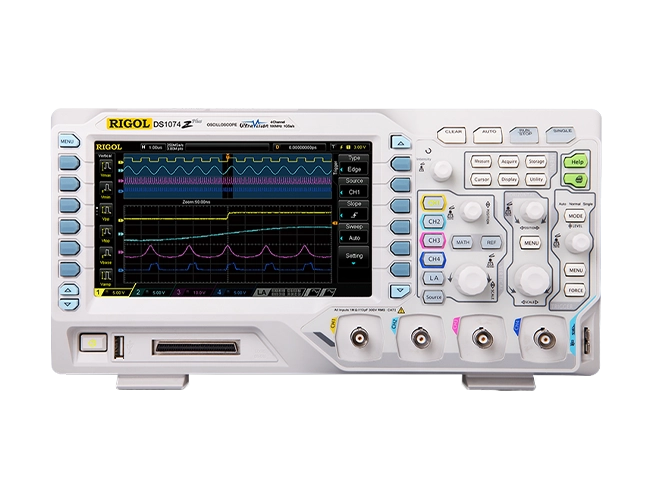

Digital Oscilloscope DS1000Z Series
-
NG # 001014-HW-Regol-014
Manufactured by:
The DS1000Z series of digital oscilloscopes use the Ultravision technology platform, which continues the characteristics of deep storage and high waveform capture rate, and has an excellent cost performance advantage. The innovative DS1000Z Plus series comes standard with a digital channel interface that can be upgraded to a full-featured MSO with the addition of an RPL1116 logic probe.
Specification
BANDWIDTH 100MHz ANALOG CHANNELS 4 REAL-TIME SAMPLE RATE 1GSa/s MAX. MEMORY DEPTH 24Mpts WAVEFORM CAPTURE RATE 30,000wfm/s DIGITAL CHANNELS 16(Probe opt.)
Description
The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals
Standard with 12M, optional with 24m super long storage depth. (standard configuration of digital channel 6m, optional 12m) allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate in a longer period of time, without missing any waveform changes. Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location
