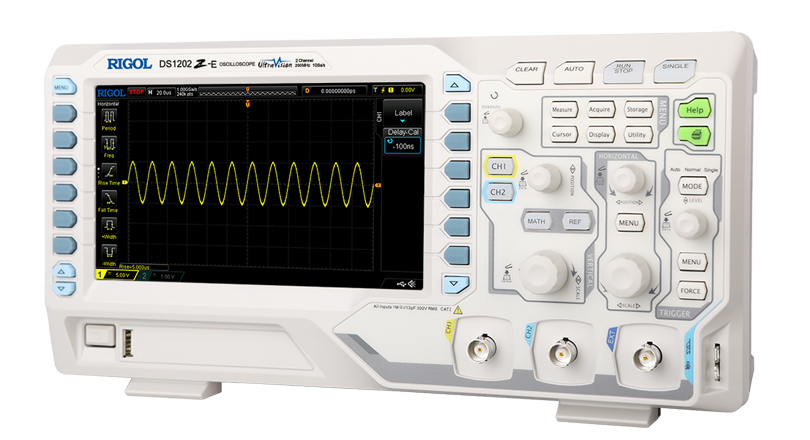

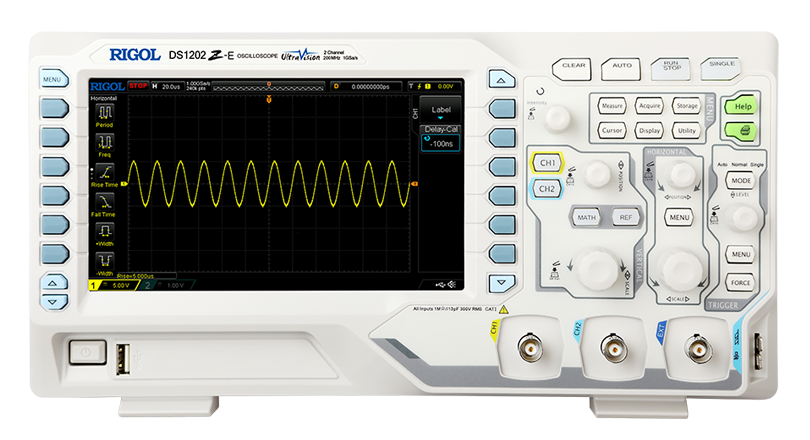

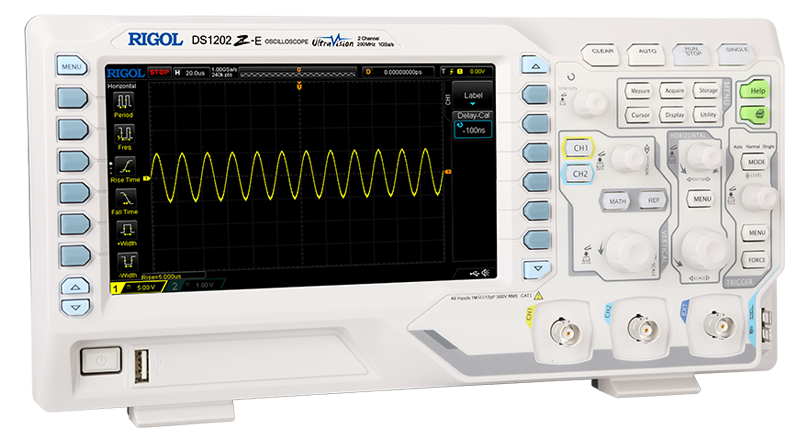

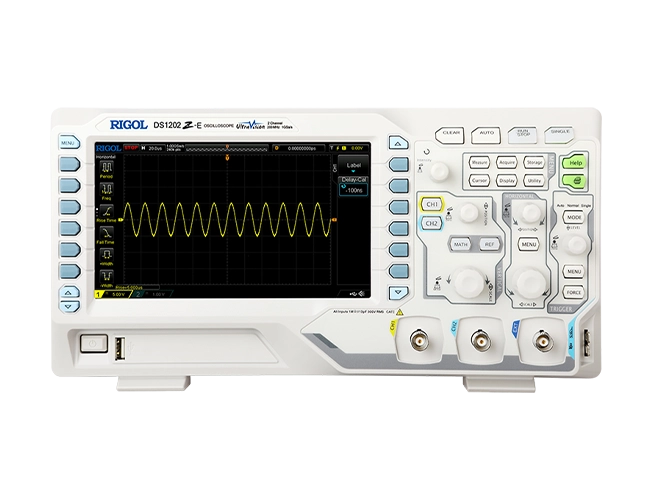

Digital Oscilloscope DS1000Z-E Series
-
NG # 001012-HW-Regol-012
Manufactured by:
The DHO1000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.
Specification
BANDWIDTH 200MHz ANALOG CHANNELS 2 REAL-TIME SAMPLE RATE 1GSa/s MAX. MEMORY DEPTH 24Mpts WAVEFORM CAPTURE RATE 30,000wfm/s
Description
12-bit resolution (212=4096) to see the most signal detail. Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode. 10.1'' 1280*800 HD touch display. RIGOL's new UI and 10.1" HD touch panel, supporting engineers with high efficiency. Standard photoelectric encoder operating knobs, effectively prolonging its service life.
