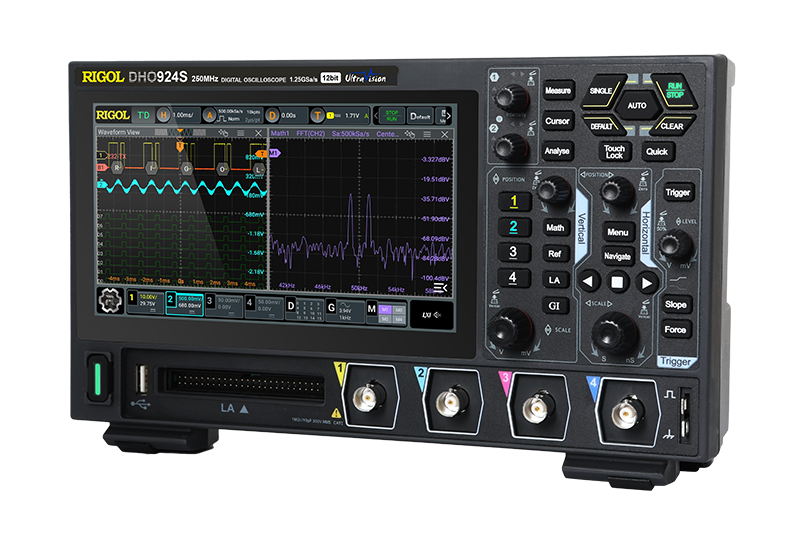

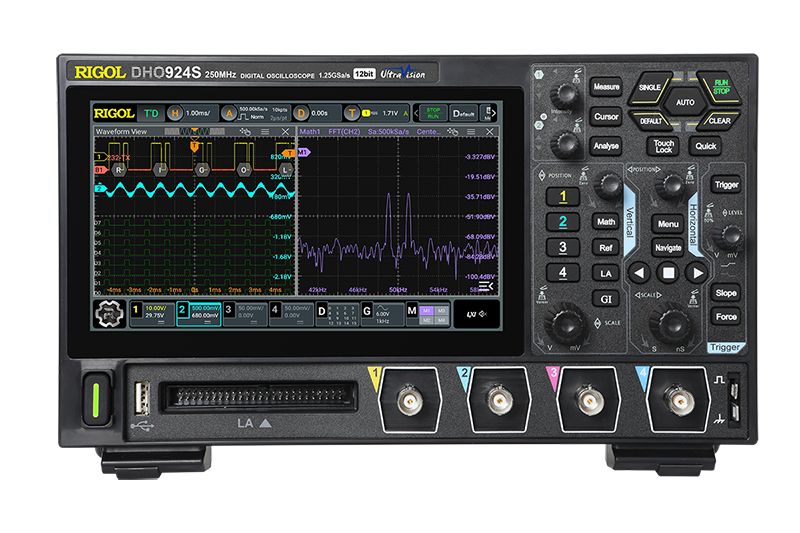

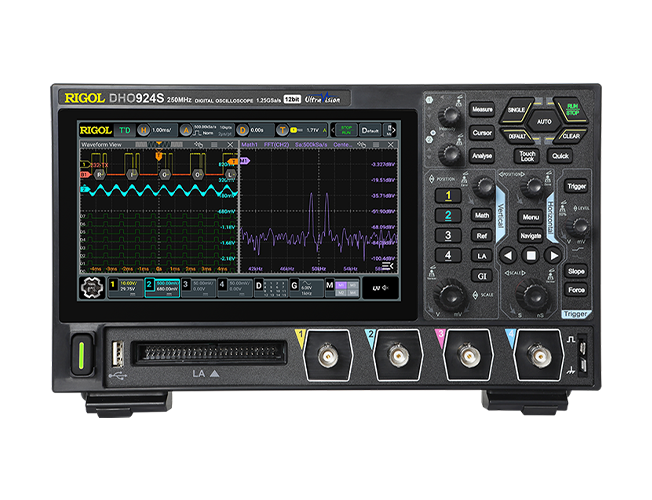

Digital Oscilloscope DHO900 Series
-
NG # 001010-HW-Regol-010
Manufactured by:
The DHO900 series digital oscilloscope is a highly portable and high-resolution digital oscilloscope based on RIGOL's "Centaurus" technology platform.
Specification
BANDWIDTH 250MHz ANALOG CHANNELS 4 REAL-TIME SAMPLE RATE 1.25GSa/s MAX. MEMORY DEPTH 50Mpts WAVEFORM CAPTURE RATE 1,000,000 wfms/s DIGITAL CHANNELS 16(Probe opt.)
Description
The DHO900 series offers a 12-bit vertical resolution with 4096 levels of quantization, 16 times more precise than 8-bit resolution. This upgrade significantly enhances waveform measurement accuracy, particularly in critical applications like power ripple testing and medical equipment detection.

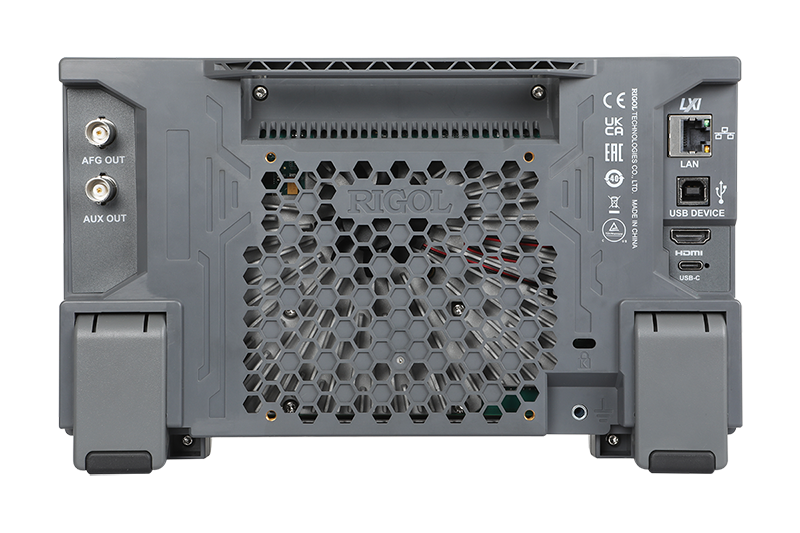

The Type-C power supply interface design of the DHO900 series allows the device to be powered by a single portable power bank, meeting the requirements of on-site chip testing and circuit maintenance, among other applications.
