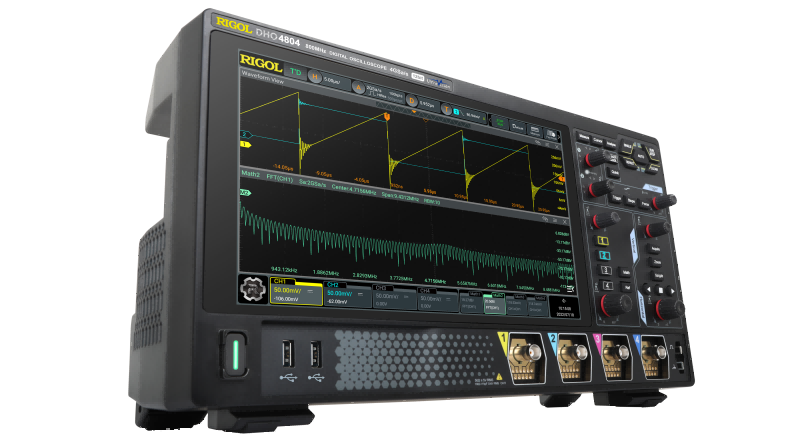

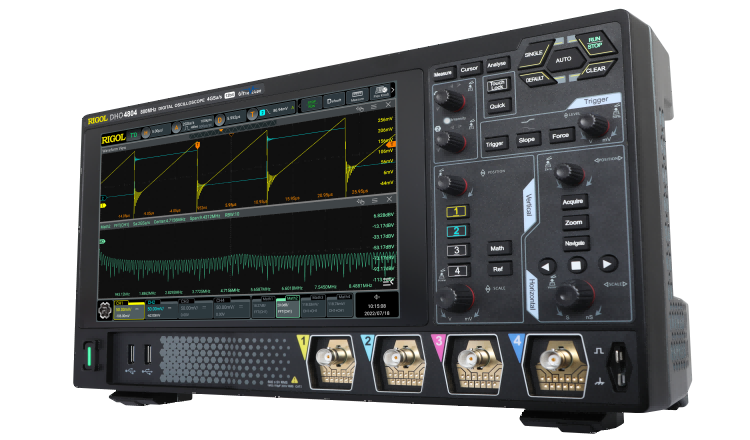

Digital Oscilloscope DHO4000 Series
-
NG # 001006-HW-Regol-006
Manufactured by:
This
seller generally responds in under 48 hours
The DHO4000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.
Specification
- Brand-new chipset "Centaurus" developed by RIGOL
- Ultra-low noise floor at 18 μVrms in minimum
- 12-bit vertical resolution[1]
- 200/400/800 MHz analog bandwidth (selectable), 4 analog channels, and 1 EXT channel
- Up to 4 GSa/s real-time sample rate
- Max. memory depth: 500 Mpts (optional)
- Min. vertical sensitivity: 100 μV/div
- Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode

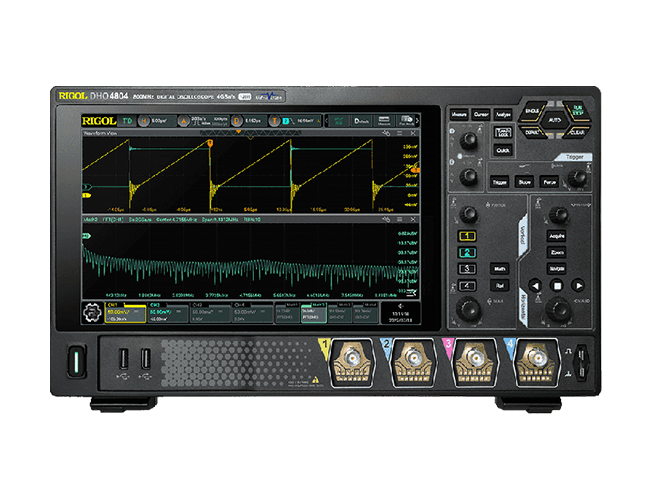

- 10.1'' 1280*800 HD touch display
- User-friendly Flex Knobs, bringing smoother interaction
- Standard photoelectric encoder operating knobs, effectively prolonging its service life

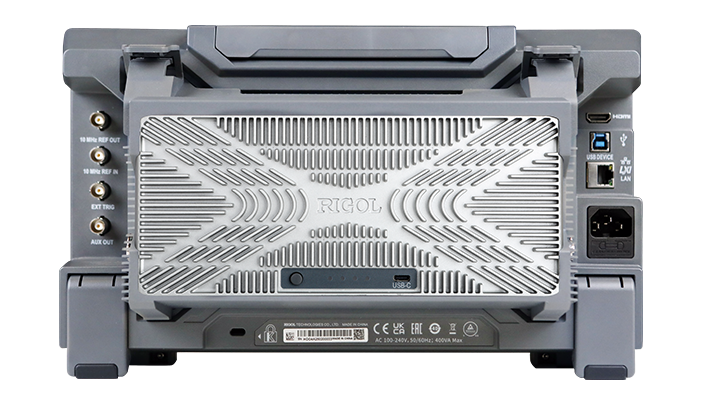

- Standard USB Device & Host, LAN, and HDMI interfaces
- Optional battery pack in a highly portable package for unlimited freedom
- Support online version upgrade
Description
All DHO4000 series oscilloscopes are equipped with Rigol's second generation "Centaurus" chipset, which provides 12-bit support.This allows the DHO4000 series oscilloscopes to capture waveforms 16 times more accurately and clearly than their predecessors' 8-bit counterparts.
