| Product Name | Dual-axis Turntable |
| Model | A230-Ⅱ |
| Compatible Devices | POP, POP 2, POP 3, MINI, RANGE, MINI 2, RANGE 2, INSPIRE, MIRACO, MIRACO Pro, POP 3 Plus, MIRACO Plus, MetroX, MetroX Pro, MetroY Pro |
| Weight | About 771 g (≈ 1.7 lbs) |
| Max Load | 5 kg (≈ 11 lbs) |
| Rotation Control | Via Buttons / APP (Revo scan/Revo assistant) |
| Certifications | CE/FCC/ROHS/KC/CCC/UL/NCC/PSE |
| Parts Included | Multi-region Adapter × 1, Turntable Topper × 1, Dual-axis Turnable × 1, Power Cable × 1, Reusable Sticky Pad × 1 |
| Power Output | 12V/2A |
| Dimensions | (D) 200 mm × (H) 82 mm |
| Turntable Speed | 18 - 90 Seconds per Rotation |
| Color | Black |
| Controls | Direction, Tilt, Speed, and Start / Pause |

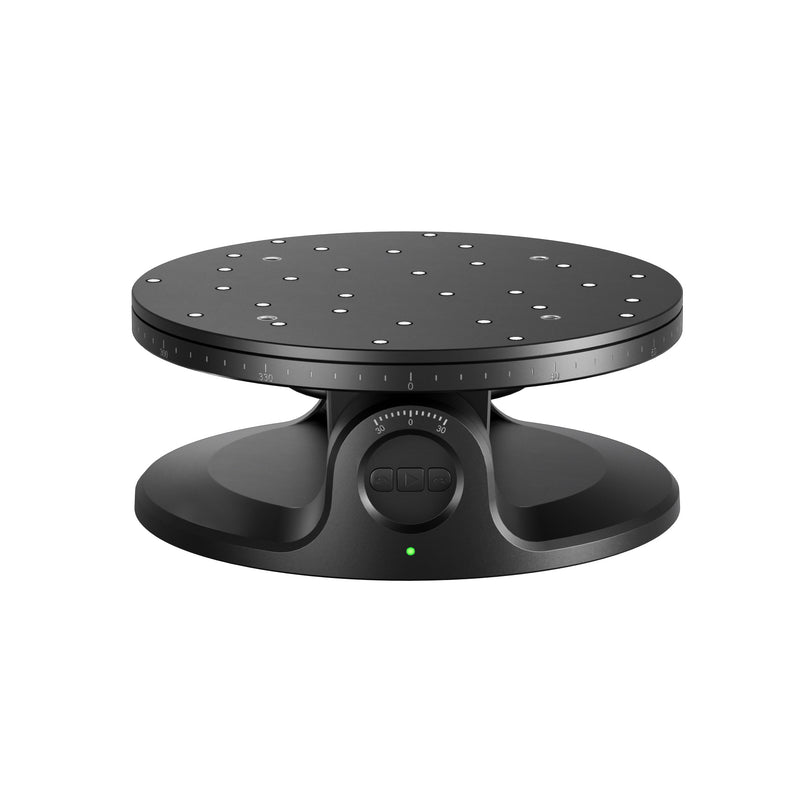

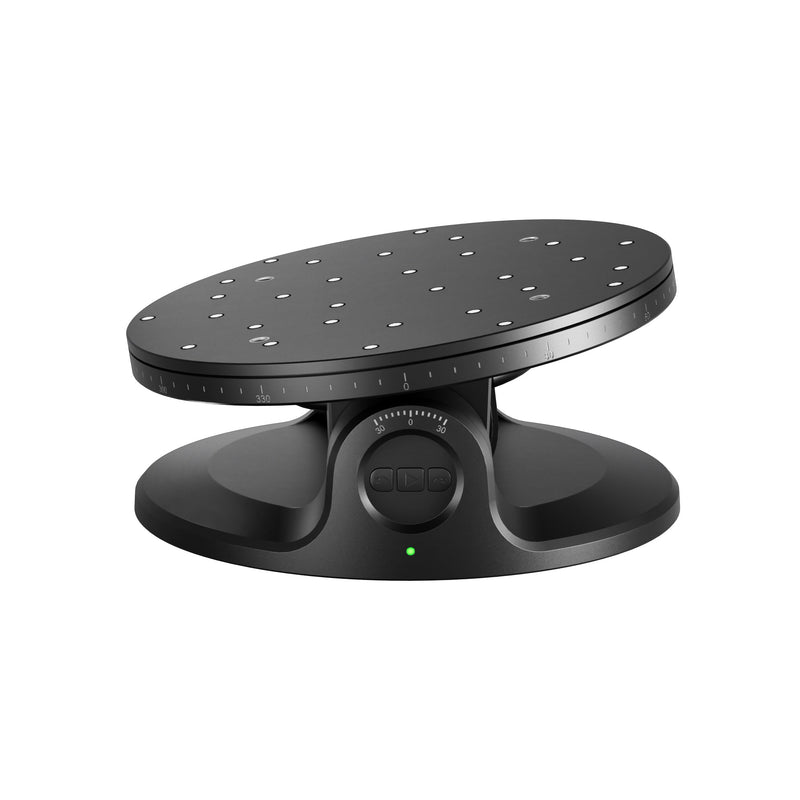

The Dual-axis Turntable offers a 360° clockwise or counterclockwise rotation, ±30° tilt, and adjustable speed, making it easier to acquire accurate cloud points. It eliminates the need for manual adjustments of the object’s position when scanning and enables more of the object to be captured by the scanner’s field of view.
