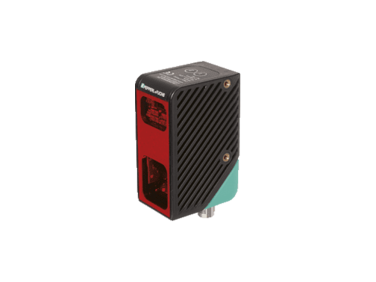

Pepperl+Fuchs Laser light sensor VLE700-F280-B12-1200
TF:
003406-HW-Pepperl-OO6
Overview
Laser light sensor VLE700-F280-B12-1200 Height profile output Area image output Resolution 1280 x 960 pixel Intelligent exposure time control .
| Measurement range | X = 60 ... 345 mm ; Z = 100 ... 700 mm | |
| Light source | laser diode | |
| Light type | red laser + Integrated LED lightning red 650 nm | |
| Laser nominal ratings | ||
| Note | VISIBLE LASER RADIATION , DO NOT STARE INTO BEAM DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS | |
| Laser class | 1 | |
| Wave length | Measuring laser: 660 nm | |
| Pulse length | Measuring laser: 0.5 ms | |
| Maximum optical power output | Measuring laser: 15 mW | |
| Laser monitoring | The safety system switches off the laser when the laser current is too high | |
| Scan rate | 30 s-1 | |
| Resolution | X>0.1 mm; Z>0.2 mm at 100 mm distance X>0.3 mm; Z>2.0 mm at 400 mm distance X>0.5 mm; Z>5 mm at 700 mm distance | |
| Camera | ||
| Number of pixels | 1280 x 960 pixels | |
| MTTFd | 20 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Operation indicator | LED green | |
| Diagnostics indicator | LED yellow / red | |
| Function indicator | Trigger: LED yellow | |
| Control elements | 2 push-buttons | |
| Operating voltage | 24 V ± 20 % , PELV | |
| No-load supply current | max. 250 mA | |
| Power consumption | max. 6 W , Outputs without load | |
| Interface type | Ethernet | |
| Protocol | TCP/IP | |
| Transfer rate | 100 MBit/s | |
| Input voltage | 24 V | |
| Number/Type | External triggering + 1 Input | |
| Switching threshold | low: < 2.5 V, high: > 8 V | |
| Standard conformity | ||
| Noise immunity | EN 61000-6-2:2005 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Degree of protection | EN 60529 | |
| Shock and impact resistance | EN 60068-2-27:2009 | |
| Laser class | IEC 60825-1:2007 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE | |
| Operating temperature | -20 ... 45 °C (-4 ... 113 °F) , (noncondensing; prevent icing on the lens!) | |
| Storage temperature | -20 ... 70 °C (-4 ... 158 °F) | |
| Degree of protection | IP67 | |
| Connection | 8-pin, M12 x 1 connector ( supply + Inputs/Outputs ) + 4-pin, M12x1 socket, D-coded (LAN) ; can be rotated 90° ; | |
| Material | ||
| Housing | PC/ABS | |
| Optical face | Plastic pane | |
| Mass | approx. 125 g | |
| Tightening torque, fastening screws | max. 2 Nm | |
| Dimensions | ||
| Height | 85 mm | |
| Width | 38 mm | |
| Depth | 55 mm | |
Introducing a precision laser light sensor designed for profile matching, boasting a remarkable resolution of 1280 x 960 pixels. With a wide measuring range of X = 60 to 345 mm and Z = 100 to 700 mm, coupled with a swift scan rate of 30 scans per second, this sensor delivers accuracy and efficiency.
Featuring an Ethernet TCP/IP interface, it ensures seamless connectivity for streamlined data transfer and analysis.
