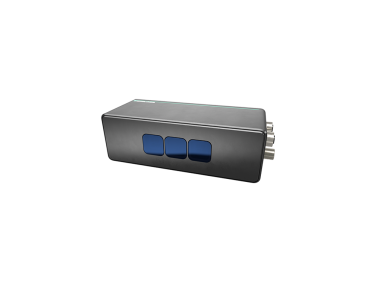

Pepperl+Fuchs 3-D stereo sensor VSE1000-F400-B12-A1000
TF:
003403-HW-Pepperl-OO3
Overview
The sensor uses stereo-vision technology and structured light to capture objects in 3-D. It can acquire raw 3-D data at a range of 300 to 900 mm with an image.
| Detection range | max. 900 mm |
| Measurement range | horizontal: 400 mm, vertical: 300 mm, deep : 300 mm |
| Light source | LED projector |
| Light type | Infrared Wave length 850 nm |
| Light direction | Structured light |
| Target velocity | max. 1 m/s |
| Object reflectivity | > 18 % |
| Picture detail | dependant of operating distance |
| Depth of focus | max. 300 mm |
| Resolution | X 0.5 mm, Y 0.5 mm, Z 1 mm at 900 mm read distance |
| MTTFd | 20 a |
| Mission Time (TM) | 10 a |
| Diagnostic Coverage (DC) | 0 % |
| Operating voltage | 24 V ± 20 % , PELV |
| No-load supply current | max. 450 mA |
| Power consumption | max. 10 W , Outputs without load |
| Control input | 1 digital input and External trigger |
| Degree of protection | IP65/IP67 |
| Installation | M5 screws |
| Mass | approx. 800 g |
| Tightening torque, fastening screws | max. 2 Nm |
The sensor uses stereo-vision technology and structured light to capture objects in 3-D. It can acquire raw 3-D data at a range of 300 to 900 mm with an image resolution of 1.4 MP and a frame rate of 10 fps.
The sensor features a Gigabit Ethernet interface, intuitive operating software, rugged metal housing, and an API interface. As a raw data sensor, it is suitable for a variety of applications that require detailed contour detection.
