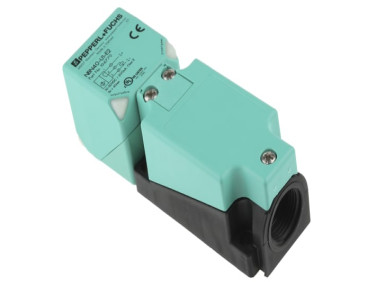

Pepperl + Fuchs Inductive Block Proximity Sensor, 40 mm Detection, PNP NO, 10 → 30 V dc
TF:
003425-HW-Pepperl-O25
| Sensor Technology | Inductive |
| Body Style | Block |
| Detection Range | 40 mm |
| Digital Switching Output Type | PNP |
| Output Function | NO |
| Connection Type | Screw Terminal |
| Supply Voltage | 10 → 30 V dc |
| IP Rating | IP69K |
| Length | 118mm |
| Mounting Type | Non-Flush |
| Housing Material | Polyamide |
| Width | 40mm |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25°C |
| Depth | 40mm |
| Short Circuit Overload Protection | Yes |
| Switching Frequency | 150 Hz |
| Maximum Operating Temperature | +85°C |
| Shielding | Unshielded |
| Switching Current | 200 mA |
| Reverse Polarity Protection | Yes |
| Maximum Switching Frequency | 150Hz |
Varikont DC Switch
New Varikont series of inductive proximity sensors with enhanced performance and environmental protection, yet in a dimensionally identical package.
Features and benefits
4 LEDs indicator for 360° all-round visibility
Tough PA & metal housing
M20 glandable cable entry
IP69K sealing
Block and Limit Switch Style
All dc switches in this range have reverse polarity and short circuit protection. Embeddable versions can be flush mounted in metal.
