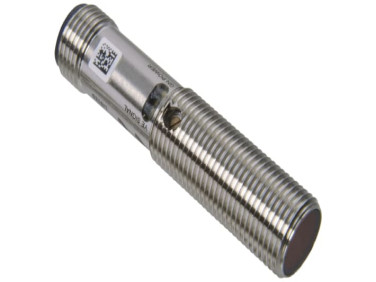

Pepperl + Fuchs Diffuse Photoelectric Sensor, Barrel Sensor, 0 → 300 mm Detection Range
TF:
003426-HW-Pepperl-O26
| Sensor Style | Barrel |
| Detection Type | Diffuse |
| Detection Range | 0 → 300 mm |
| Output Type | PNP |
| Electrical Connection | M12 4 Pin Connector |
| Maximum DC Voltage | 30V |
| Terminal Type | M12 4 Pin Connector |
| Light Source | LED |
| IP Rating | IP67 |
| Maximum Current | 100 mA |
| Response Time | 500 μs |
| Minimum Operating Temperature | -30°C |
| Housing Material | Brass |
| Mounting Type | Flange Mount |
| Maximum Operating Temperature | +60°C |
Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 300 mm detection range, red light, light/dark on, 1 PNP output, M12 plug
Robust M12 threaded housing
Less space required
Light/dark ON, programmable
