ML100G-56 Fanless Intel Core Ultra Industrial NUC
-
NG # 001204-HW-onelogic-004
Manufactured by:
This
seller generally responds in under 48 hours
Specification
System
| Hardware Line | Industrial (Fanless) |
| Cooling Type | Fanless |
| Processor Generation | Meteor Lake |
| Processor | Intel® Core™ Ultra 5 125UIntel® Core™ Ultra 7 155U |
| Processor Cores | 12 |
| Processor Clock Speed Notes | 125U: 1.3GHz-4.3GHz, 12 Cores 155U: 1.2GHz-4.8GHz, 12 Cores |
| LAN Controller | Intel® I226LMIntel® I226V |
| Motherboard Form Factor | NUC |
| Motherboard Memory Slots | 2 |
| Memory Type | DDR5 |
| Memory Capacity | 96 GB |
| Memory Clock Speed | 5600 MHz/second |
| Memory Channels | Dual Channel |
Display
| Number of Displays Supported | 4 |
Input Output

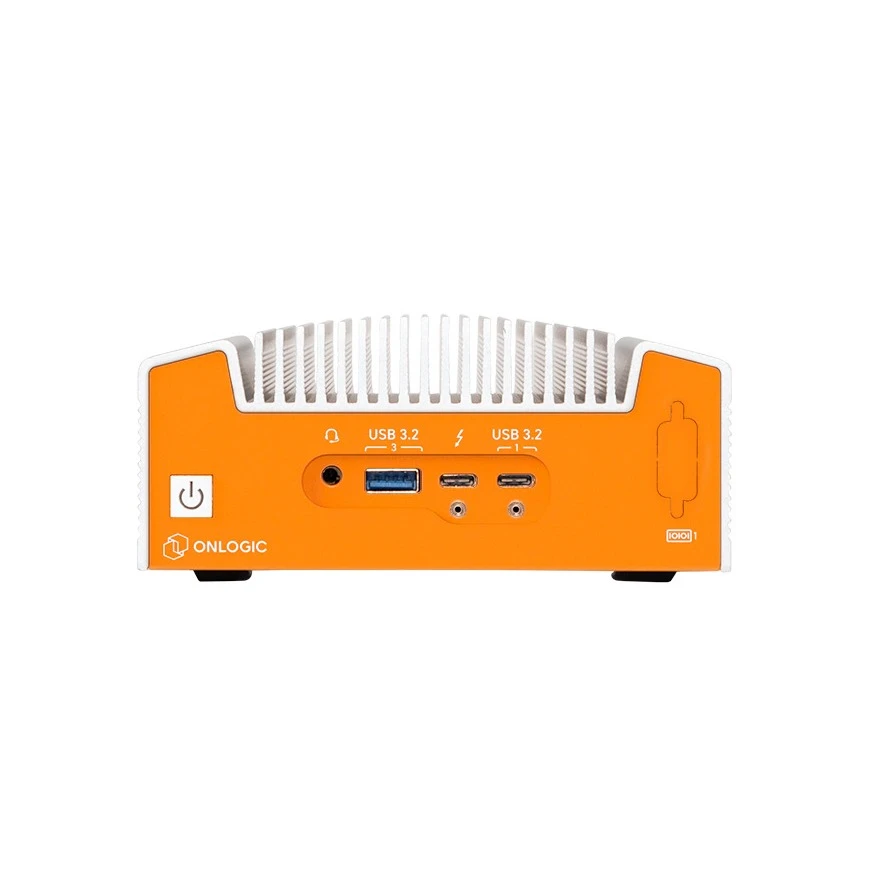

| Front I/O | 1 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, Supports DP 2.1 display output) 1 x USB3.2 Gen2 x2 (Type-C, 5V/3A, Supports DP1.4a display output) 1 Audio jack (Mic-in, Line-out) Power Button |

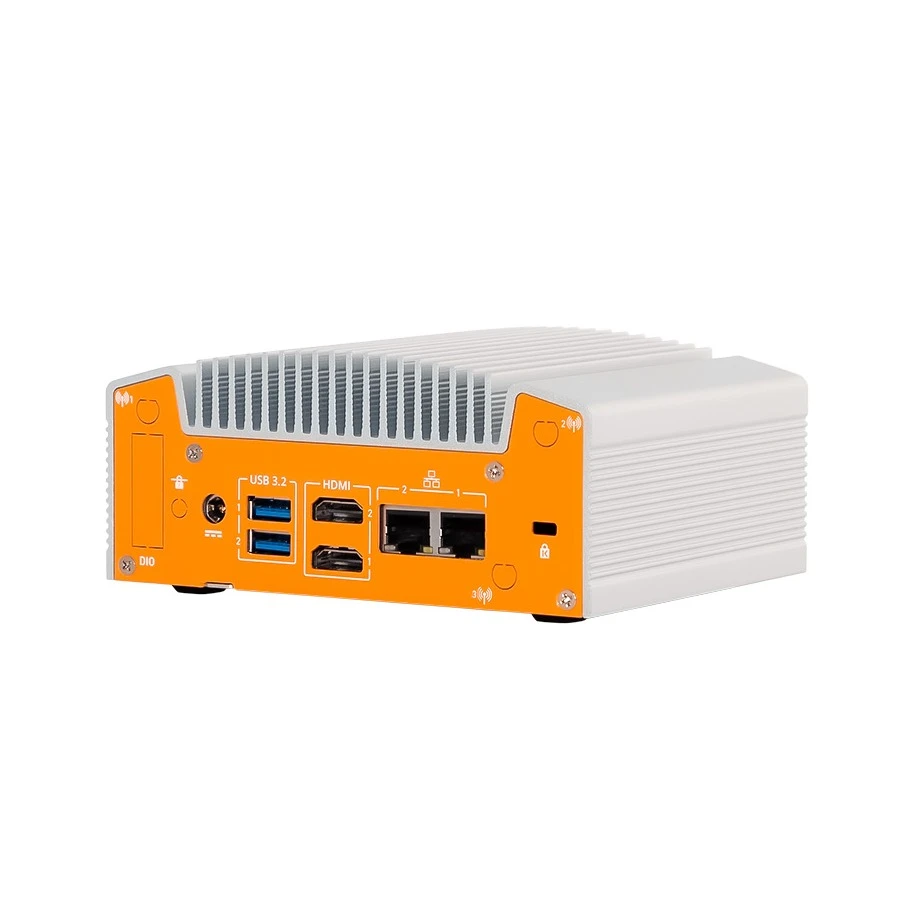

| Rear I/O | 2 x HDMI ports 2 x 2.5 GbE LAN port 2 x USB 3.2 Gen2 (Type A) DC Barrel Jack |
Expansion and Features
| Expansion Options | 1 M.2 2230 E-key |
| Motherboard Raid Support | 01 |
Mechanical
| Dimensions | 142 x 61.5 x 107 mm (5.6 x 2.4 x 4.2") |
| Case Material | Aluminum |
| Case Port Punchouts | 4 Antenna Holes |
| Case Mounting Options | DIN MountVESA Mount (MIS-D 75, 100)Wall Mount |
Power
| Input Voltage Minimum | 12 Volts |
| Input Voltage Maximum | 24 Volts |
| Power Input Connector | DC Jack |
Description
The ML100G-56 industrial NUC is powered by Intel® Core™ Ultra 5 or Core Ultra 7 processing, offering quad-display support with Intel® Arc™ graphics, dual LAN, Wi-Fi/Bluetooth, DIO and the protection of OnLogic Hardshell™ fanless technology.
