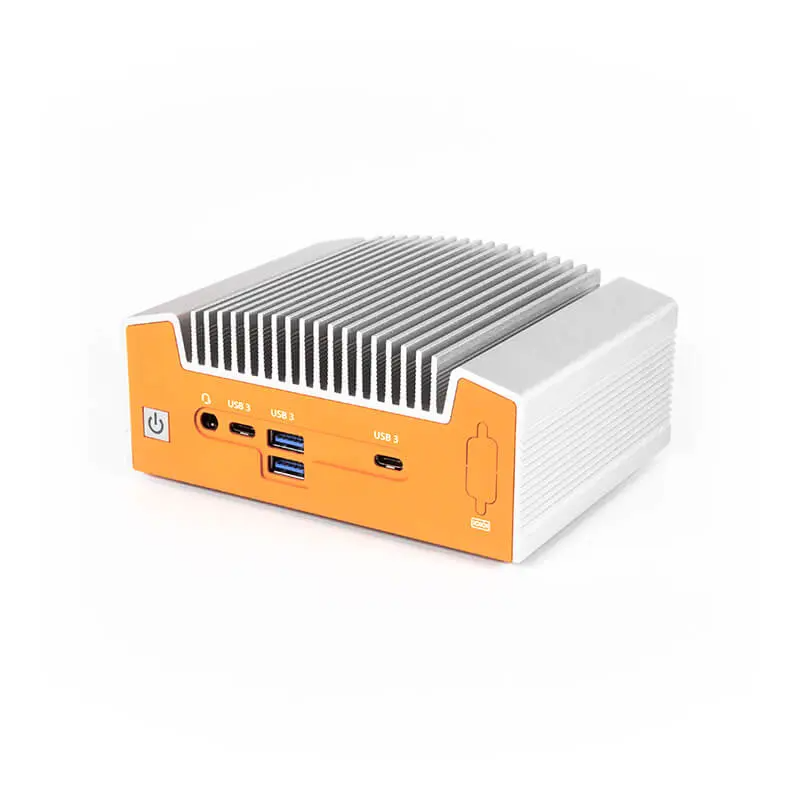

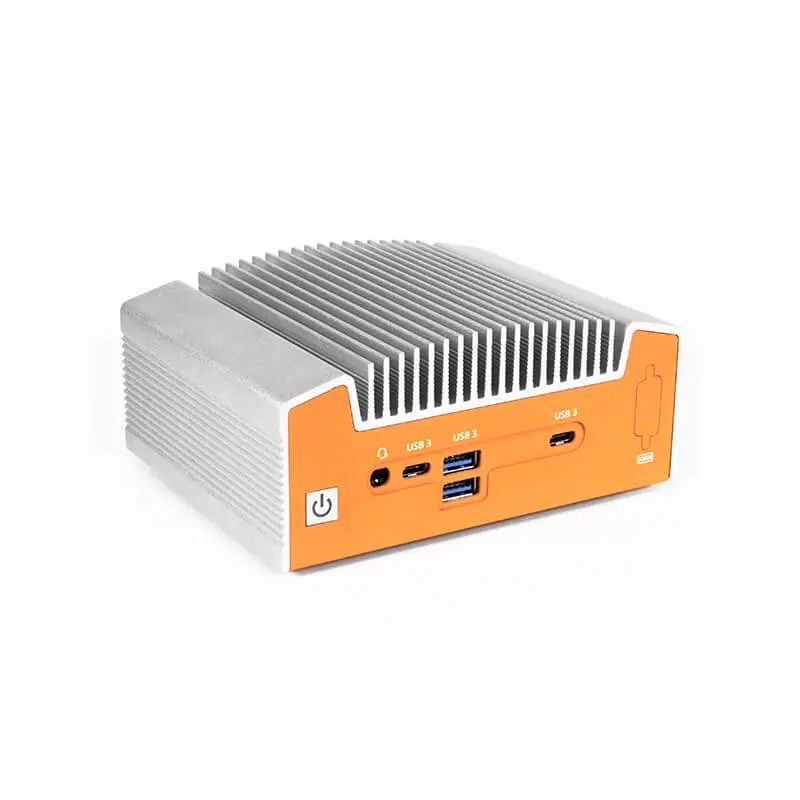

ML100G-53 Industrial Fanless Intel 11th Gen NUC
-
NG # 001214-HW-onelogic-014
Manufactured by:
This
seller generally responds in under 48 hours
Specification
System
| Hardware Line | Industrial (Fanless) |
| Cooling Type | Fanless |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Tiger Lake |
| Processor | Intel 11th Gen (Tiger Lake-UP3) |
| System Processor Core Options | 2 Core(s)4 Core(s) |
| Processor Clock Speed Notes | 1.8 GHz 4.10 GHz 4.20 GHz 4.70 GHz |
| Processor Model | Intel Core |
| Motherboard Chipset | Intel MCP |
| LAN Controller | Intel I219LM with 10/100/1000 MbpsIntel I225-LM with 10/100/1000/2500 Mbps |
| Motherboard Expansion Slots | 2 |
| Motherboard Form Factor | NUC |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | Intel Iris Xe (i5, i7) - Dual Channel memory requiredIntel UHD Graphics (Celeron, i3) |
| Memory Type | DDR4 |
| Memory Capacity | 64 GB |
| Memory Clock Speed | 3200 MHz/second |
| Memory Channels | Dual Channel |
Display
| Number of Displays Supported | 4 |
| Display Mounting Options | VESA Mount |
Input Output

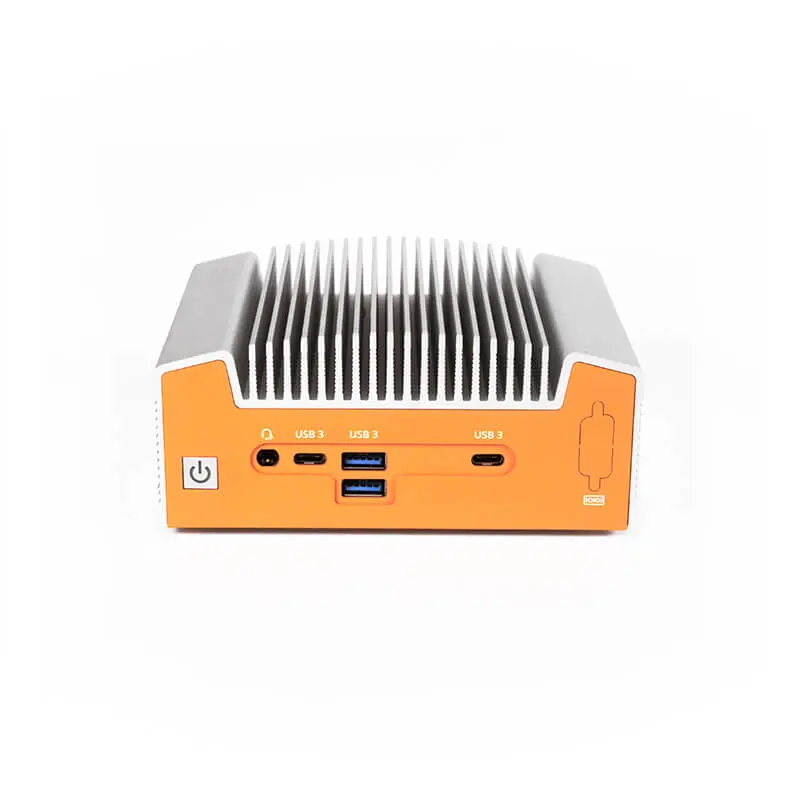

| Front I/O | 2 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C, Supports DP1.4 display output) 1 Optional COM port 1 headphone & microphone jack |
| Rear I/O | 1 DisplayPort connectors 1 HDMI port 1x1 Gb LAN ports 1x 2.5 Gb LAN ports 2 USB 3.2 Gen 2 (Type A) ports 1 DC jack |
Expansion and Features
| Expansion Options | 1 M.2 2230 E-key |
| Storage Options | 1 M.2 2242/60/80 M-key (SATA) |
| System Monitoring | Infinion SLB9670VQ2.0 |
Mechanical
| Dimensions | 142 x 62 x 111 mm 5.6" x 2.4" x 4.4" |
| Case Type (Chassis) | CompactFanless |
| Case Material | Aluminum ExtrusionSteel |
| Case Port Punchouts | 2 Antenna Holes |
| Case Mounting Options | DIN MountVESA MountWall Mount |
Power
| Input Voltage Minimum | 12 Volts |
| Input Voltage Maximum | 19 Volts |
| Input Voltage Type | DC |
| Input Voltage Conversion Note | 12~19 VDC |
| Power Input Connector | DC Jack |
Environmental and Safety
| Regulatory Certifications | CEEN 55035FCC 47 CFR Part 15 Subpart BREACHRoHS 3 (2015/863/EU)UKCAWEEE |
| Temperature (Operating Minimum) | 0 °C |
| Temperature (Operating Maximum) | 50 °C |
| Suitable Environments | General Office |
Description
The ML100G-53 industrial Intel® Tiger Lake NUC offers quad-display support, Intel Iris® Xe graphics and the protection of OnLogic Hardshell Technology.
