ML100G-41 Industrial Fanless AMD Ryzen 4000 Compact Computer
-
NG # 001211-HW-onelogic-011
Manufactured by:
This
seller generally responds in under 48 hours
Specification
System
| Hardware Line | Industrial (Fanless) |
| Cooling Type | Fanless |
| Processor Socket | Onboard (BGA) |
| Processor Generation | Renoir |
| Processor | AMD Ryzen™ 7 4800U, AMD Ryzen V2516, AMD Ryzen V2718 |
| System Processor Core Options | 4 Core(s)8 Core(s) |
| Processor Clock Speed Notes | 2.7GHz/1.8 GHz |
| Processor Model | AMD Ryzen |
| LAN Controller | Realtek RTL8111GN 10/100/1000Realtek RTL8125BG with 10/100/1000/2500 Mbps |
| Motherboard Form Factor | NUC |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | AMD Radeon™ Graphics |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 64 GB |
| Memory Clock Speed | 3200 MHz/second |
| Memory Channels | Dual Channel |
Display
| Number of Displays Supported | 4 |
| Display Mounting Options | VESA Mount (MIS-D 100) |
Input Output

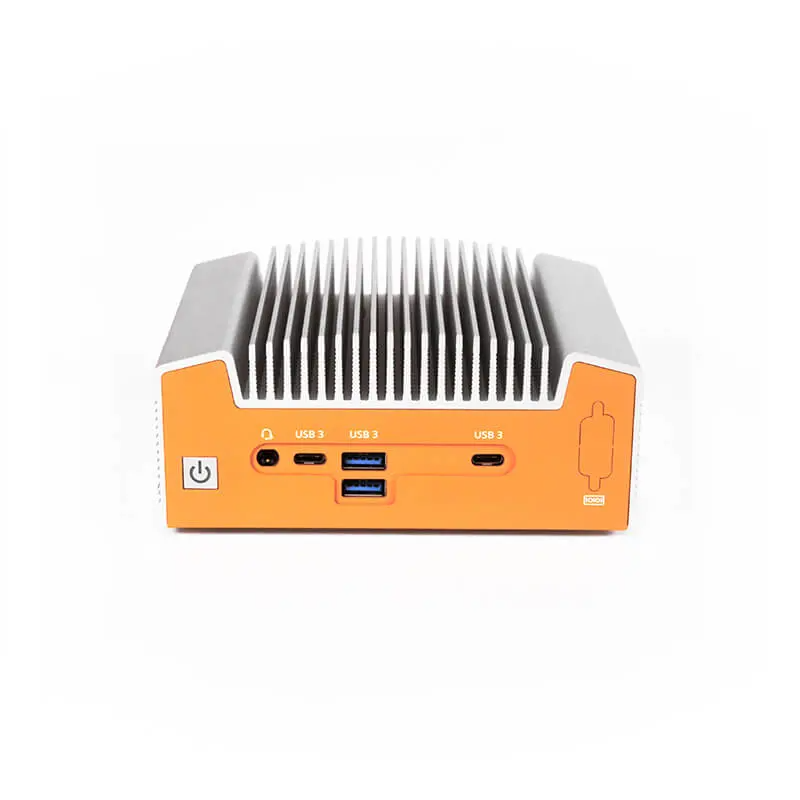

| Front I/O | 2 x USB 3.2 Gen2 (Type A) 2 x USB 3.2 Gen2 (Type C) (Supports DP1.2a display output) 1x (headphone & microphone jack 1x Optional COM port |
| Rear I/O | 2 x USB 2.0 1x HDMI Port 1x DisplayPort 1x GbE Port 1x 2.5 GbE Port |
Expansion and Features
| Expansion Options | 1 M.2 2230 E-key |
| Storage Options | 1 M.2 2280 (PCIe Gen 4.0 x4, SATA) |
Mechanical
| Dimensions | 142 x 62 x 101 mm 5.6" x 2.4" x 4.4" |
| Case Type (Chassis) | CompactFanless |
| Case Material | Aluminum ExtrusionSteel |
| Case Port Punchouts | 4 Antenna Holes |
| Case Mounting Options | DIN MountVESA Mount (MIS-D 100)Wall Mount |
Power
| Input Voltage Minimum | 12 Volts |
| Input Voltage Maximum | 12 Volts |
| Input Voltage Type | DC |
| Input Voltage Conversion Note | 12 VDC |
| Power Input Connector | DC Jack |
Environmental and Safety
| Regulatory Certifications | CEEN 55024EN 55032EN 55035EN 62368-1FCC 47 CFR Part 15 Subpart BREACHUKCAWEEE |
| Temperature (Operating Minimum) | 0 °C |
| Temperature (Operating Maximum) | 50 °C |
| Suitable Environments | General OfficeIndustrial |
Description

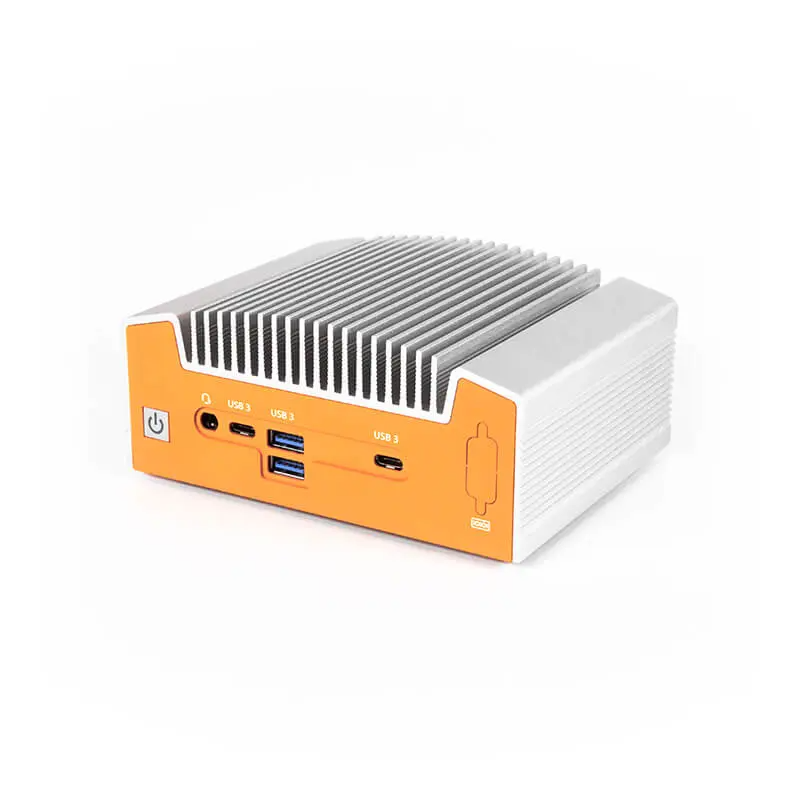

The ML100G-41 fanless AMD Ryzen compact computer offers quad-display support, AMD Radeon™ graphics and the protection of OnLogic Hardshell Technology.
