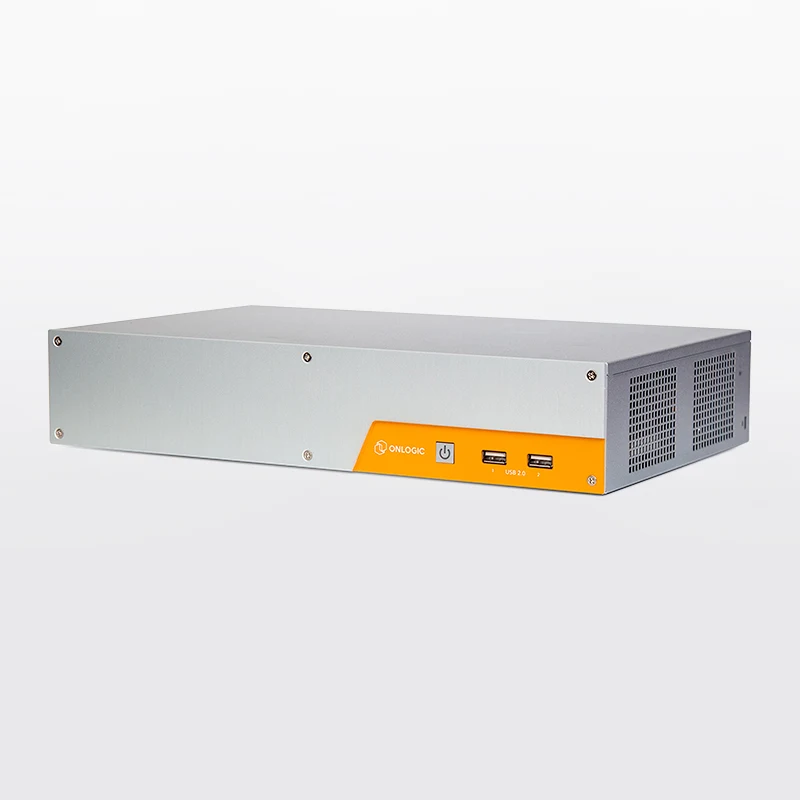

MC610-55 Intel® 13th Gen GPU Computer
-
NG # 001207-HW-onelogic-007
Manufactured by:
This
seller generally responds in under 48 hours
Specification
System
| Hardware Line | Industrial (Fanned) |
| Cooling Type | Actively Cooled |
| Processor | Socket LGA 1700 - Raptor/Alder Lake S |
| LAN Controller | 2 Intel i225-LM/i225V (vPro not supported) |
| Motherboard Memory Slots | 2 |
| Memory Type | DDR4 |
| Memory Capacity | 64 GB |
Display
| Display Mounting Options | VESA Mount |
Input Output

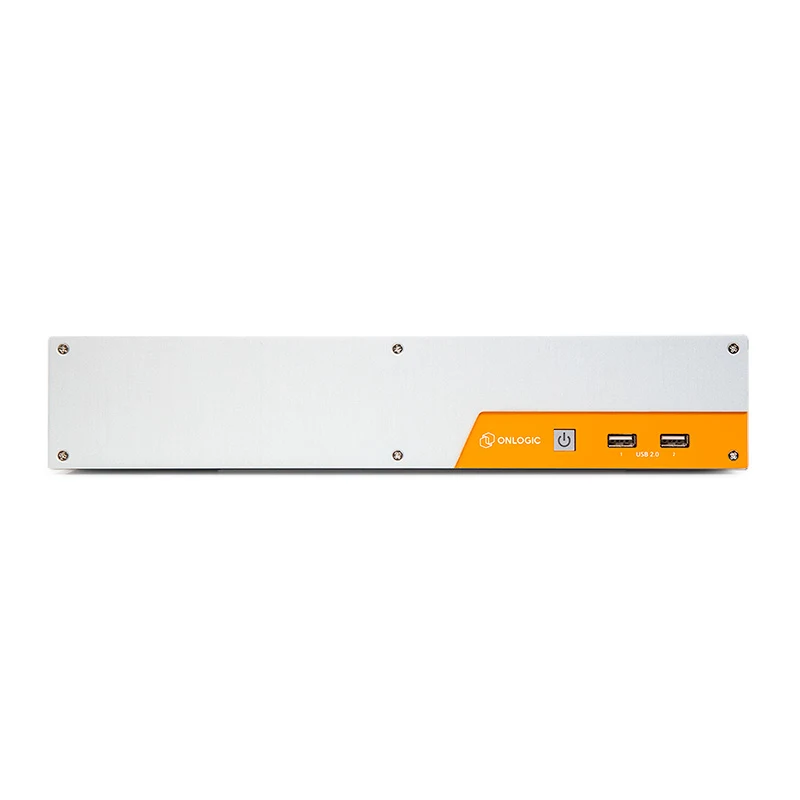

| Front I/O | 1x Power button with LED indicator 2x USB 2.0 |

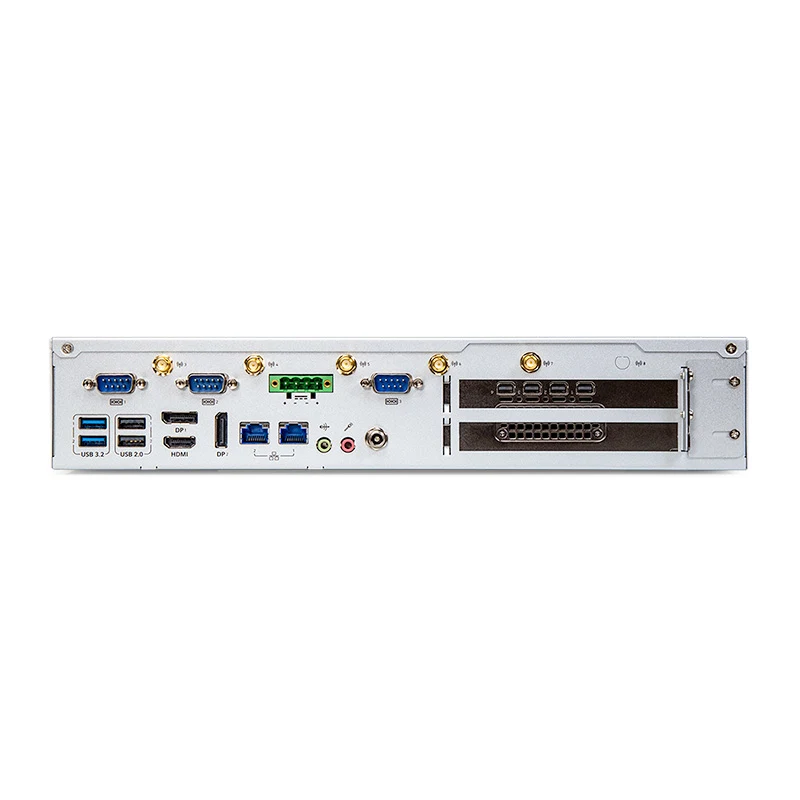

| Rear I/O | 2x Full size DisplayPort 1.4a++ 1x HDMI 2.0b 2x 2.5Gb LAN (2 x Intel) 2x USB 3.2 (Gen2) 2x USB 2.0 2x Audio (Mic-in, Line-out) Optional 3x COM (2x RS-232/422/485, 1x RS-232) DC-In |
| Onboard I/O | 1x Battery on a cable 1x LVDS Panel Connector - eDP Connector (on the Backside of PCB) |
Expansion and Features
| Expansion Options | 1 M.2 (Key B; 3042/3052) with PCIe x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G1 M.2 (Key E; 2230) with PCIe x1, USB 2.0 and CNVi for Wireless1 M.2 (Key M; 2242/2260/2280) with PCIe Gen3 x4 for SSD1 PCIe x16 slot (Gen 4) |
| System Monitoring | On-Board TPM 2.0 (embedded)PTT in BIOSWatchdog Timer |
Mechanical
| Dimensions | 333.7mm x 63.5mm x 199.6 mm (13.1" x 2.5" x 7.9" ) Board Dimensions 170 mm x 170 mm (6.7" x 6.7") |
| Case Port Punchouts | 8 Antenna Holes |
| Case Mounting Options | DIN MountVESA MountWall Mount |
Power
| Input Voltage Conversion Note | 12~28V |
| Power Input Connector | 4-pin Terminal Block |
Environmental and Safety
| Regulatory Certifications | CISPR 32/35 & EN 55032/55035WEEE Directive (2012/19/EU)EN 63268-1FCC 47 CFR Part 15 (Class A)IEC 60601-1-2 (EMC testing only)IEC/UL/EN 62368-1RoHS 3 (2015/863/EU) |
| Temperature (Operating Minimum) | 0 °C |
| Temperature (Operating Maximum) | 40 °C |
| Humidity (Non-Condensing Operating Minimum) | 0 % |
| Humidity (Non-Condensing Operating Maximum) | 85 % |
Description
An actively cooled industrial computer offering an embedded lifecycle of at least 5 years and powered by Intel 12th or 13th gen CPUs. The MC610-55 is compatible with a range of GPUs and expansion cards for AI, ML, and other advanced automation applications.
