Helix 610 Intel Comet Lake Industrial Edge Computer With Optional Hot Swap Storage
-
NG # 001215-HW-onelogic-015
Manufactured by:
This
seller generally responds in under 48 hours
Specification
System
| Hardware Line | Industrial (Fanless) |
| Cooling Type | Fanless |
| Processor Socket | LGA1200 |
| Processor Generation | Comet Lake |
| Processor | Intel Comet Lake Core i3/i5/i7/i9 |
| System Processor Core Options | 2 Core(s)4 Core(s)6 Core(s)8 Core(s)10 Core(s) |
| Processor Clock Speed Notes | Up to 3.00 GHz (G5900TE) Up to 3.60 GHz (i3-10100TE) Up to 3.70 GHz (i5-10500TE) Up to 4.40 GHz (i7-10700TE) Up to 4.60 GHz (i9-10900TE) |
| Processor Model | Intel Celeron ; Intel Core |
| Motherboard Chipset | Intel Q470E |
| LAN Controller | Intel I210 GbEIntel I219 GbE |
| Motherboard Expansion Slots | 2 |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | Intel UHD Graphics 630 |
| Memory Type | DDR4 SO-DIMM (non-ECC) |
| Memory Capacity | 64 GB |
| Memory Channels | Dual Channel |
Display
| Number of Displays Supported | 3 |
Input Output

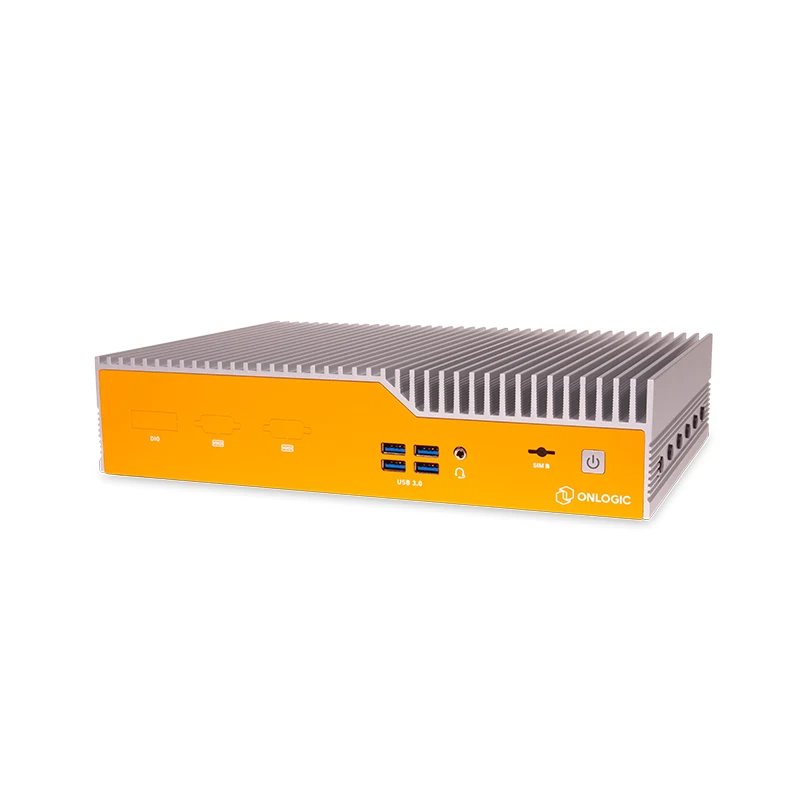

| Front I/O | 4 USB 3.2 Gen 2 ports 1 Power Button 1 SIM Card 1 Audio jack; line-out, mic-in (optional) 2 RS-232/422/485 COM (optional) Isolated DIO (optional) |

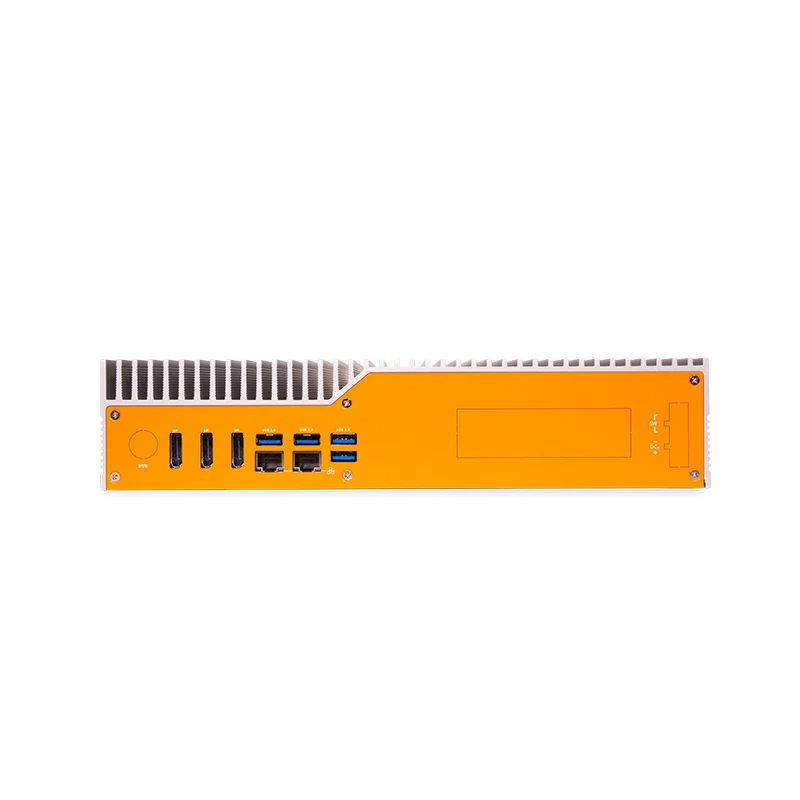

| Rear I/O | 2 USB 3.2 Gen 2 ports 2 USB 3.2 Gen 1 ports 2 Gb LAN ports 3 DisplayPorts 1 12 ~ 24 V, 4-pin DC jack (Terminal block input optional) |
Expansion and Features
| Expansion Options | 1 M.2 2230 E-key (PCIe, USB 2.0, CNVi)1 M.2 2280 M-key (PCIe x4, SATA)1 M.2 2280/3042 B-key (PCIe x2, USB 3.0, SATA)1 mPCIe (PCIe x1, USB 2.0) |
| Storage Options | 1 M.2 2280 M-Key (PCIe x4, SATA)1 M.2 2280/60/3042 B-key (PCIe x2, USB 3.0, SATA)2 SATA III 2.5" Drives |
Mechanical
| Dimensions | 303 x 65 x 210 mm (11.93 x 2.56 x 8.27") |
| Case Type (Chassis) | Fanless |
| Case Material | Aluminum |
| Case Port Punchouts | 6 Antenna Holes |
| Case Mounting Options | DIN MountWall Mount |
Power
| Input Voltage Minimum | 12 Volts |
| Input Voltage Maximum | 24 Volts |
| Input Voltage Type | DC |
| Input Voltage Conversion Note | 12~24 VDC |
| Power Automotive Features | Wide Input |
| Power Input Connector | 4-pin Mini-DIN4-pin Terminal Block (Optional) |
Environmental and Safety
| Regulatory Certifications | CEEN 55024EN 55032EN 55035EN 60950-1EN 62368-1FCC 47 CFR Part 15 Subpart BREACHRoHS 3 (2015/863/EU)UKCAWEEE |
| Temperature (Operating) Notes | 0 ~ 50°C (selecting some expansion options may limit the system's operating temperature range) |
| Suitable Environments | DustGeneral OfficeIndustrial |
| Humidity (Non-Condensing Operating Minimum) | 0 % |
| Humidity (Non-Condensing Operating Maximum) | 90 % |
Description

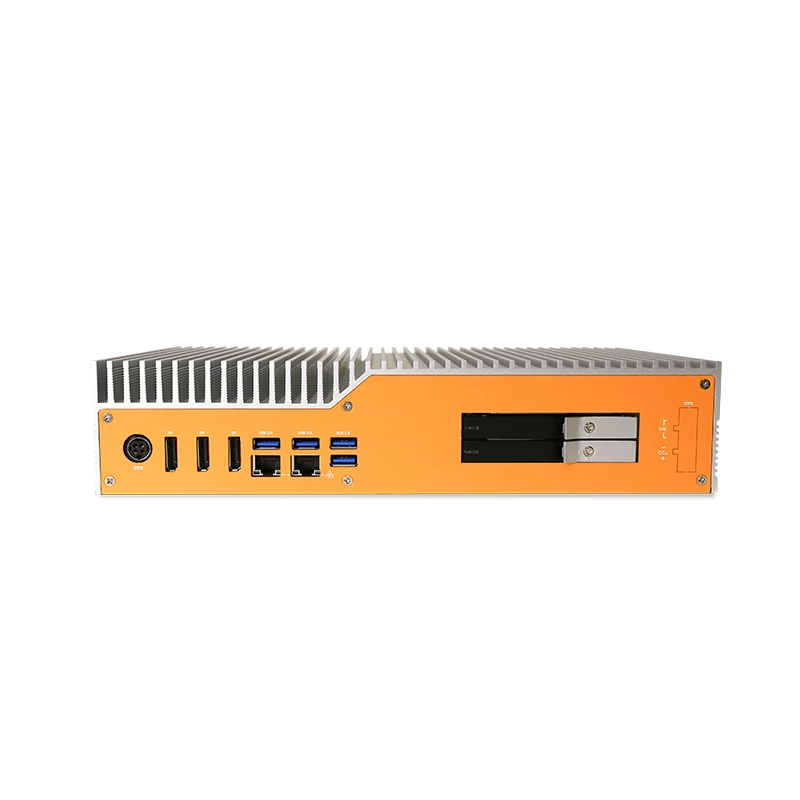

Helix 610 packs Intel® 10th Gen Comet Lake Core processing into a fanless, solid state platform with optional hot swap storage and other expansion options
