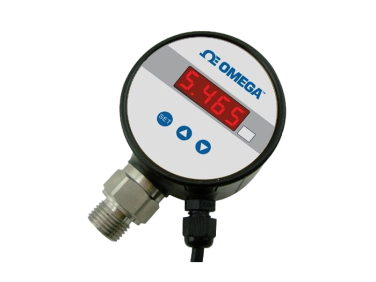

Omega Stainless Steel DC Loop Powered Digital Pressure Gauge
2249-HW-Omega-020
Overview
DPG110 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane.
| Display Units | Select one of the following: psi, bar, kPa, MPa, kg/cm2 |
| Measuring Range | 0 to 20 Mpa, (0 to 2900 psi) |
| Display Type/Size | 4 Digit 0.56" LED screen |
| Accuracy | 0.25% FS for gauge pressure >5psi |
| Power | 12 to 32 Vdc |
| Stability | ±0.2% FS per year |
| Output Signal | 4 to 20 mA |
| Case Protection | IP65 |
| Operating Temperature | -30 to 80ºC (-22 to 176ºF) |
| Operating Humidity | <90% |
| Medium Temperature | -40 to 150ºC (-40 to 302ºF) |
| Overpressure Limits | 3x rated pressure below 60 psi; 2x rated pressure from 100 to 1000psi; 1.5 x rated pressure over 1000 psi |
| Process Connection | ¼" NPT, others consult Omega |
| Wetted Parts | 316 SS threads, NBR O-ring |
| Storage Temperature | -20 to 70ºC (-4 to 160ºF), less than 80% relative humidity |
DPG110 is an electronic digital pressure gauge used to monitor hydraulic fluids. It monitors the pressure via the resistance measured on an isolation membrane. The output signal is amplified by a high-precision, low-temperature drift amplifier. The signal is then fed into a high accuracy A/D converter for the microprocessor to process and then show on the LED display.
This flexible, simple to operate digital pressure gauge is safe, reliable and easy to maintain. The DPG110 is widely used in hydro-power, water, petroleum, chemical, mechanical, hydraulic, and other industries.
Intelligent Two-Wire System 4 to 20 mA Working Mode, 4-Digits 0.56' Digital LED Display. Full Digital Push-Button Calibration for Zero and Full Scale, No Potentiometers, Low-Temperature Drift. Reinforced Anti-Jamming Design is Suitable for the Electromagnetic Environment and Harsh Industrial Environments
