Omega DPG8001-10K
002252-HW-Omega-023
Overview

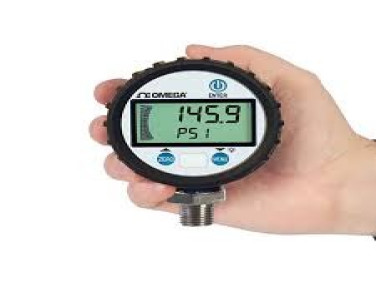

The DPG8001 Series of digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit, and the price is comparable to mechanical test gauges. All Stainless Steel wetted parts make them suitable for a wide variety of industrial liquids and gaseous media. This series features user-selectable engineering units, allowing one gauge to be used for a variety of pressure scales. The DPG8001 comes standard with many features that are either not available or extra cost options on many competitive digital gauges such as a tare, 20 segment bar graph MIN/MAX Memory, 9 selectable engineering units and backlighting for easy reading.
| Category | |
| Manufacturer | Omega |
| Series | DPG8001 |
| Packaging | Bulk |
| Part Status | Active |
| Applications | Industrial Automation |
| Pressure Type | Gauge |
| Operating Pressure | 10000PSI (68947.57kPa) |
| Output Type | Digital |
| Output | - |
| Accuracy | ±0.25% |
| Voltage - Supply | - |
| Port Size | Male - 1/4" (6.35mm) NPT |
| Port Style | Threaded |
| Features | - |
| Termination Style | - |
| Maximum Pressure | 12000PSI (82737.09kPa) |
| Operating Temperature | -20°C ~ 60°C |
DPG8001 Series of digital pressure gauges offer 0.25% full scale terminal point accuracy in a rugged easy-to-use unit, and the price is comparable to mechanical test gauges. All Stainless Steel wetted parts make them suitable for a wide variety of industrial liquids and gaseous media. This series features user-selectable engineering units, allowing one gauge to be used for a variety of pressure scales. The DPG8001 comes standard with many features that are either not available or extra cost options on many competitive digital gauges such as a tare, 20 segment bar graph MIN/MAX Memory, 9 selectable engineering units and backlighting for easy reading.
