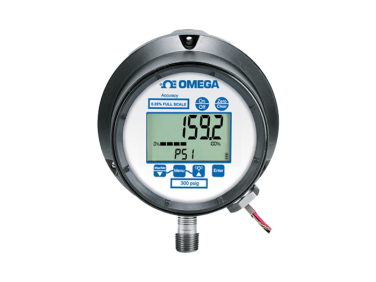

Omega Digital Pressure Gauge with Optional Output and Alarms
-
NG # 2236-HW-Omega-007
-
MF # DPG1000B-100G
Manufactured by:
Specification
| Burst Pressure | 4x rated pressure min |
| Input Type | -30 inHg to 100 psig |
| Maximum Ambient Temperature | 85°C (185°F) |
| Maximum Storage Temperature | 95°C (203°F) |
| Measurement Units | PSIG |
| Number of Display Digits | 3.5 |
| Pressure Units | Gauge can be factory-scaled to any engineering unit such as psi |
| Wetted Materials | 316 Stainless Steel |
| Accuracy Value | ±0.25% |
| Display Digit Height | 13 mm |
| Maximum Amp Rating | 0.005 |
| Measurement Type | Pressure |
| Minimum Storage Temperature | -55°C (-67°F) |
| Repeatability | +/-0.10% FSO or better |
| Sample Rate | 3 readings per second |
Description
The DPG1000 series is a versatile family of industrial pressure/vacuum gauges. All DPG1000 models feature a large (½"/13 mm H) 3½ digit display in a rugged, splashproof extruded aluminum case. A 1/4 -18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel. The DPG1000 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure/vacuum ranges with both gauge and absolute references are available. The DPG1000 series also features ±0.25% accuracy, 2X overpressure and 4X burst specifications.
AVAILABLE MODELS INCLUDE THE FOLLOWING:
DPG1000B - Battery powered
DPG1000L - Loop powered with 4-20 mA output
DPG1000AD - ac/dc powered
DPG1000ADA - ac/dc powered with dual alarms
DPG1000DAR - dc powered with dual alarms and analog output
The DPG1000 is also available with a NEMA 4X rated enclosure. Please see the DPG1100">DPG1100 for complete details, or contact our Pressure department for more information.
The DPG1000 is also available with ±0.10% Accuracy. Please see the DPG1001">DPG1001 for complete details, or contact our Pressure department for more information.
