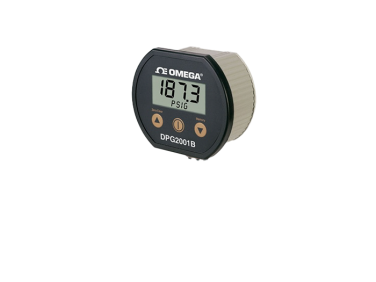

Omega Digital Pressure Gauge with Measurement Memory
TF:
2246-HW-Omega-017
MF:
DPG2001B-15A
Overview
The DPG2001B series have the ability to store 6 readings, have an optional NEMA 4X housing, and have a ±0.25% accuracy.
| Burst Pressure | 4X pressure range or 10 |
| Display Area Height | 0.5" |
| Maximum Ambient Temperature | 85°C (185°F) |
| Measurement Type | Pressure |
| Number of Display Digits | 4 |
| Wetted Materials | 316 Stainless Steel |
| Accuracy Value | ±0.25% FS ±1 digit (includes linearity |
| Display Digit Height | 0.25" |
| Maximum Storage Temperature | 95°C (203°F) |
| Minimum Storage Temperature | -40°C (-40°F) |
| Pressure Units | psia |
OMEGA’s DPG2001B Series digital pressure gauges are high accuracy battery powered gauges that include many premium functions at no extra cost. Options are available for a NEMA 4X case and backlighting. Each unit has a dual display (digital and alphanumeric), memory for 6 readings, front panel auto zero, auto shutoff from 1 minute to 8 hours, and up to 15 selectable engineering units depending upon the range.
