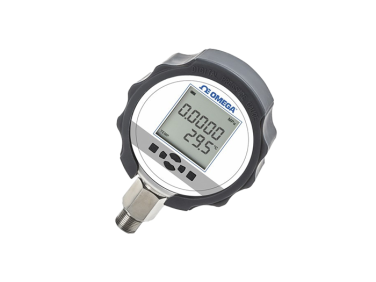

Omega Advanced, High Accuracy, Digital Pressure Gauge with Ambient Temperature
-
NG # 2247-HW-Omega-018
-
MF # DPG210-100G
Manufactured by:
Digital pressure Gauge with 5-digit display, main and auxiliary screen design · AA battery power, services more than 3600 hours
Specification
Operating Temperature
-10 to 50°C (14 to 120°F)
Storage Temperature
-20 to 60°C (-4 to 140°F)
Battery Life
3600 hours
Power
Battery (Three AA Batteries) or USB-power
Case Material
304SS
Compensation Temperature
0 ~40°C (32 to 104°F)
Display Type
LCD, 5 digits
Over pressure Limits
3X Rated Pressure from 0 to 100 psi, 2X Rated Pressure from 200 to 5000 psi.
Process Connection/Material
¼” NPT (others consult Omega Sales), 304SS
Range
-0.1 to 35 MPs (-14.50 to 5000 psi)
Temperature Accuracy
≤ 0.5C
Stability
±0.2%FS/year
Weight
0.5Kg
Burst Pressure
4X Rated Pressure from 0 to 100 psi, 3X Rated Pressure from 200 to 5000 ps
Backlight Color
White
Case Protection
IP65
Dial Size
105mm
Electric Protection
EN61326
Pressure Accuracy
± 0.05% FS
Process Media
Gas, water, oil
Sampling Rate
1-10 times/second
Description
The DPG210 features a large 55x55 mm (2.1'x2.1') LCD screen, with 5 digit 17mm primary and 13.5mm auxiliary lines. It displays both the current pressure as well as the local temperature, maximum, or minimum pressures from the reference data. Powerful functions: include 10 common pressure units and flexible power supplied by either three AA batteries or via USB connection.
An ultra-low power consumption design allows the DPG210 to run more than 3600 hours when powered by three standard alkaline AA batteries. The DPG210 is an all digital design combining a high precision ADC and high-speed microprocessor. This provides a product that is high precision, with good stability and great shock resistance.
5-point NIST calibration certificate is available and can be added to each unit for an additional cost of $150 by contacting sales. Add “-CAL-3” to the end of the part number for “NIST” option.
